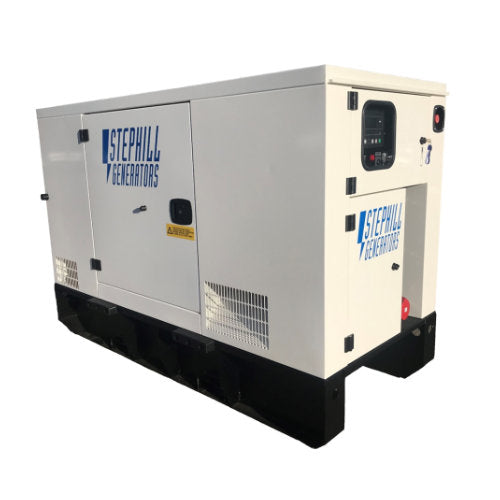

STEPHILL SSDY40V 38.5kVA / 30.8kW Generator
£33,861.00
inc VAT
(£28,217.50 ex VAT)
Key Features:
- Provides 38.5kVA / 30.8kW of power for versatile use in various applications.
- EU Stage V emission compliant engine ensures eco-friendliness and compliance with environmental regulations.
- MCCB overload protection and variable RCD protection (30mA - 30A) ensure safe and reliable power delivery.
- RCBO protection on all 230V sockets ensures maximum safety.
- Large display back-lit LCD screen shows volts, HZ, amps, kW, kVA monitoring & protection, providing real-time feedback on power output.
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
3 - 24 months personal credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
The STEPHILL SSDY40V is a highly versatile generator suitable for use in various applications, such as hire fleets, construction, outdoor events, utilities, and standby use. It features an EU Stage V emission-compliant engine that makes it perfect for rental and mobile applications. The generator is equipped with a close-fitting acoustic canopy, a fully bunded long-range tank with connections for remote fuel supply, and a comprehensive control panel with Deep Sea control system and multiple socket outlets.
The control panel is hinged for easy access and features an MCCB overload protection, variable RCD protection (30mA - 30A), and a bypass switch. The generator also comes with multiple sockets, hard wire terminals, remote start connections, and an emergency stop. Additionally, the engine monitoring system keeps track of the oil pressure, engine temperatures, and other important parameters.
The STEPHILL SSDY40V generator is built to last with a robust 5mm base with fork lift pockets, fork lift hard rubber bumpers, and an oil drain facility. It also has a large back-lit LCD screen that displays engine and generator monitoring, as well as a service hours counter with maintenance warning. The generator is compatible with remote communication (telemetry) and has a 2-wire remote start function. The Prime Power (PRP) feature allows it to supply power to varying electrical loads for unlimited hours, while the Standby Power feature allows for an approximate overload of 10% for 1 hour in 12.
The control panel is hinged for easy access and features an MCCB overload protection, variable RCD protection (30mA - 30A), and a bypass switch. The generator also comes with multiple sockets, hard wire terminals, remote start connections, and an emergency stop. Additionally, the engine monitoring system keeps track of the oil pressure, engine temperatures, and other important parameters.
The STEPHILL SSDY40V generator is built to last with a robust 5mm base with fork lift pockets, fork lift hard rubber bumpers, and an oil drain facility. It also has a large back-lit LCD screen that displays engine and generator monitoring, as well as a service hours counter with maintenance warning. The generator is compatible with remote communication (telemetry) and has a 2-wire remote start function. The Prime Power (PRP) feature allows it to supply power to varying electrical loads for unlimited hours, while the Standby Power feature allows for an approximate overload of 10% for 1 hour in 12.
Specification
Feature |
Specs |
|---|---|
| Voltage | 400/230 |
| Phase | 3 |
| Frequency | 50Hz |
| Standby Power | 38.5 kVA / 30.8 kW |
| Prime Power | 34.6 kVA / 27.7 kW |
| Alternator | Meccalte ECP32-254 C |
| AVR | DER 30 Electronic +/- 1% |
| Cooling | Water Cooled |
| Fuel tank capacity | 310 Litres |
| Displacement | 3.319 Litres |
| Autonomy 100% load | 32 Hours (9.47 L/h) |
| Autonomy 75% load | 41 Hours (7.39 L/h) |
| Autonomy 50% load | 63 Hours (4.91 L/h) |
| Autonomy 25% load | 126 Hours (2.45 L/h) |
| Rpm | 1500 |
| LWA | 90 |
| dBA @ 7M | 65 |
| dBA @ 4M | 70 |
| Fuel Consumption (100% load) | 9.47 L/h |
| Fuel Consumption (75% load) | 7.39 L/h |
| Fuel Consumption (50% load) | 4.91 L/h |
| Fuel Consumption (25% load) | 2.45 L/h |
| Engine | Yanmar 4TNV98C-IYE |
| Emissions Certified | EU Stage V Compliant |
| After Treatment | DOC & DPF |
| Cylinders | 4 |
| Combustion System | Direct Injection - Common Rail |
| Governor Type | Electronic Control |
| Aspiration | Natural |
| Net Engine power (Standby) | Not provided |
| Net Engine power (Continuous) | 35.2 kW |
| Length mm | 2150 |
| Width mm | 1050 |
| Height mm | 1580 |
| Weight Kg | 1190 |
