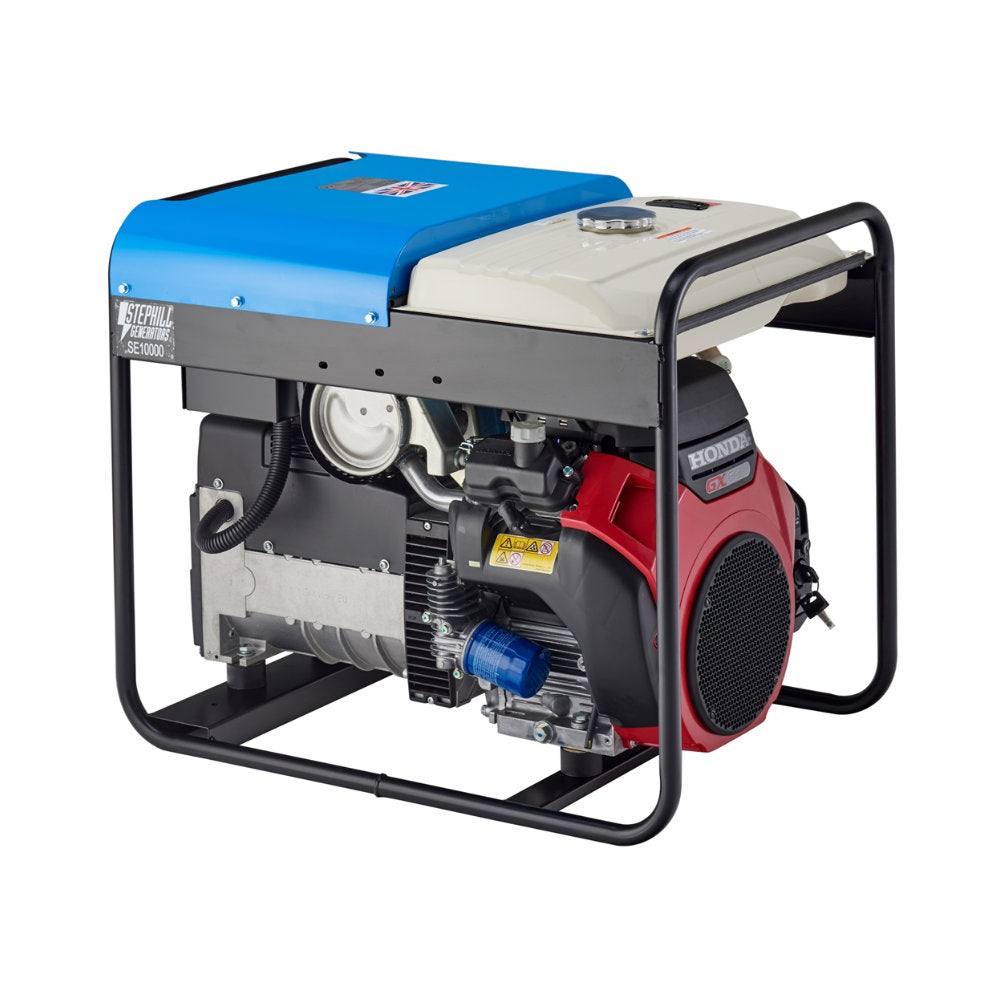

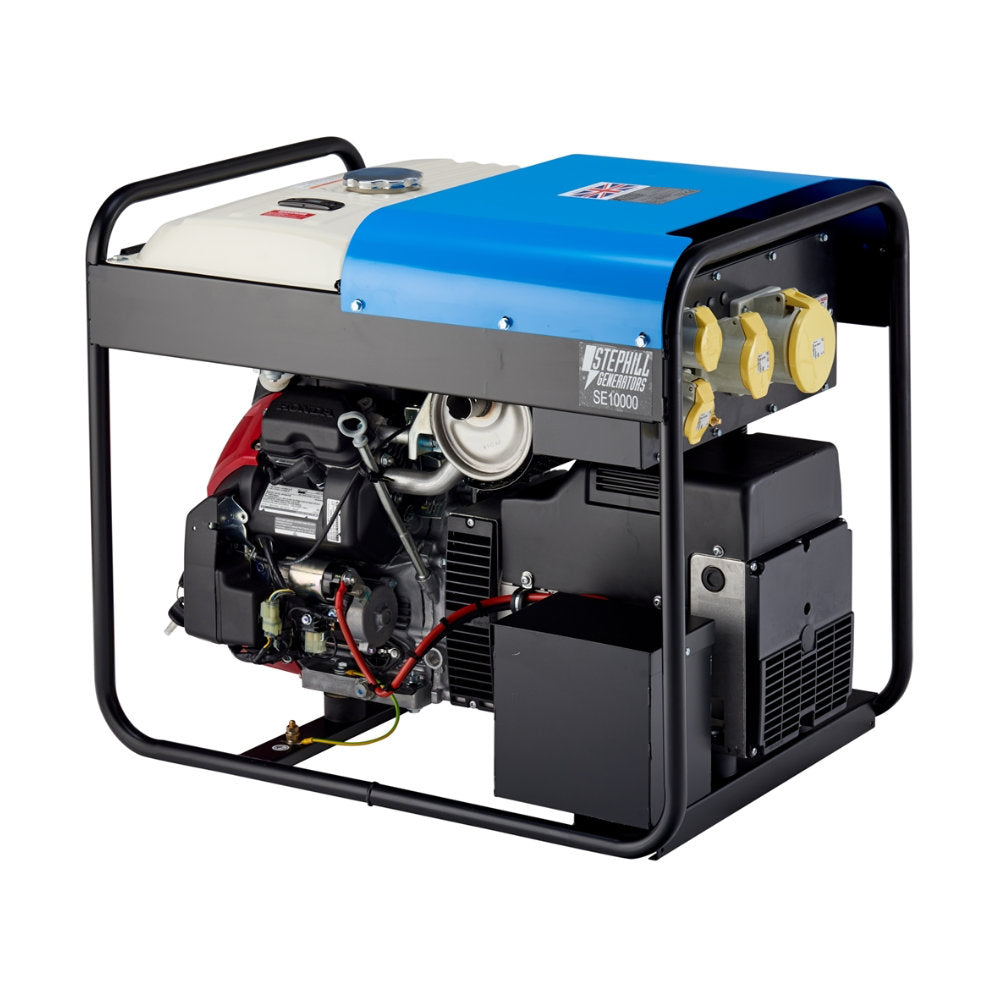

STEPHILL SE10000EC 10.0kVA / 8.0kW Welding Generator
£3,590.00
inc VAT
(£2,991.67 ex VAT)
Key Features:
- Designed for butt/fusion welding with 110/55v CTE output conforming to TIN12/ECE specs.
- Equipped with powerful Honda GX630 engine with electric start and 18.0L fuel tank.
- Provides 10.0kVA / 8.0kW power with single pole MCB overload protection and individual reset button protection for sockets.
- Compact and portable with full wrap-around frame for protection and stability, weighing 110 kg and measuring L840 x W575 x H620mm.
- Features brushless smooth waveform alternator, long run fuel tank, and 3-year engine warranty (limited).
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
3 - 24 months personal credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
Introducing the STEPHILL SE10000EC 10.0kVA / 8.0kW Welding Generator, designed specifically for butt/fusion welding applications. With a 110/55v CTE output that conforms to TIN12/ECE specifications, this generator provides reliable and stable power for all your welding needs.
Powered by a Honda GX630 engine with 2 cylinders and 20.0 horsepower, this generator has an electric start and a fuel tank capacity of 18.0 litres. The engine also features an oil alert/low oil shutdown feature, which automatically shuts off the engine when the oil level is low, preventing damage to the engine.
This generator is capable of providing 10.0kVA / 8.0kW of power and comes with two 16a 115v sockets, one 32a 115v socket, and one 63a 115v socket. It also has a single pole MCB overload protection for the 63a socket and individual reset button protection for the 32a and 16a sockets, as well as a main MCB overload protection.
With a weight of 110 kg and compact dimensions of L840 x W575 x H620mm, this generator comes with a full wrap-around frame for protection and stability during transportation. It also features a brushless smooth waveform alternator, ensuring reliable and stable power output.
Other key features of the STEPHILL SE10000EC welding generator include its long run fuel tank, conforming to TIN12/ECE3 specifications, and a 3-year engine warranty (limited).
Overall, the STEPHILL SE10000EC is a reliable and powerful welding generator, ideal for use in a variety of welding applications. It provides overload protection, features a reliable Honda GX630 engine with electric start and oil alert/low oil shutdown feature, and comes with a compact and portable design with a full wrap-around frame for protection and stability.
Powered by a Honda GX630 engine with 2 cylinders and 20.0 horsepower, this generator has an electric start and a fuel tank capacity of 18.0 litres. The engine also features an oil alert/low oil shutdown feature, which automatically shuts off the engine when the oil level is low, preventing damage to the engine.
This generator is capable of providing 10.0kVA / 8.0kW of power and comes with two 16a 115v sockets, one 32a 115v socket, and one 63a 115v socket. It also has a single pole MCB overload protection for the 63a socket and individual reset button protection for the 32a and 16a sockets, as well as a main MCB overload protection.
With a weight of 110 kg and compact dimensions of L840 x W575 x H620mm, this generator comes with a full wrap-around frame for protection and stability during transportation. It also features a brushless smooth waveform alternator, ensuring reliable and stable power output.
Other key features of the STEPHILL SE10000EC welding generator include its long run fuel tank, conforming to TIN12/ECE3 specifications, and a 3-year engine warranty (limited).
Overall, the STEPHILL SE10000EC is a reliable and powerful welding generator, ideal for use in a variety of welding applications. It provides overload protection, features a reliable Honda GX630 engine with electric start and oil alert/low oil shutdown feature, and comes with a compact and portable design with a full wrap-around frame for protection and stability.
Specification
Features |
Specs |
|---|---|
| Voltage | 110V (55V/55V) CTE |
| Engine | Honda GX630 |
| Phase | 1 |
| Emissions certified | EU Stage V |
| Frequency | 50Hz |
| Cylinders | 2 (V-twin) |
| Prime Power (PRP) | 10.0 kVA / 8.0 kW |
| Distribution | O.H.V. |
| Alternator | NSM C112 SB |
| Aspiration | Naturally aspirated |
| Alternator Type | Brushless - Smooth Waveform |
| Cooling | Air |
| Fuel tank capacity | 18.0 Litres |
| Displacement | 688 cm3 |
| Autonomy 75% load | 5.5 Hours |
| Rpm | 3000 |
| LWA | 100 |
| Starting system | Key - Electric start |
| dBA @ 7M | 75 |
| Fuel | Unleaded 86 octane or higher |
| Weight Kg | 110 |
| Length mm | 840 |
| Width mm | 575 |
| Height mm | 620 |
