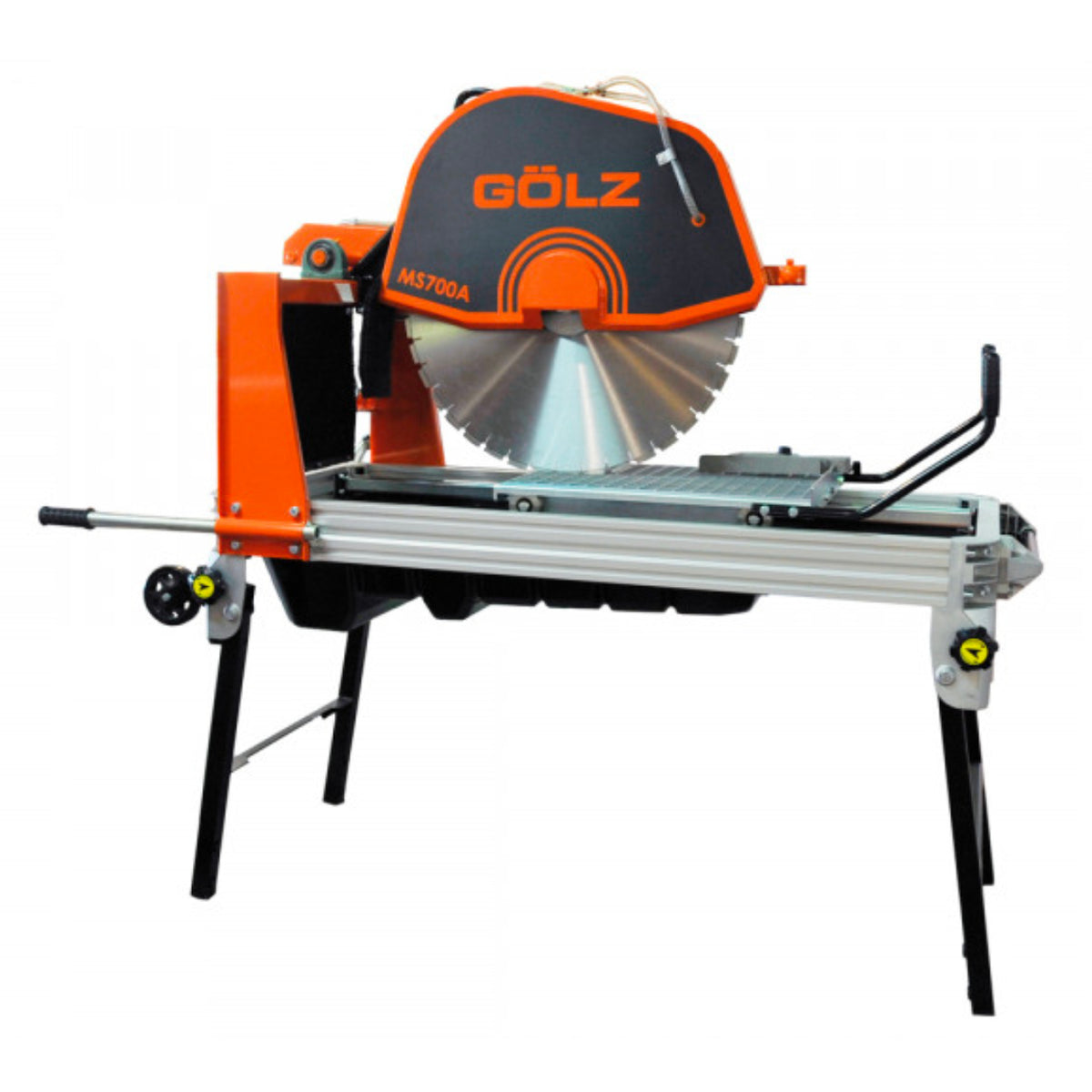

GOLZ MS 700A Masonry Saw
£3,195.00
inc VAT
(£2,662.50 ex VAT)
Key Features:
- Elastic device on cutting head for easy operation.

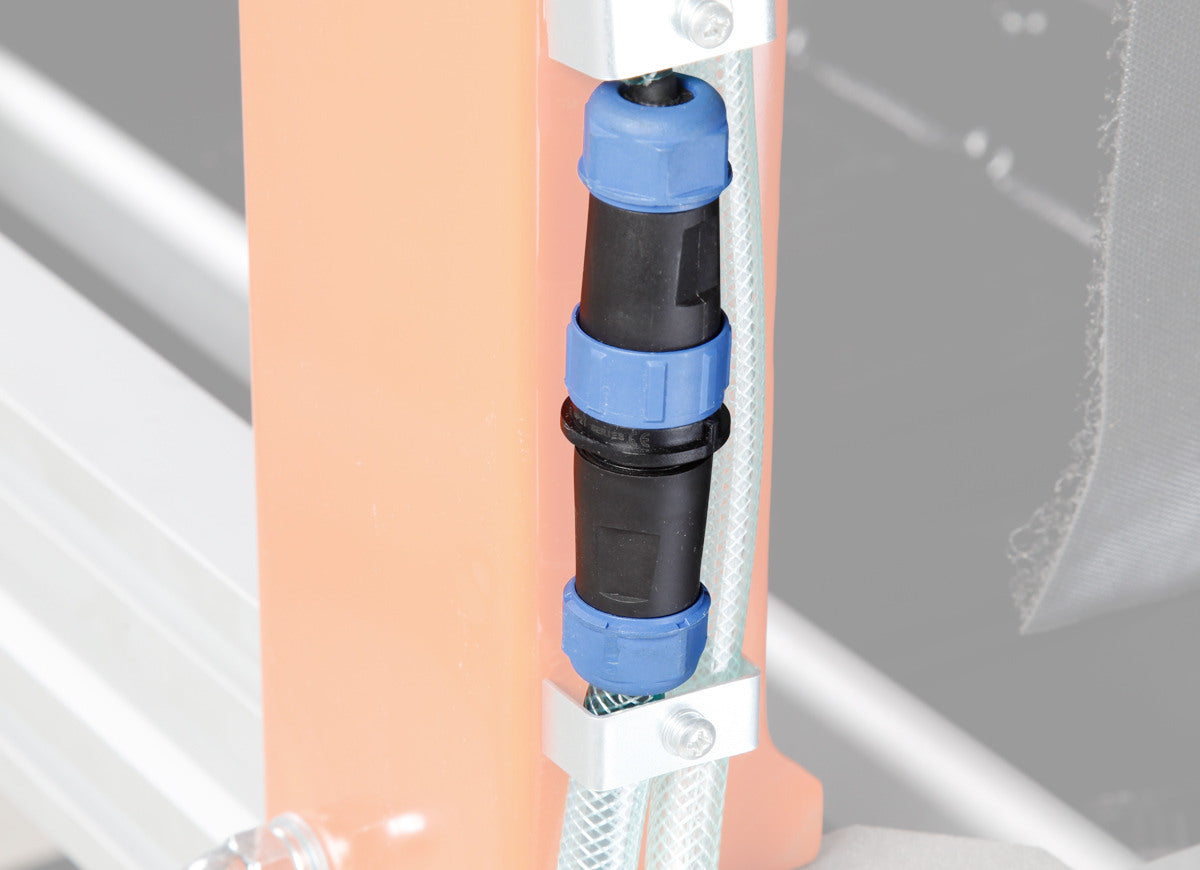

- Electric water pump with quick coupling (electrical motor version).
- High efficient mechanical water pump (Honda motor version).

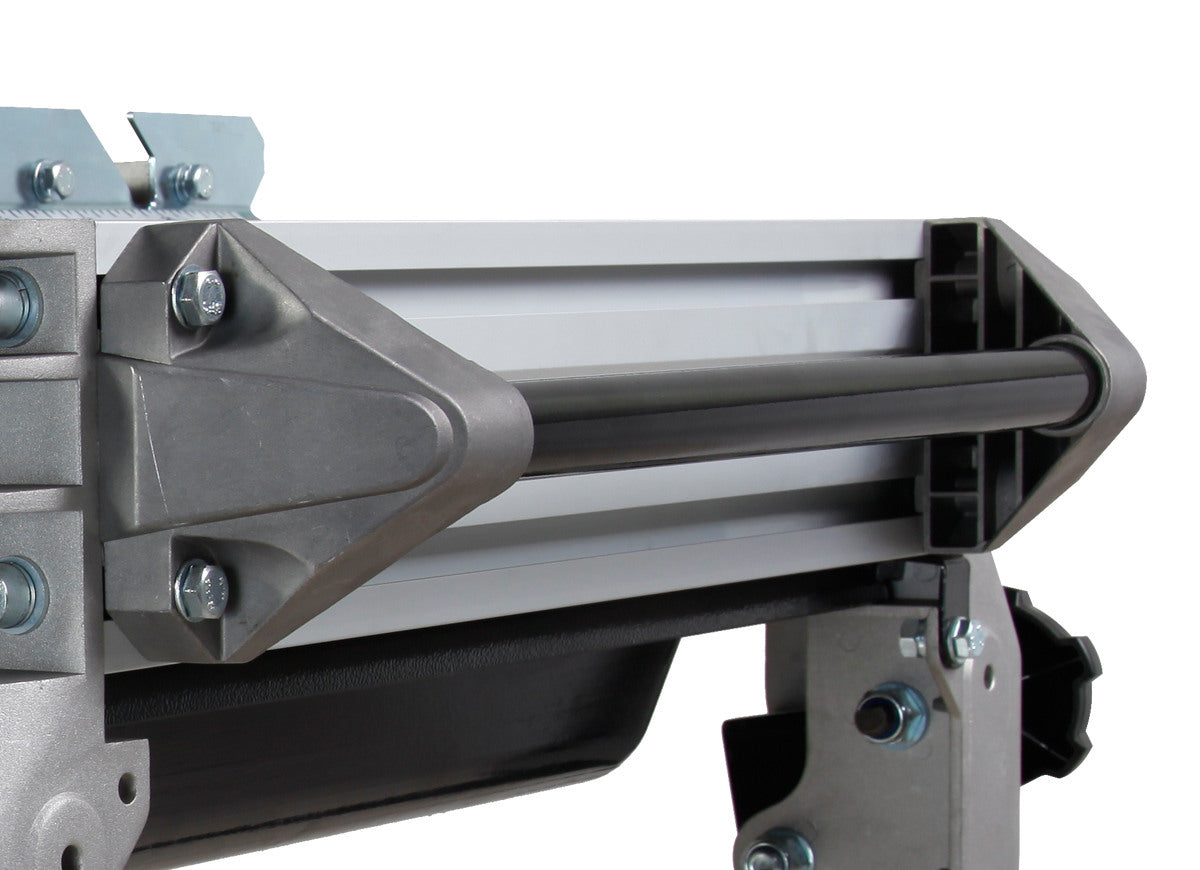

- Stronger aluminium structure for increased durability.
- Max. cutting depth up to 280 mm.
- Max. cutting length up to 800 mm.

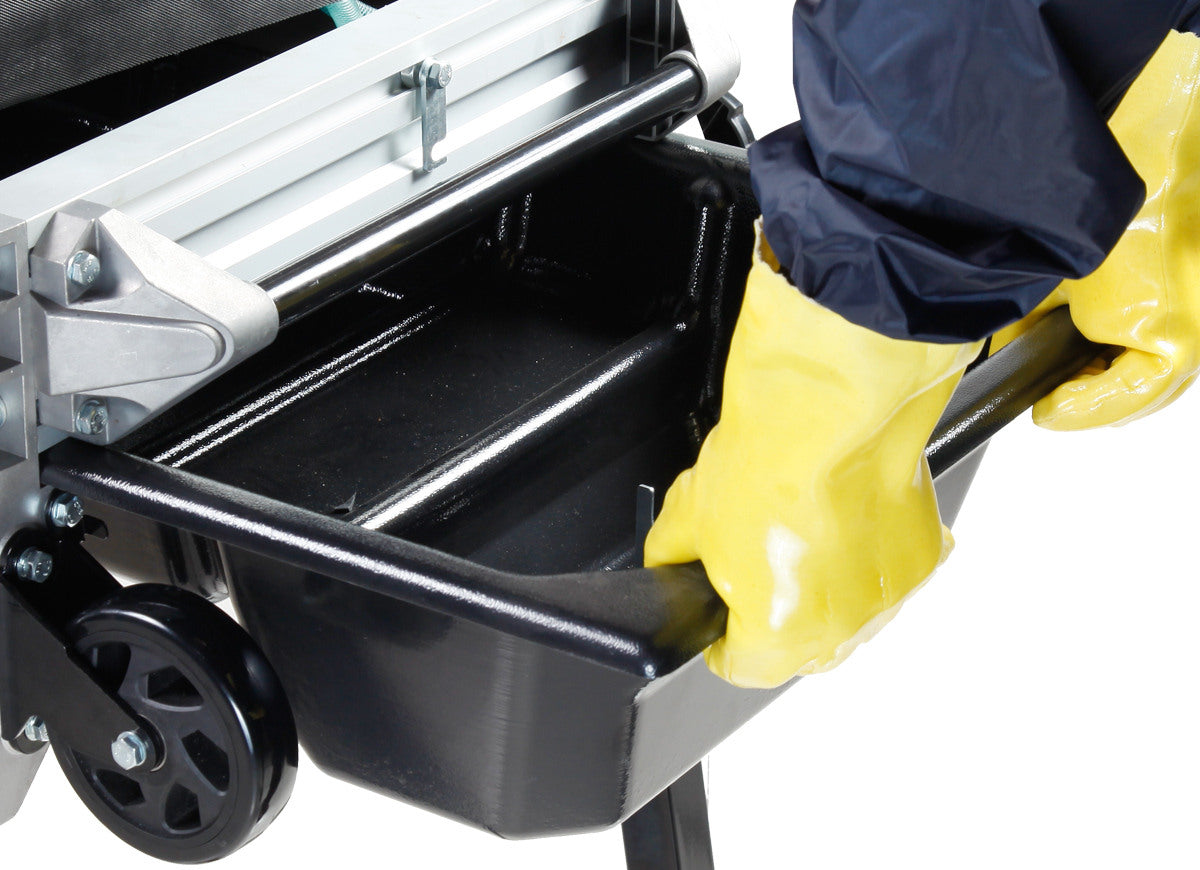

- Removable water tub for hassle-free cleaning.

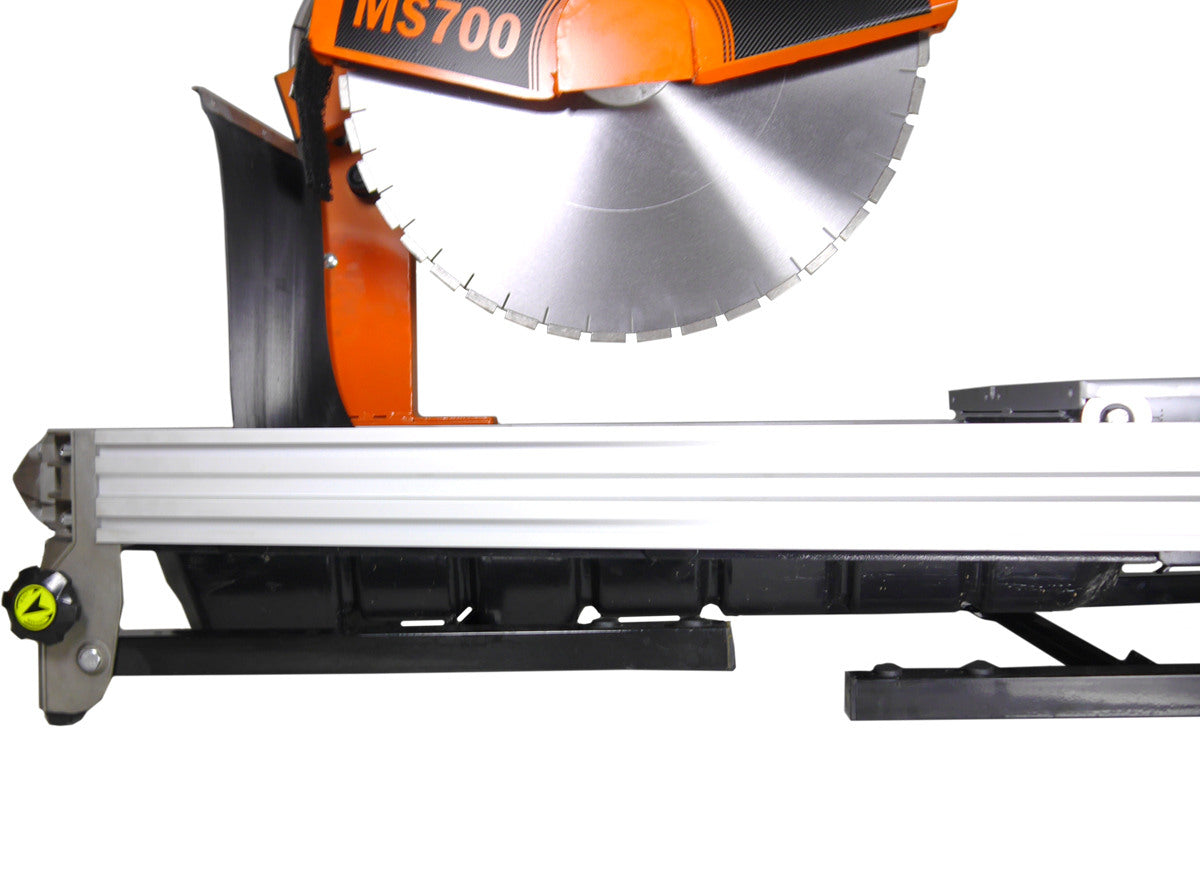

- Foldable legs for easy storage and transportation.
- Removable blade guard for simple blade changes.

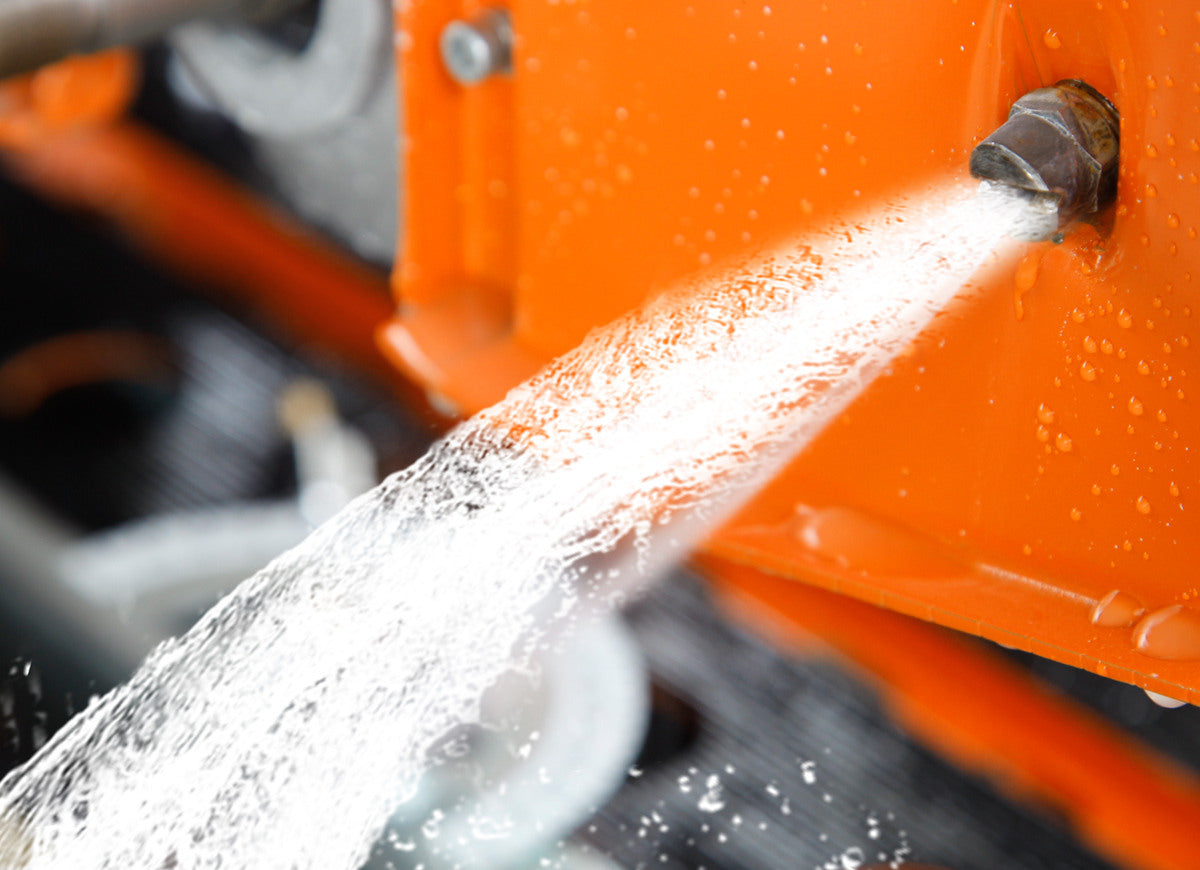

- Special water nozzle for optimal water cooling.
- Transportation wheel for easy mobility.
- Crane eye for additional handling options.
- Available in two models: 650 mm and 800 mm cutting length.
- Blade diameter: 700 mm.
- Motor: 230 V, 50 Hz, IP54 / 400 V, 50 Hz, IP54.
- Power: 2.2 kW (230 V model) / 4 kW (400 V model).
- Arbor hole: 30 mm.
- Shaft speed: 1,450 min-1.
- Water pump: S2, 230 V, 50 Hz, 55 Watt.
- Blade flange size: ø 140 mm.

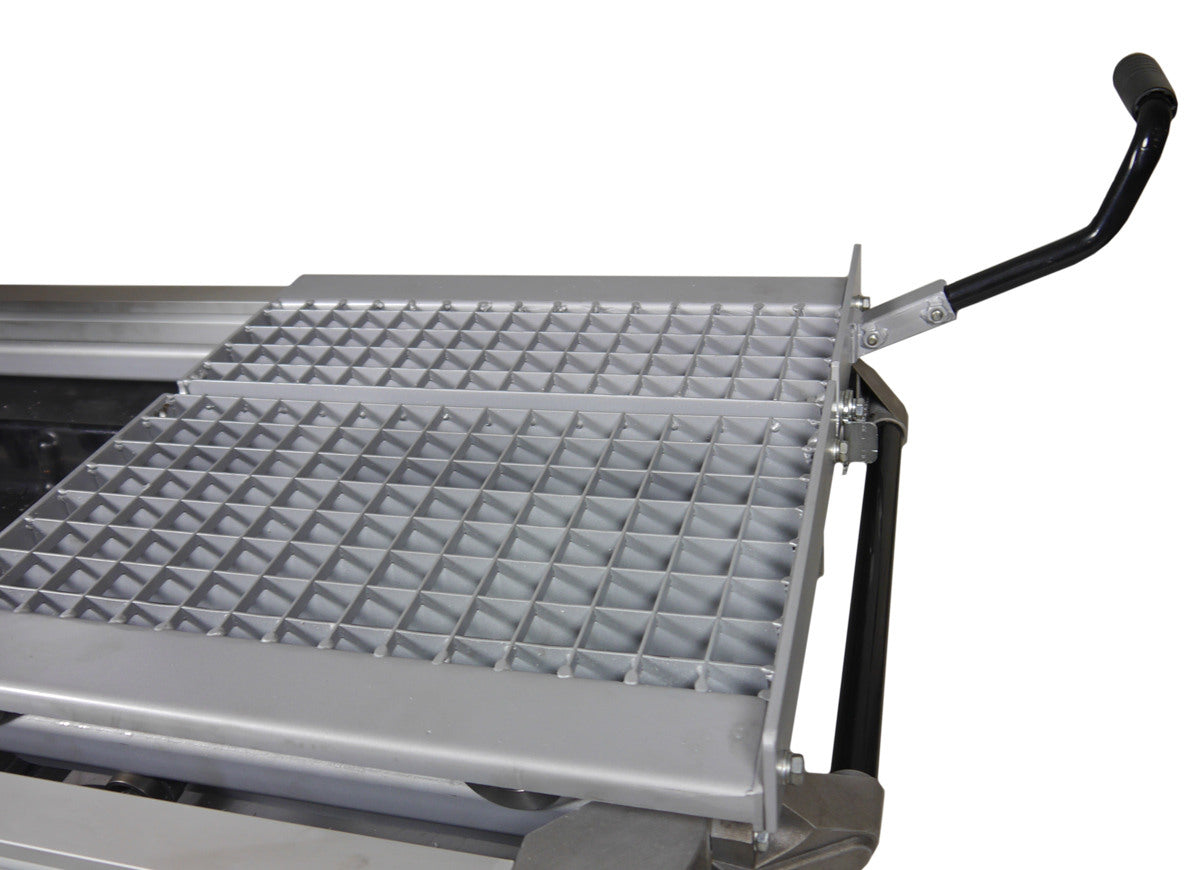

- Cutting table dimensions: 510 × 540 mm.
- Overall dimensions: 1,630 × 760 × 1,600 mm.
- Weight: 125 kg.
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
The cutting head, designed with an elastic device, offers exceptional ease of operation for both professionals and enthusiasts alike. This cutting head is paired with an electric water pump featuring quick coupling, simplifying the process of changing the pump for the electrical motor version. For those opting for the Honda motor version, the high efficient mechanical water pump ensures reliable performance. The aluminium structure of the machine is notably stronger, enhancing its durability and lifespan. The cutting head can achieve a maximum cutting depth of up to 280mm, along with a maximum cutting length of up to 800 mm, making it suitable for a wide range of cutting tasks.
Ease of use and maintenance are key features of this cutting head. It includes a removable water tub for easy cleaning and foldable legs for convenient storage and transport. The blade guard is also removable, facilitating easy blade changes. A special water nozzle ensures optimized water cooling, and the addition of a transportation wheel makes moving the machine effortless. The crane eye feature adds another layer of versatility, particularly for more demanding tasks. The cutting head is available in two models: one with a cutting length of 650 mm and another with 800 mm, both accommodating a blade diameter of 700 mm and offering a cutting depth of 280 mm.
Ease of use and maintenance are key features of this cutting head. It includes a removable water tub for easy cleaning and foldable legs for convenient storage and transport. The blade guard is also removable, facilitating easy blade changes. A special water nozzle ensures optimized water cooling, and the addition of a transportation wheel makes moving the machine effortless. The crane eye feature adds another layer of versatility, particularly for more demanding tasks. The cutting head is available in two models: one with a cutting length of 650 mm and another with 800 mm, both accommodating a blade diameter of 700 mm and offering a cutting depth of 280 mm.
Specification
| Motor | 230 V, 50 Hz, IP54 | 400 V, 50 Hz, IP54 |
| Power | 2,2 kW | 4 kW |
| Max. cutting depth | 280 mm | 280 mm |
| Max. blade size | 700 mm | 700 mm |
| Arbor hole | 30 mm | 30 mm |
| Cutting length | 650 mm (280 mm material height) | 650 mm (280 mm material height) |
| 800 mm (50 mm material height) | 800 mm (50 mm material height) | |
| Shaft speed | 1.450 min-1 | 1.450 min-1 |
| 45° miter-cut | no | no |
| Water pump | S2, 230 V, 50 Hz, 55 Watt | S2, 230 V, 50 Hz, 55 Watt |
| Blade flange size ø | 140 mm | 140 mm |
| Transport wheels | no | no |
| Cutting table (LxW) | 510 × 540 mm | 510 × 540 mm |
| Dimensions: (LxWxH) | 1.630 × 760 × 1.600 mm | 1.630 × 760 × 1.600 mm |
| Weight | 125 kg | 125 kg |
| Order-Nr. | 0289 700 2020 | 0289 700 2040 |
