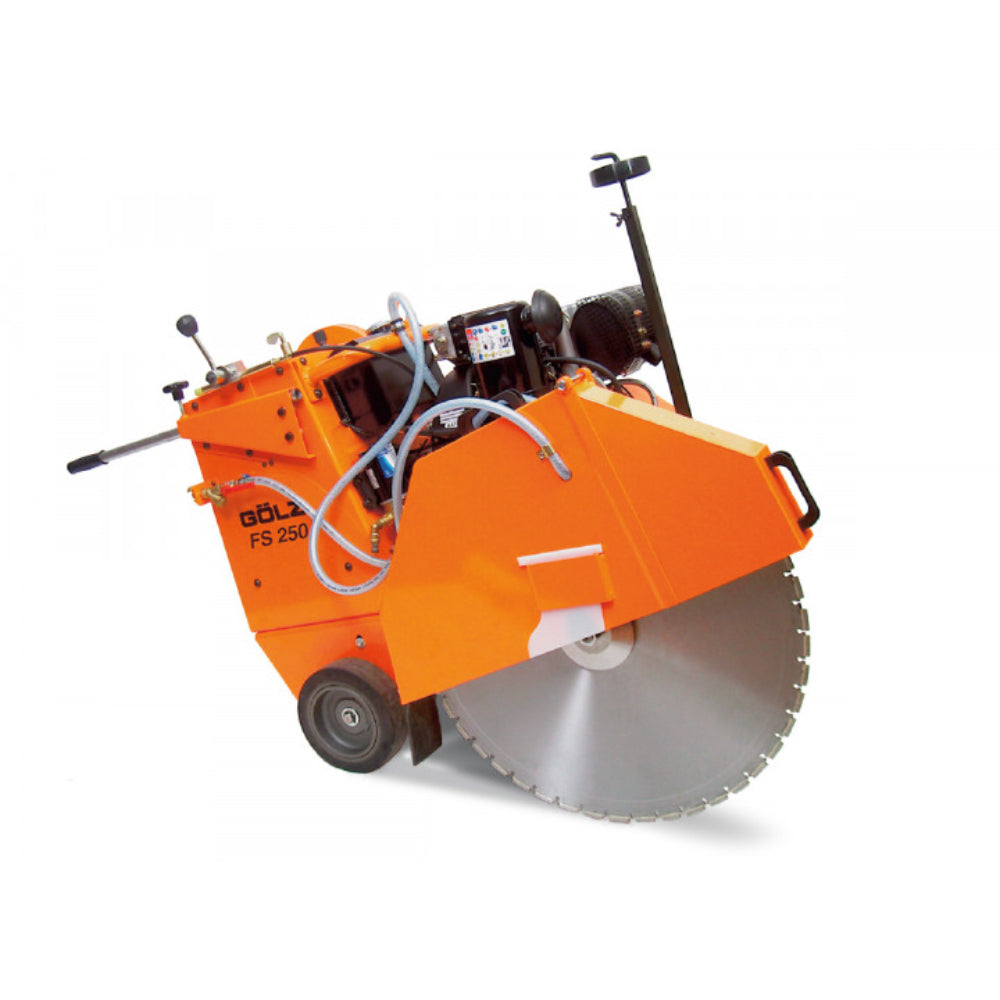

GOLZ FS 250 B/D Self-Propelled Walk Behind Floor Saw
Key Features:
- Engine Options: Choose between the 25HP Honda GX690 gas engine and the 20HP Hatz 2G40 diesel engine.
- Operator Convenience: Adjustable handle bars, user-friendly control panel, and an ergonomically designed system ensures that operators can work comfortably and efficiently.
- Precision and Control: The continuously adjustable cutting depth, paired with a cutting depth indicator and electro-hydraulic blade depth control, ensures accuracy in every cut. Additionally, rapid blade lifting is facilitated by the electro-hydraulic mechanism.
- Versatility: Features right- and left-hand cutting and a divisible blade guard, which can be raised during intersections.
- Safety and Mobility: With the electro-hydraulic drive, the saw can be moved without the blade running, ensuring user safety. Additionally, it comes equipped with a lifting eye for easy handling.
- Durability: Boasts a well-balanced chassis that not only promotes optimum cutting performance but also extends the equipment's lifespan.
This product is available on request. Contact us for price and availability.
Request A QuotePayment Options Available
100% secure payment by:
- Bank Transfer
Description
GOLZ FS 250 B/D Self-Propelled Walk Behind Floor Saw (FS 250 B/D)
This is a powerhouse of a walk-behind saw, tailor-made for the heavy-duty tasks involving asphalt and concrete cutting. Whether it's powered by a formidable Honda gas engine or the resilient Hatz diesel engine, the FS 250 B/D offers nothing short of top-tier performance. With the ability to accommodate a blade of up to 800 mm in diameter, it promises an impressive cutting depth of 310 mm.
Specifications:
For contractors who prioritize performance, durability, and operator comfort, the GOLZ FS 250 B/D Self-Propelled Walk Behind Floor Saw stands out as an exceptional choice.
This is a powerhouse of a walk-behind saw, tailor-made for the heavy-duty tasks involving asphalt and concrete cutting. Whether it's powered by a formidable Honda gas engine or the resilient Hatz diesel engine, the FS 250 B/D offers nothing short of top-tier performance. With the ability to accommodate a blade of up to 800 mm in diameter, it promises an impressive cutting depth of 310 mm.
Specifications:
- Max Cutting Depth: 310 mm
- Blade Diameter: 800 mm
- Shaft Size: 25,4 mm
- Water Connection: Integrated water pump
- Shaft Speed: 1,600 min^-1 for FS 250 B (Honda) and 1,450 min^-1 for FS 250 D (Hatz)
- Feed Motion: Electro-hydraulic drive
- Cutting Depth Adjustment: Continuously adjustable
- V-Belt Tension: Self-adjusting belt tensioner
- Dimensions: Measures a compact 1340×880×1040 mm.
- Weight: 285 kg for FS 250 B (Honda) and 346 kg for FS 250 D (Hatz)
For contractors who prioritize performance, durability, and operator comfort, the GOLZ FS 250 B/D Self-Propelled Walk Behind Floor Saw stands out as an exceptional choice.
Specification
| Gölz FS 250 B | Gölz FS 250 D | |
| Max Cutting depth | 310 mm | 310 mm |
| Blade diameter | 800 mm | 800 mm |
| Shaft size | 25,4 mm | 25,4 mm |
| Water-connection | Integrated waterpump | Integrated waterpump |
| Engine | Honda GX690 | Hatz 2G40 |
| Engine power (net power) | 25HP/18,5kW (22HP/16,5kW) | 20HP/14,7kW |
| Shaft speed | 1.600 min-1 | 1.450 min-1 |
| Feed motion | Electro-hydraulic drive | Electro-hydraulic drive |
| Blade depth control | Electro-hydraulic | Electro-hydraulic |
| Cutting depth adjustment | Continuosly adjustable | Continuosly adjustable |
| V-Belt tension | Self-adjusting belt tensioner | Self-adjusting belt tensioner |
| Dimensions (LxWxH) | 1340×880×1040 mm | 1340×880×1040 mm |
| Weight | 285 kg | 346 kg |
