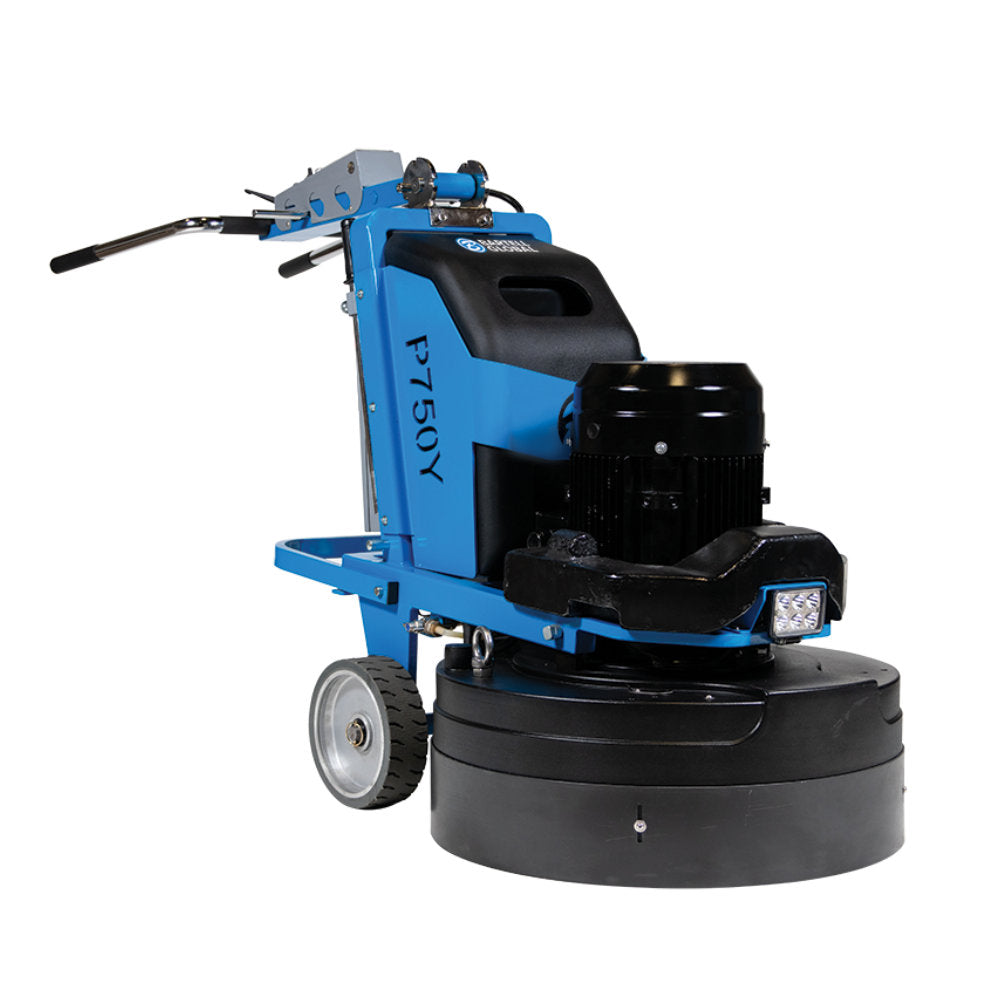

Bartell P750Y Planetary Grinder
(£9,162.50 ex VAT)
Key Features:
- 30" (750 mm) grinding width with precision-balanced 3-head planetary design
- 15 HP (11.2 kW) three-phase motor for powerful and consistent performance
- Variable speed control (0–1800 RPM) for maximum versatility
- Forward and reverse grinding for full surface control
- Heavy-duty steel frame designed for long-term reliability
- Integrated water tank for wet and dry grinding applications
- Easy on-site maintenance and repair using standard tools
- Slide-MAG or 3-hole tooling plates for fast tool changes
- Adjustable handle height for operator comfort
- Bright LED work light for improved visibility
- Adjustable dust skirt for clean, compliant dust management
- Integrated lift points for transport and positioning
- Includes 99 lbs (45 kg) additional weight for added grinding pressure
- Compatible with Bartell HD HEPA Dust Extraction Systems
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
3 - 24 months personal credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
The Bartell P750Y is a high-performance 30-inch (750 mm) planetary concrete grinder, built for maximum productivity, precision, and reliability on large commercial and industrial projects. Designed to handle demanding surface preparation and polishing work, the P750Y combines exceptional power, control, and ease of use within a robust, heavy-duty construction.

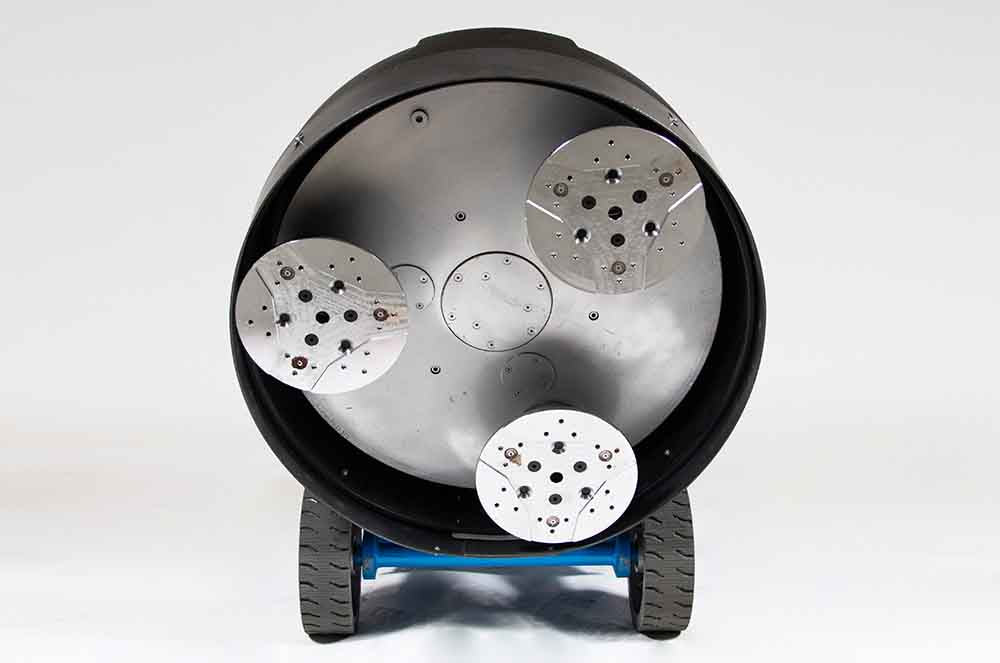

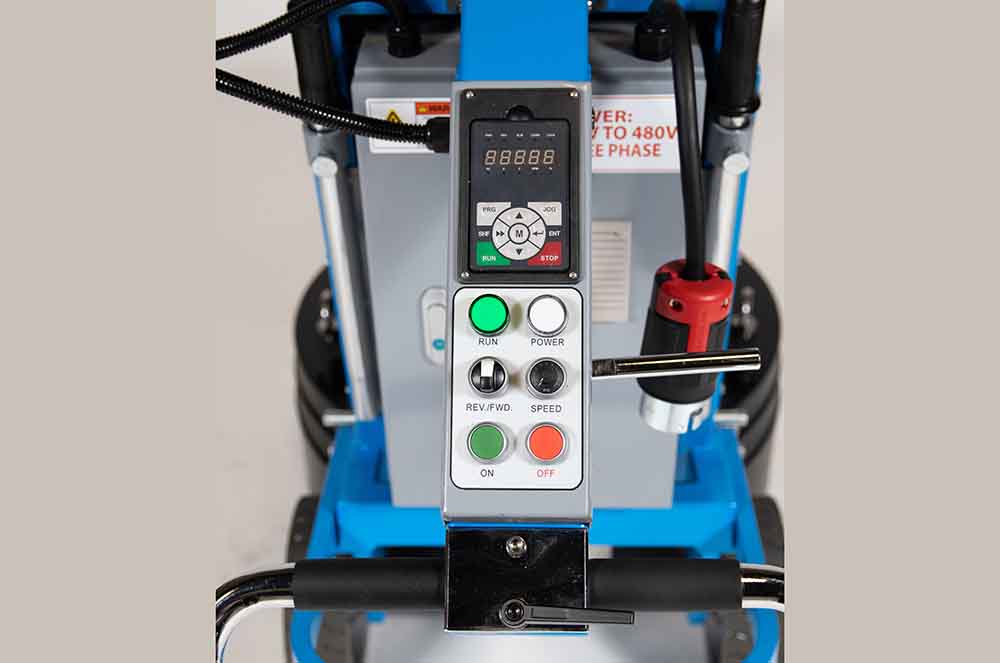

Equipped with a powerful 15 HP (11.2 kW) 480V three-phase motor, the P750Y delivers consistent, high-torque grinding performance across a wide range of applications. Its 3-head precision-balanced planetary system ensures a smooth, even surface finish while maintaining superior operator control. The variable speed control allows adjustment from 0–1800 RPM, with forward and reverse grinding functions for enhanced versatility.
Built for durability and convenience, the P750Y includes a heavy-duty steel frame, integrated water tank, and Slide-MAG or standard 3-hole tooling plates for quick and secure tool changes. The adjustable handle height, integrated lift points, and bright LED work light make handling and operation easy in all conditions.
For optimal dust management, the grinder pairs perfectly with Bartell’s HD HEPA-filter dust extraction system, providing a cleaner and safer working environment. An additional 99 lbs (45 kg) of weight is included for increased grinding pressure, while the adjustable dust skirt ensures effective dust containment during operation.
Specification
| Feature | Specification |
|---|---|
| Model | P750Y |
| Motor / Engine | 480V, 3-Phase |
| Current Draw | 22.3A |
| Power Output | 15 HP (11.2 kW) |
| Frequency | 60 Hz |
| Plug Type | 50A, CS8265C Twist Lock |
| Motor / Engine RPM | 0 – 1800 |
| Grinding Head RPM | 0 – 1800 |
| Planetary Plate RPM | 0 – 380 |
| Grinding Width | 29.5" (75 cm) |
| Head Diameter | 9.8" (25 cm) |
| Length | 38.2" (97 cm) |
| Width | 29.5" (75 cm) |
| Height | 41.3" (105 cm) |
| Weight | 726 lbs (330 kg) |
| Included Weight | 99 lbs (45 kg) |
| Water Tank | Integrated |
| Lighting | LED work light |
| Dust Skirt | Adjustable |
| Lift Points | Integrated |
| Tooling System | Slide-MAG or 3-hole bolted plate |
| Recommended Use | Large commercial and industrial surface preparation, polishing |
| Compatibility | HD HEPA Dust Extraction System |
