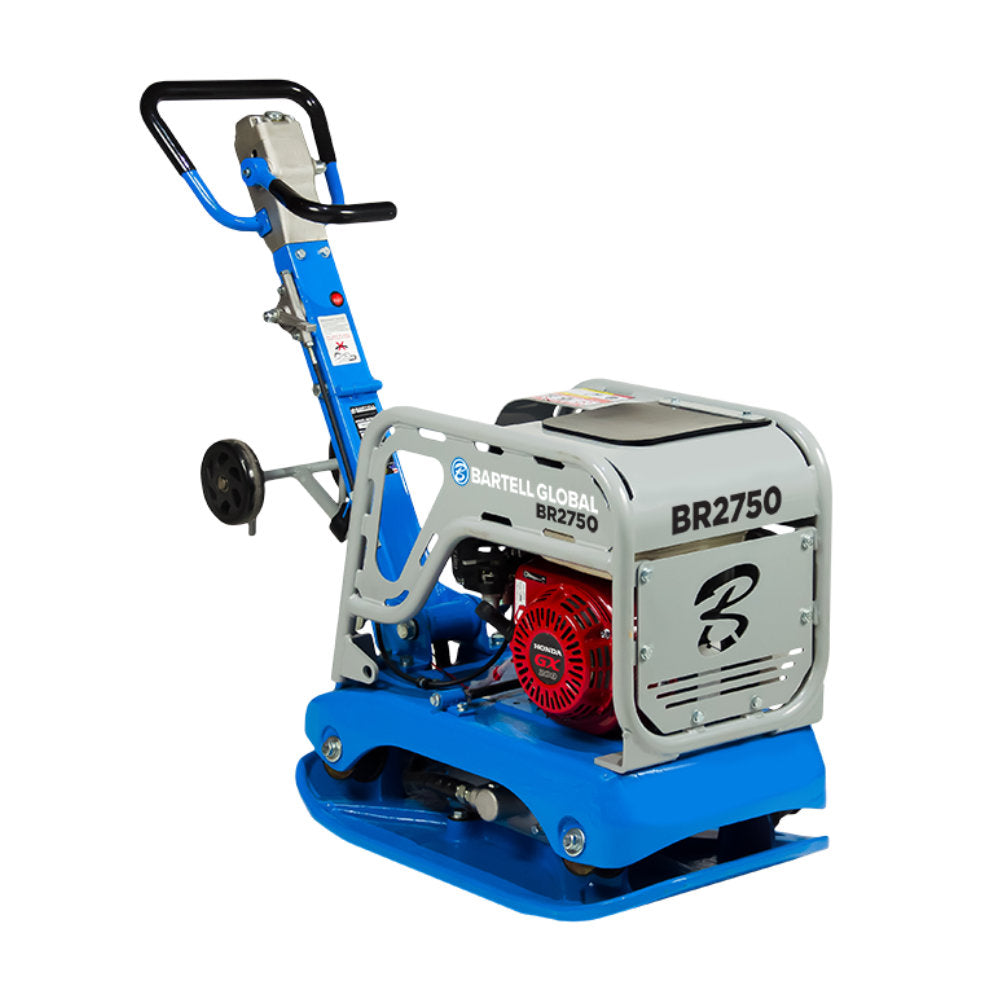

Bartell BR2750 Reversible Plate Compactor
(£2,415.83 ex VAT)
Key Features:
- Honda GX200 engine (5.5 HP / 4.1 kW) for reliable power and efficiency
- 6,063 lbf (27 kN) compaction force for high-performance results
- Fully hydraulic reversing mechanism for flexible control and spot compaction
- Cast aluminum throttle lever for durability and precision handling
- Integrated lifting bale for safe loading and transport
- Full roll cage and aluminum belt cover for component protection
- Ductile iron base plate for maximum strength and stability
- Retractable wheels for easy site mobility
- Full-speed operation in forward and reverse
- Optional urethane mat for paver and slab protection
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
3 - 24 months personal credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
The Bartell BR2750 is a powerful, compact, and highly maneuverable reversible plate compactor built for professional contractors who demand efficiency, reliability, and precision. Designed for general compaction needs — from sand and trench work to patching and paving — it combines exceptional control with heavy-duty performance in a portable format.

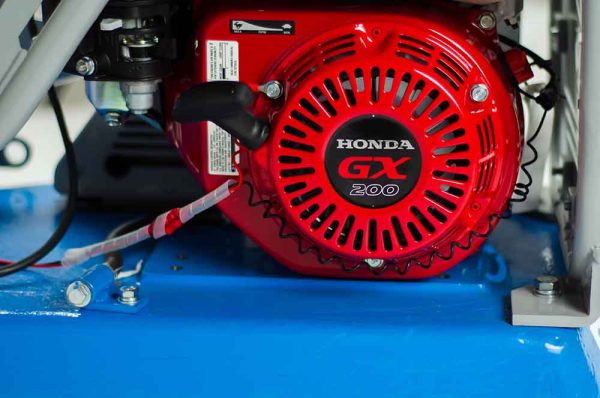

Powered by a Honda GX200 5.5 HP (4.1 kW) engine, the BR2750 delivers a formidable 6,063 lbf (27 kN) of compaction force. Its fully hydraulic reversing mechanism enables effortless forward, reverse, and on-the-spot compaction for maximum productivity and ease of use in confined areas.
The BR2750 features a cast aluminum throttle lever for long-lasting professional control, a full roll cage and cast aluminum belt cover for clutch and engine protection, and a ductile iron base plate for strength and durability. The integrated lifting bale ensures safe and easy transport, while retractable wheels provide mobility between job sites.
For paver applications, an optional urethane mat allows for smooth operation without scratching or damaging surfaces. With full operating speed in both directions and a compact design, the BR2750 is built for reliability and performance across diverse ground conditions.
Specification
| Feature | Specification |
|---|---|
| Model | BR2750 |
| Engine Type | Honda GX200 |
| Power Output | 5.5 HP (4.1 kW) |
| Compaction Force | 6,063 lbf / 27 kN / 2,750 kgf |
| Maximum Travel Speed | 65 ft/min (20 m/min) |
| Length | 45" (114 cm) |
| Width | 17" (43 cm) |
| Height | 36" (91 cm) |
| Weight | 335 lbs (152 kg) |
| Plate Size | 17" x 28" (43 x 70 cm) |
| Reversing Mechanism | Fully hydraulic |
| Handle Type | Heavy-duty with aluminum throttle lever |
| Frame | Full roll cage |
| Housing | Cast aluminum belt cover |
| Base Plate | Ductile iron construction |
| Lifting Point | Integrated lifting bale |
| Mobility | Retractable transport wheels |
| Optional Accessory | Urethane mat for pavers |
| Recommended Use | Sand, trenches, patching, asphalt, pavers |
| Engine Manufacturer | Honda |
