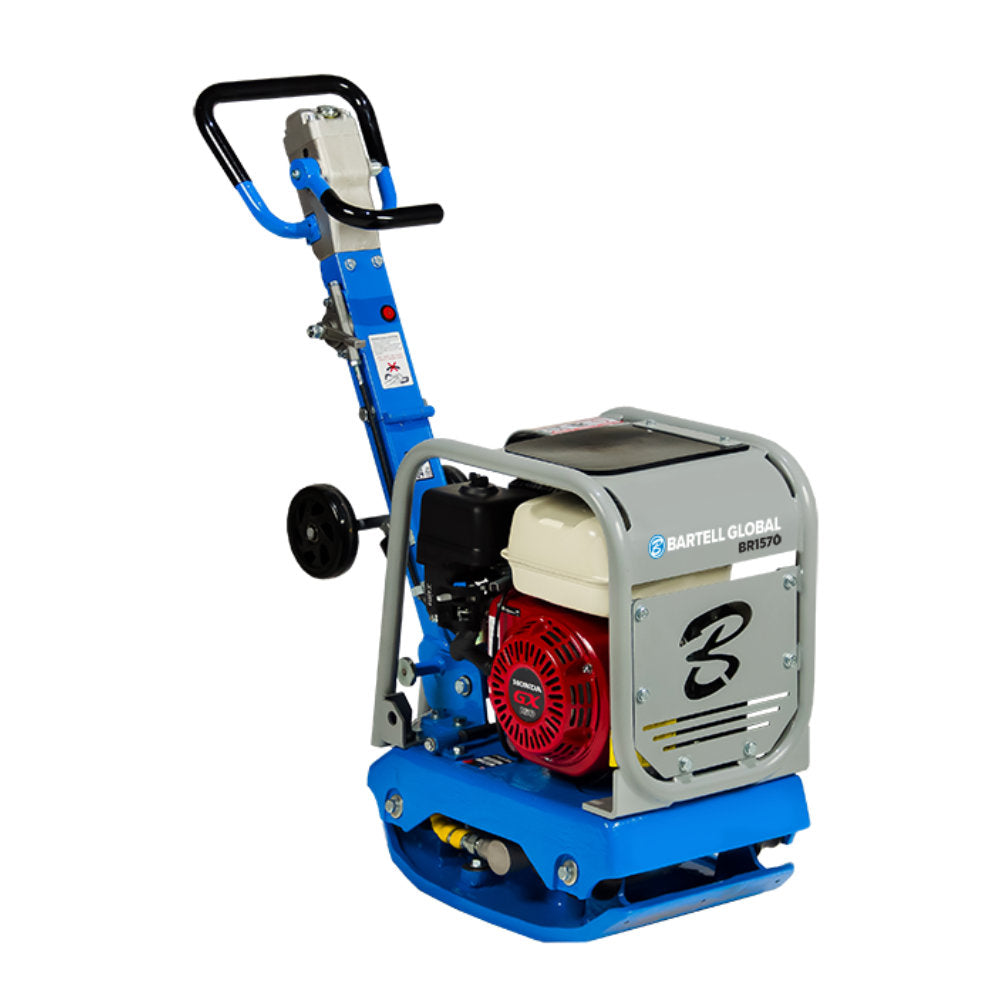

Bartell BR1570 Reversible Plate Compactor
(£1,763.33 ex VAT)
Key Features:
- Honda GX160 4.8 HP (3.6 kW) engine for dependable power and efficiency
- 3,461 lbf (15 kN) compaction force with full forward and reverse operation
- Fully hydraulic reversing mechanism for precise directional control
- Cast aluminum throttle lever for long-lasting professional control
- Integrated lifting bale for safe loading and unloading
- Full roll cage and aluminum belt cover for component protection
- Ductile iron base plate increases durability and strength
- Retractable wheels for convenient transport
- Optional urethane mat for paver and slab protection
- Compact, versatile design ideal for trenches, patching, and sand compaction
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
3 - 24 months personal credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
The Bartell BR1570 is a compact, high-performance reversible plate compactor designed for professional contractors who need maneuverability, precision, and reliability in tight or medium-sized job sites. As Bartell’s smallest reversible model, it offers a perfect balance of power, control, and productivity — allowing operators to achieve faster compaction results without increasing investment costs.

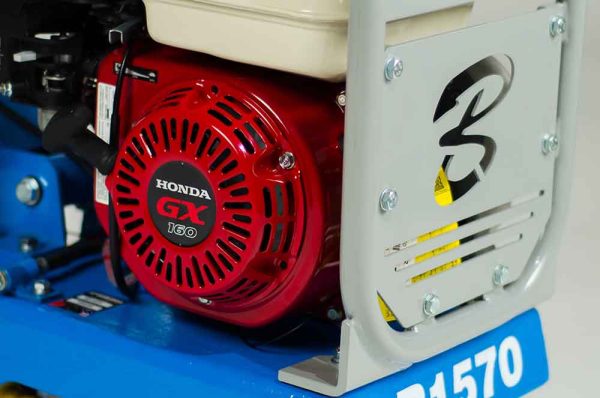

Powered by the dependable Honda GX160 4.8 HP (3.6 kW) engine, the BR1570 delivers 3,461 lbf (15 kN) of compaction force and full speed operation in both forward and reverse directions. The fully hydraulic reversing mechanism provides smooth, precise directional control for spot, trench, and confined area compaction.
Built for durability, the BR1570 features a cast aluminum throttle lever, full roll cage, and cast aluminum belt cover to protect the clutch and engine. The ductile iron base plate increases strength and longevity, while the integrated lifting bale ensures safe transport. Retractable transport wheels make it easy to move between work areas, and an optional urethane mat allows safe operation on pavers without risk of damage.
Compact yet powerful, the BR1570 is ideal for contractors seeking professional-grade compaction performance in a versatile and easy-to-handle machine.
Specification
| Feature | Specification |
|---|---|
| Model | BR1570 |
| Engine Type | Honda GX160 |
| Power Output | 4.8 HP (3.6 kW) |
| Compaction Force | 3,461 lbf / 15 kN / 1,570 kgf |
| Maximum Travel Speed | 65 ft/min (20 m/min) |
| Length | 35" (88 cm) |
| Width | 14" (35 cm) |
| Height | 35" (88 cm) |
| Weight | 193 lbs (87.5 kg) |
| Plate Size | 14" x 19" (35 x 48 cm) |
| Reversing Mechanism | Fully hydraulic |
| Handle Type | Heavy-duty with aluminum throttle lever |
| Frame | Full roll cage |
| Housing | Cast aluminum belt cover |
| Base Plate | Ductile iron construction |
| Lifting Point | Integrated lifting bale |
| Mobility | Retractable transport wheels |
| Optional Accessory | Urethane mat for pavers |
| Recommended Use | Sand, trenches, patching, confined areas |
| Engine Manufacturer | Honda |
