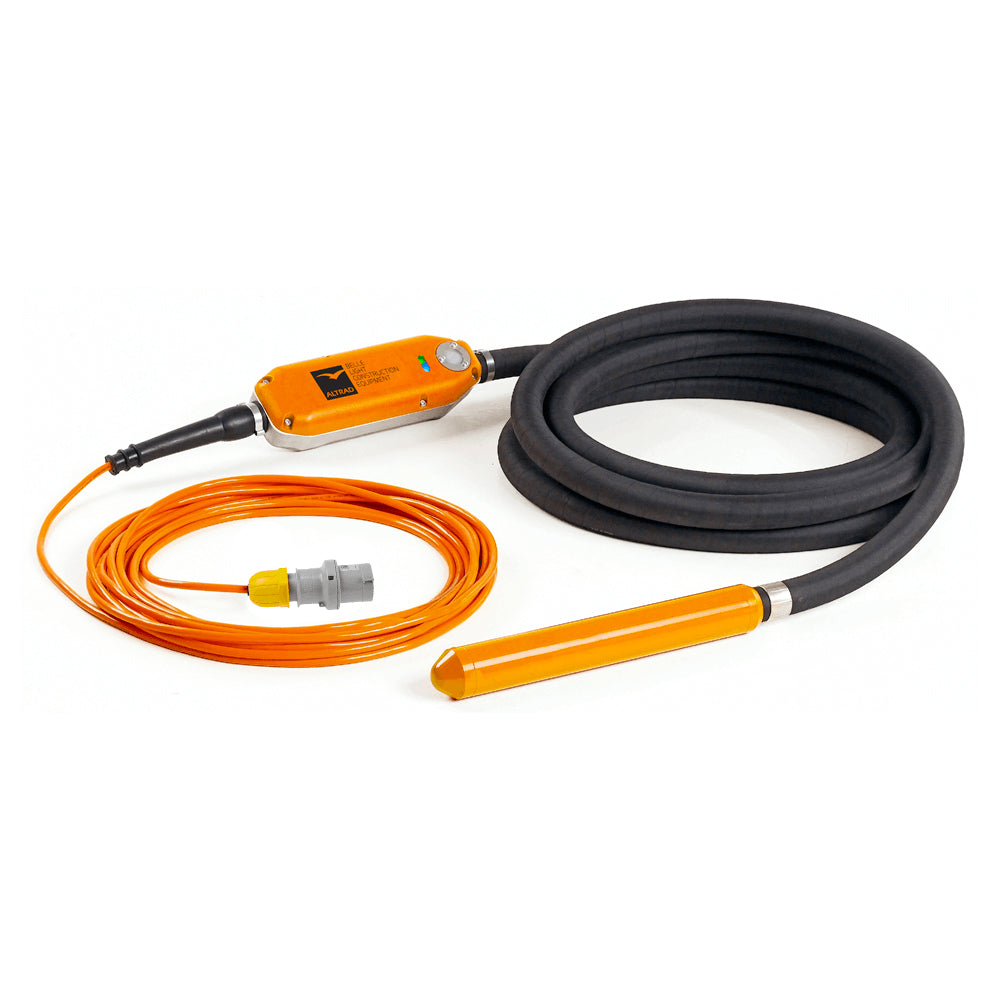

Altrad Belle Vibratech+ High Frequency Pokers - 110V
(£1,255.83 ex VAT)
Key Features:
- 7m or 10m abrasion-resistant hose to poker head available
- 15m of cable to switch for long reach from the power supply
- Simple and sturdy design provides a very reliable operation
- Long life motor requires virtually no maintenance

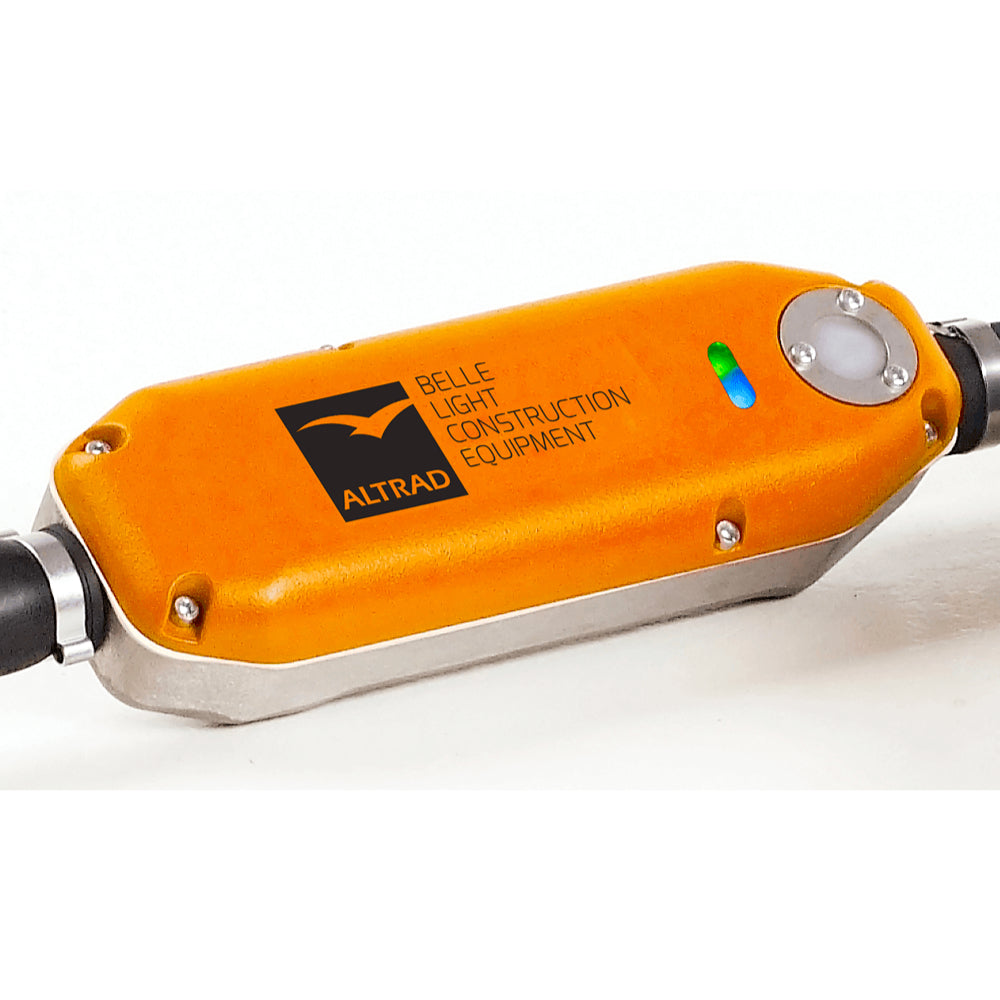

- Die-cast moulded aluminium housing with chamfered edges and LED operation/fault display
- Environmentally friendly produces no emissions
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description

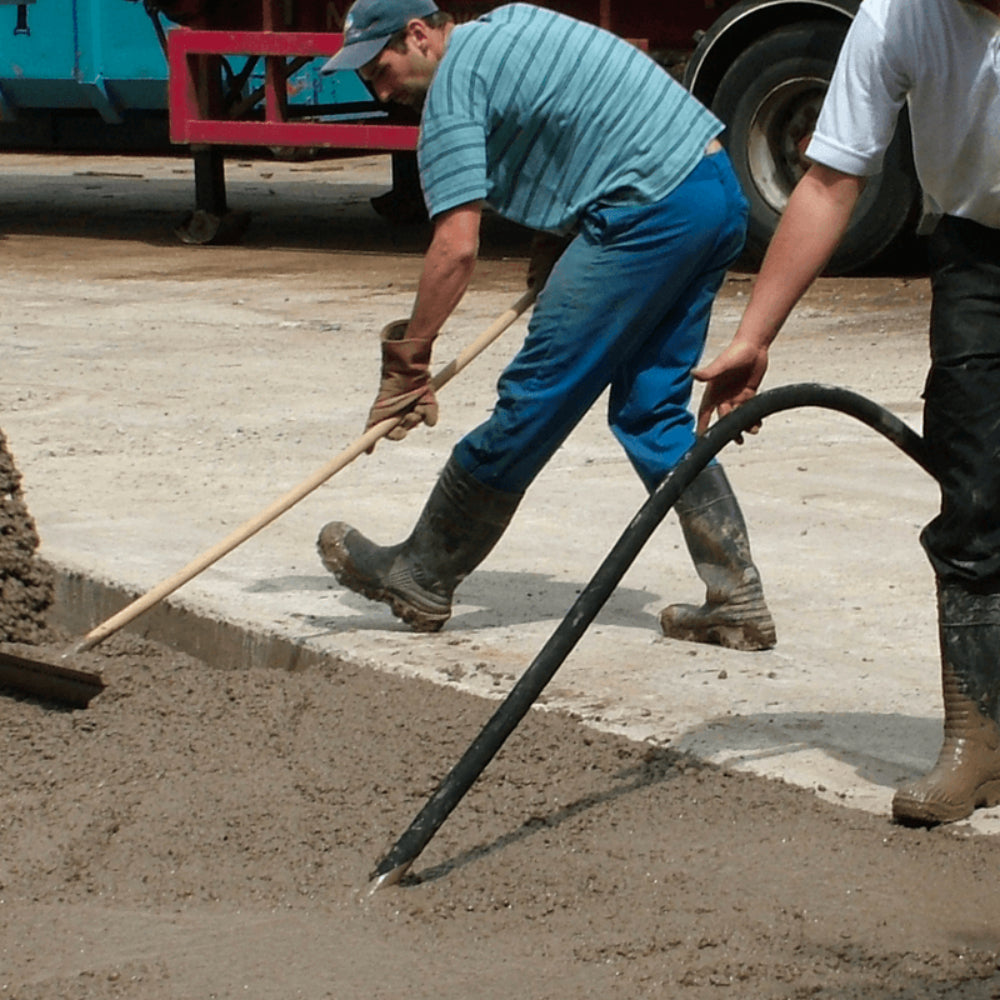

The Altrad Belle Vibratech+ High Frequency Poker range is engineered for demanding concrete compaction on professional job sites. Built for durability, efficiency, and reliability, each unit features an integrated in-line converter, removing the need for an external power pack and making the Vibratech+ one of the most practical high-frequency systems available. These pokers are designed for deep concrete pours, high-strength compaction, and continuous use in tough site conditions, with 7m and 10m abrasion-resistant hoses available depending on the model.
With a long-life, low-maintenance motor housed inside a die-cast aluminium body, the Vibratech+ provides consistent high-frequency vibration up to 12,000 VPM. An LED status indicator allows operators to quickly identify operating conditions and fault alerts, while the emission-free design makes it suitable for indoor and enclosed spaces. With 15m of cable included as standard, these units deliver exceptional reach and flexibility when working far from the power source.
Specification
| Model | Vibratech+ 38 | Vibratech+ 42 | Vibratech+ 52 | Vibratech+ 52RC | Vibratech+ 58 | Vibratech+ 58RC |
|---|---|---|---|---|---|---|
| MPN | BVP03 / BVP04 | BVP07 / BVP08 | BVP12 / BVP13 | BVP14 | BVP18 / BVP19 | BVP20 |
| Input Voltage / Frequency | 110V – 50/60Hz | 110V – 50/60Hz | 110V – 50/60Hz | 110V – 50/60Hz | 110V – 50/60Hz | 110V – 50/60Hz |
| Recommended Transformer | 2.5kVA continuous or 5kVA intermittent* | Same | Same | Same | Same | Same |

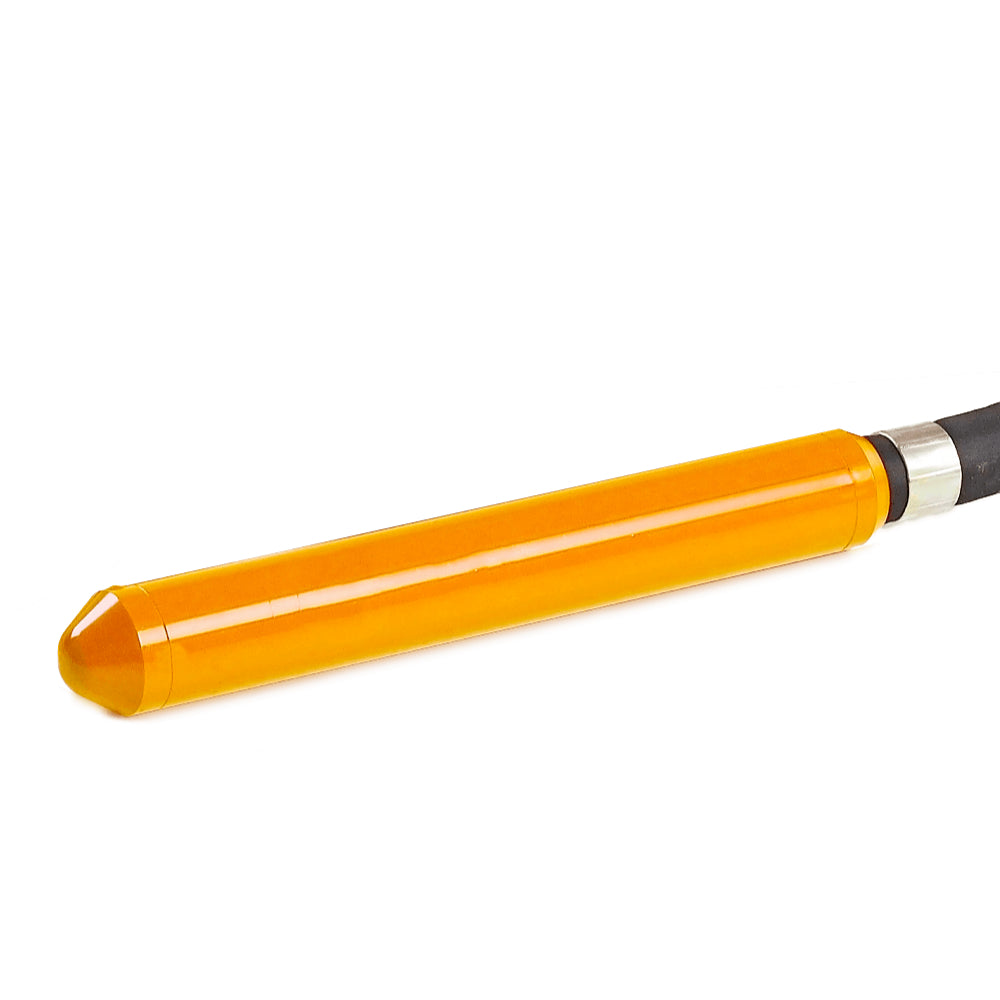

| Poker Diameter | 38mm | 42mm | 52mm | 52mm (with rubber cap) | 58mm | 58mm (with rubber cap) |
| Head Length | 330mm | 348mm | 382mm | 382mm | 410mm | 410mm |
| Frequency (VPM) | Up to 12,000 | Up to 12,000 | Up to 12,000 | Up to 12,000 | Up to 12,000 | Up to 12,000 |
| Centrifugal Force | 1825N | 2450N | 3420N | 3420N | 5075N | 5075N |
| Shaft Length Options | 7m or 10m | 7m or 10m | 7m or 10m | 7m | 7m or 10m | 7m |
| Cable Length | 15m | 15m | 15m | 15m | 15m | 15m |
| Weight | 12 / 16 kg | 15 / 19 kg | 17 / 22 kg | 17 kg | 19 / 24 kg | 19 kg |
