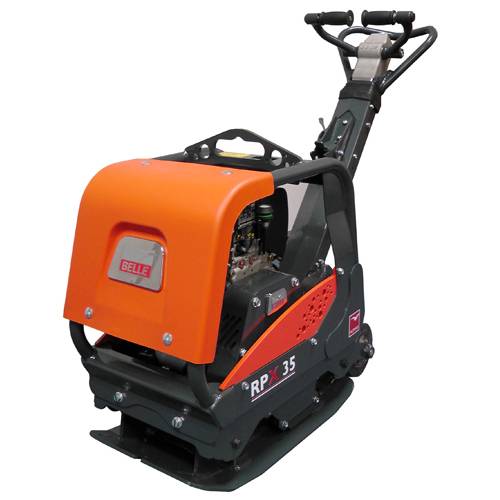

ALTRAD Belle RPX 35/50 Reversible Plate Compactor
(£3,620.00 ex VAT)
Key Features:
- Plate Size – 700 x 500
- Robust design for long service life in tough site conditions
- Petrol and diesel engine options available

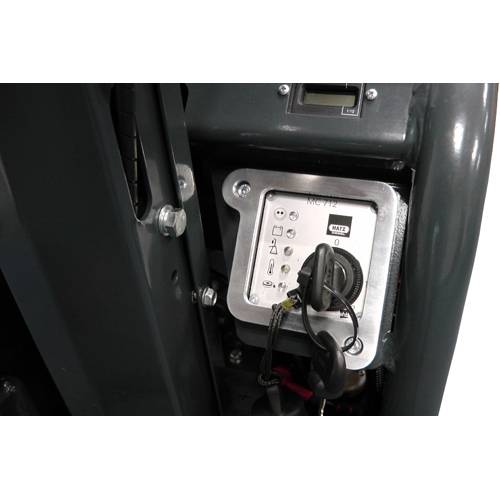

- Electric start on selected diesel models with key ignition and LED warning indicators
- Handle-mounted throttle lever for precise operator control
- Angled baseplate for excellent gradability on slopes

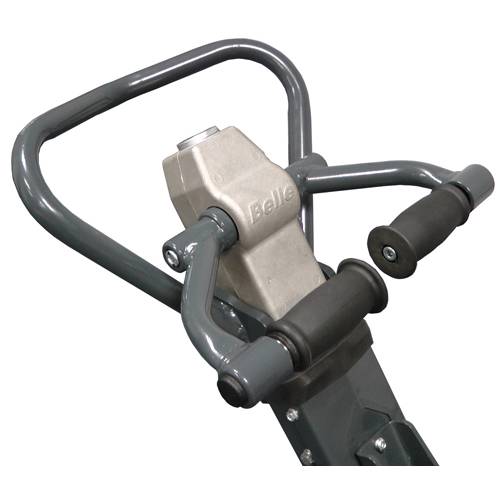

- Low HAV handle for reduced operator fatigue during extended use
- High compaction force for deep, fast and efficient compaction
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
The ALTRAD Belle RPX 35/50 Reversible Plate Compactor is a heavy-duty forward and reversible compactor designed for deep, fast and reliable compaction across a wide range of construction applications. Delivering a powerful 35kN of centrifugal force, this model provides excellent performance while maintaining smooth, controlled handling thanks to its improved baseplate design and balanced weight distribution.
This 500mm-wide version offers greater coverage than the 35/40 model, making it ideal for larger reinstatement areas, foundations, utility work, granular soils, backfill in trenches, and road repair preparation. The angled baseplate ensures excellent gradability, allowing the machine to climb slopes confidently, while the high compaction force reduces the number of passes required, helping operators complete jobs more efficiently. With a robust chassis, engine protection frame, handle-mounted throttle lever, and low HAV handle system, the RPX 35/50 is built to withstand harsh site environments while ensuring comfortable, safe operation even over long working periods. Petrol and diesel options are available, with electric start on selected diesel models for easier operation.
Specification
| RPX 35/50 Honda GX200 Petrol | RPX 35/50D Hatz 1D20 Diesel | RPX 35/50DE Hatz 1D20 Diesel Electric Start | |
|---|---|---|---|
| Engine Power (Hp) | 5.5 | 4.2 | 4.2 |
| Engine Power (kW) | 4 | 3.1 | 3.1 |
| Plate Size (LxW) (mm) | 700 x 500 | 700 x 500 | 700 x 500 |
| Static Pressure (kg/m²) | 1351 | 1436 | 1499 |
| Max Gradient (°) | 20 | 20 | 20 |
| Centrifugal Force (kN) | 35 | 35 | 35 |
| Frequency (Hz) | 81 | 81 | 81 |
| Travel Speed (m/min) | 26 | 26 | 26 |
| Weight (kg) | 180 | 191 | 194 |
