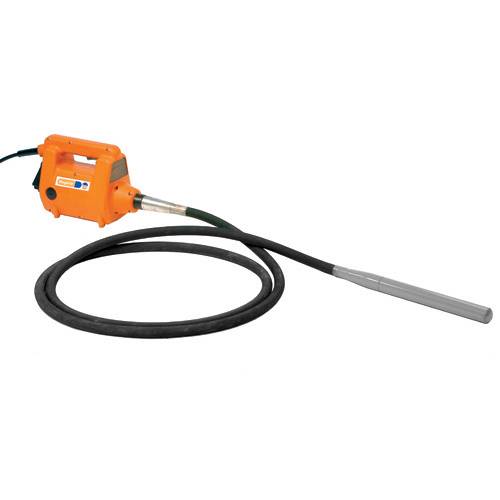

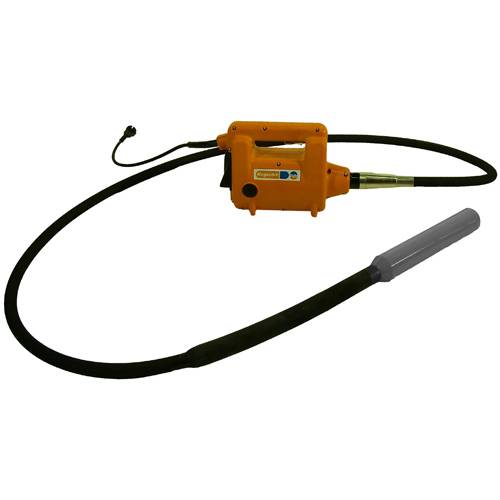

ALTRAD Belle Megavib+ Drive Unit and Poker Heads
(£371.67 ex VAT)
Key Features:
- Compact and lightweight drive unit for easy handling and reduced operator fatigue.
- High-impact motor housing protects the internal components for maximum durability.
- Double-insulated design enhances electrical safety during prolonged use.
- High-frequency vibration output delivers excellent concrete compaction and air removal.

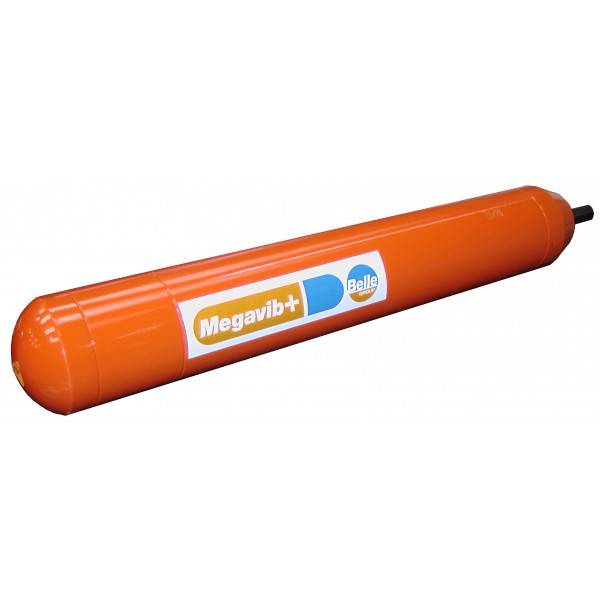

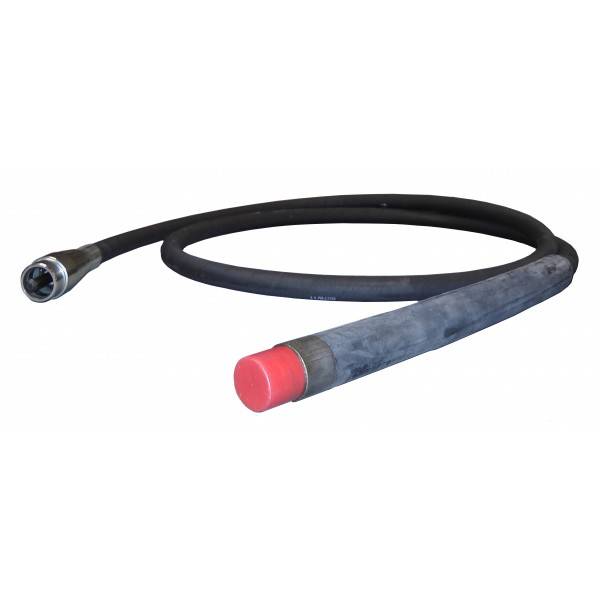

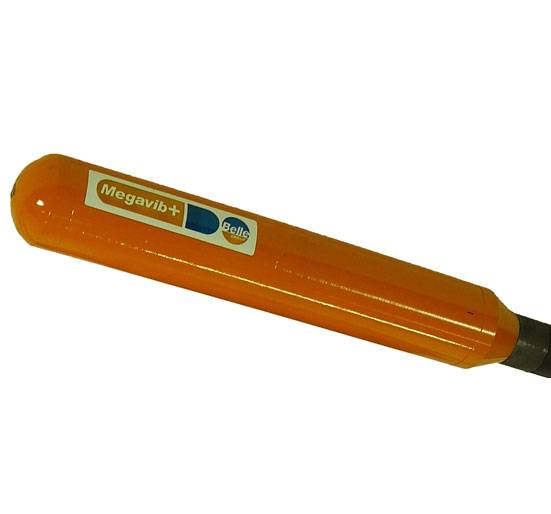

- Interchangeable poker heads and shafts to suit a wide range of concrete applications.
- Constant power delivery ensures consistent vibration performance, loaded or unloaded.
- Shoulder strap included for comfortable operation and mobility around site.
- Ideal for foundations, beams, slabs, footings, and formwork.
- Compact profile enables access to tighter spaces where larger vibrators cannot reach.
- Designed for continuous professional use in demanding construction environments.
- Two voltage versions available: 110V for site safety compliance, 230V for mains supply.
- Proven Belle reliability with rugged engineering for long service life.
Product Summary
You’re about to add all this items to your bag:
ALTRAD Belle Megavib+...
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
3 - 24 months personal credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
The ALTRAD Belle Megavib+ Drive Unit and Poker Heads form a compact, high-frequency concrete vibration system engineered for professional air removal and compaction. Designed for portability without compromising power, the Megavib+ delivers fast, consistent vibration through interchangeable poker heads and shafts — allowing operators to choose the correct head diameter for the job, from small formwork to deeper concrete pours.

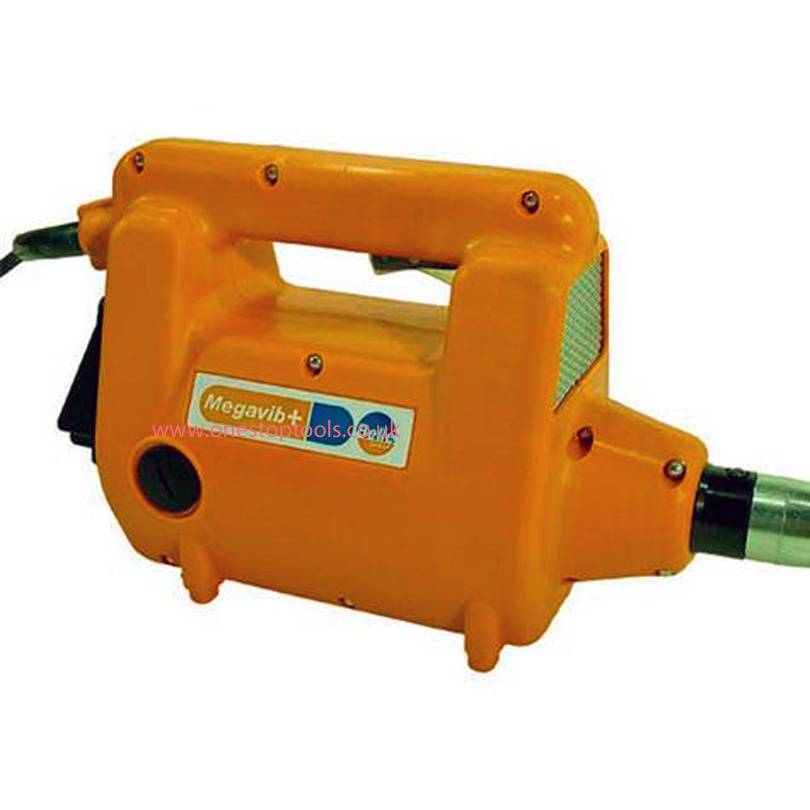

The lightweight drive unit features a high-impact motor housing for durability, double-insulated electrics for safety, and operates at a high frequency to ensure superior consolidation and reduced air voids. Its compact design, shoulder strap, and robust build make it ideal for concreting teams who require efficiency, reliability, and versatility on busy construction sites.
Specification
| Specification | Megavib+ 110V | Megavib+ 230V |
|---|---|---|
| Motor Speed (Unloaded) | 16,000 rpm | 16,000 rpm |
| Motor Speed (Loaded) | 12,000 rpm | 12,000 rpm |
| Power Output | 1.6 kW | 2.3 kW |
| Current Load | 13 A | 10 A |
| Operating Type | High-frequency vibration | High-frequency vibration |
| Motor Housing | High-impact reinforced casing | High-impact reinforced casing |
| Insulation Class | Double insulated | Double insulated |
| Shoulder Strap | Included | Included |
| Head & Shaft Compatibility | Interchangeable heads/shafts | Interchangeable heads/shafts |
| Application Use | Beams, slabs, columns, small pours | Beams, slabs, columns, small pours |
| Weight | 4.8 kg | 4.8 kg |
| Power Supply Requirement | 110V site transformer | 230V mains or generator |
| Recommended Users | Site-safe construction teams | Domestic & commercial concreting |
Additional Information
