ALTRAD Belle GPX CTE Power Generators
(£572.50 ex VAT)
Key Features:
- Single voltage 110V-only output for safe site use
- Suitable for 110V site conditions and Tin 12 fusion welding applications

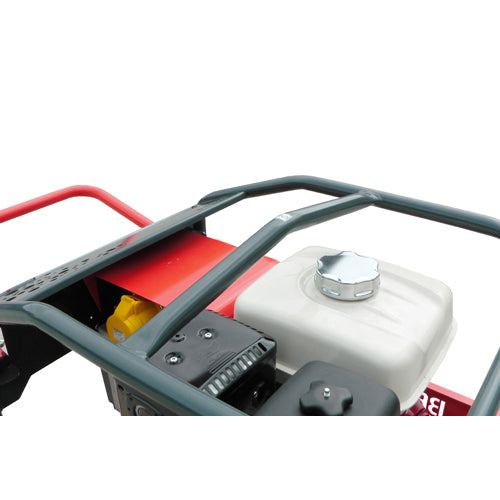

- Robust, stackable protective frame on standard models
- Protective belly plate on non-wheeled models for use on soft ground
- High quality, heavy-duty NSM alternator
- Full overload and system breaker protection
- Steel electrical enclosure with durable screw-in sockets
- Oversized 4-point anti-vibration mounts for smoother running
- Reliable Honda petrol engines with recoil start and low oil shut-off
- Wheeled 5kVA model available for easier on-site manoeuvrability
Product Summary
You’re about to add all this items to your bag:
ALTRAD Belle GPX CTE ...
1 - 3 or 12 months business finance from 0%
3 - 48 months credit, offers at checkout
3 - 24 months personal credit, offers at checkout
Join Waitlist
Leave your email to request a restock update for this option.
Payment Options Available
100% secure payment by:
- Bank Transfer
Description
The ALTRAD Belle GPX CTE Power Generator range is designed specifically for 110V site use and Tin 12 fusion welding applications. Built around a heavy-duty, stackable protective frame and a high quality NSM alternator, these open-set petrol generators deliver reliable power in tough site conditions and demanding rental environments. All electrics are fully overload protected and housed in a steel enclosure to shield key components from damage and the elements.
Available in four models – GPX 2700 CTE, GPX 3400 CTE, GPX 5000 CTE and GPX 5000W CTE (wheeled version) – this range offers outputs from 2.7kVA to 5kVA, all with single-voltage 110V-only outputs and dual pole system breakers for added safety. Powered by proven Honda petrol engines with low oil cut-off and mounted on oversized anti-vibration mounts, the GPX CTE series provides smooth operation, long service life and reduced maintenance for contractors and hire fleets.

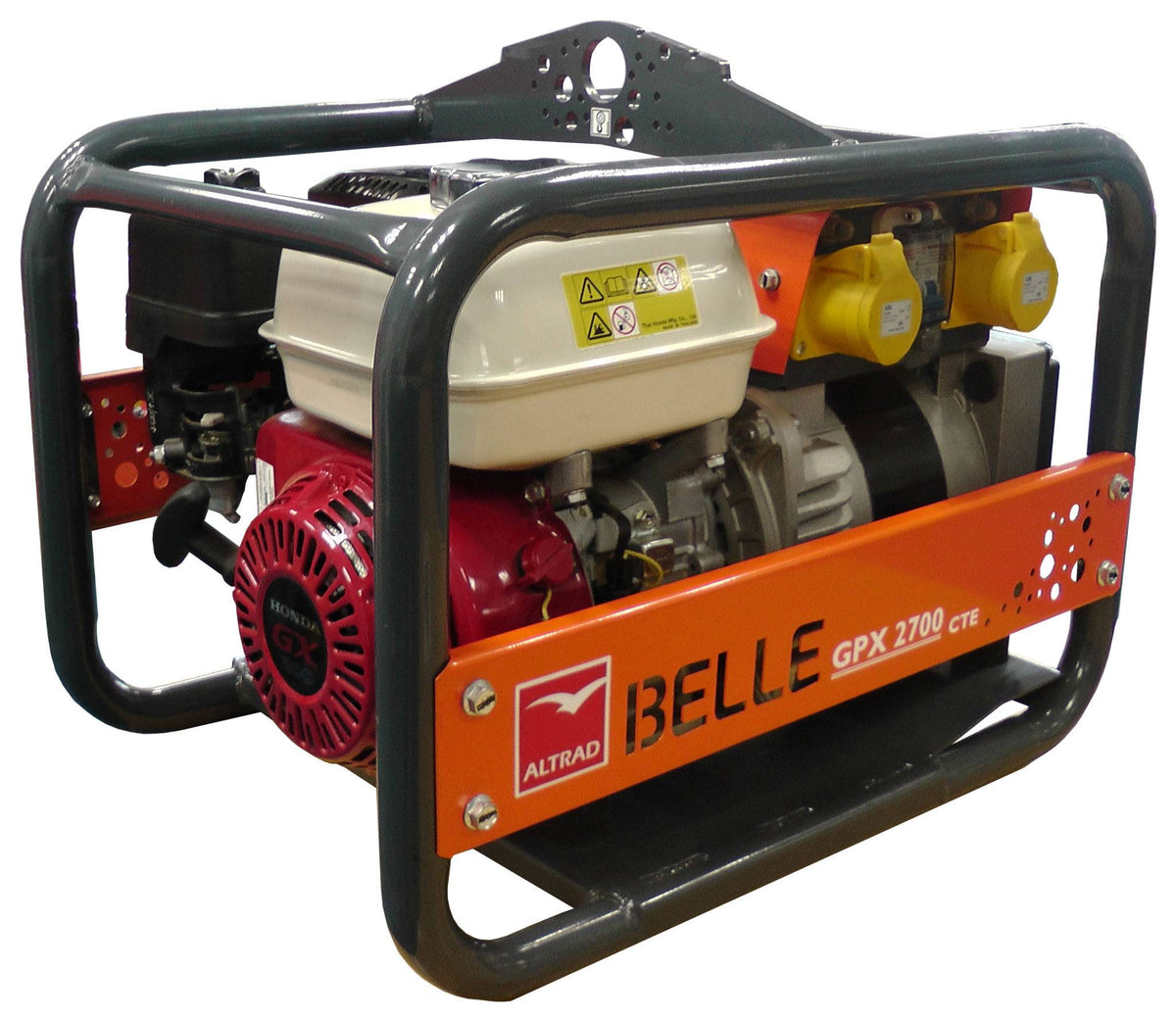

Specification
| Feature | Specification |
|---|---|

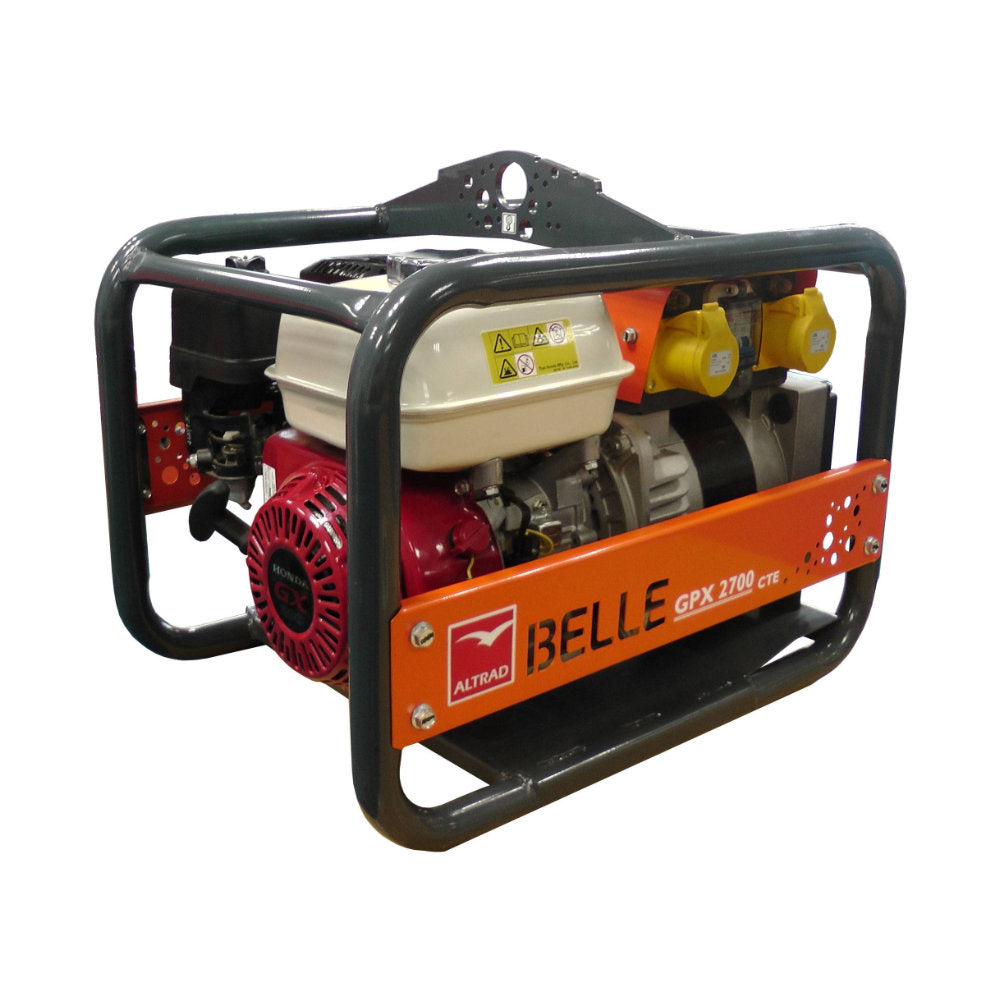

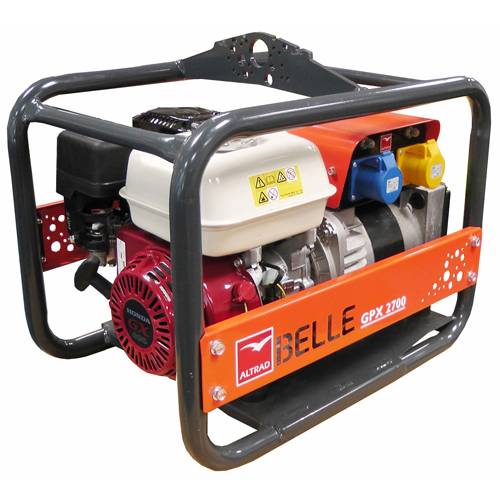

| Model | GPX 2700 CTE |
| Engine | Honda GX200 petrol |
| Engine Power | 4.3 hp / 3.3 kW |
| kVA Rating | 2.7 kVA at 0.8 p.f. |
| PRP Rating | 2.2 kW |
| Continuous Output | 2.0 kW |
| Voltage Output | 110 V single voltage (55 V – 0 – 55 V) |
| Socket Configuration | 2 × 16 A 110 V sockets |
| Application | 110 V site use, Tin 12 fusion welding |
| Protection | Overload protection, dual pole system breakers, steel enclosure |
| Frame | Stackable protective frame with belly plate |
| Anti-Vibration Mounts | Oversized 4-point AV mounts |
| Dimensions (L × W × H) | 618 × 432 × 515 mm |
| Weight | 46 kg |

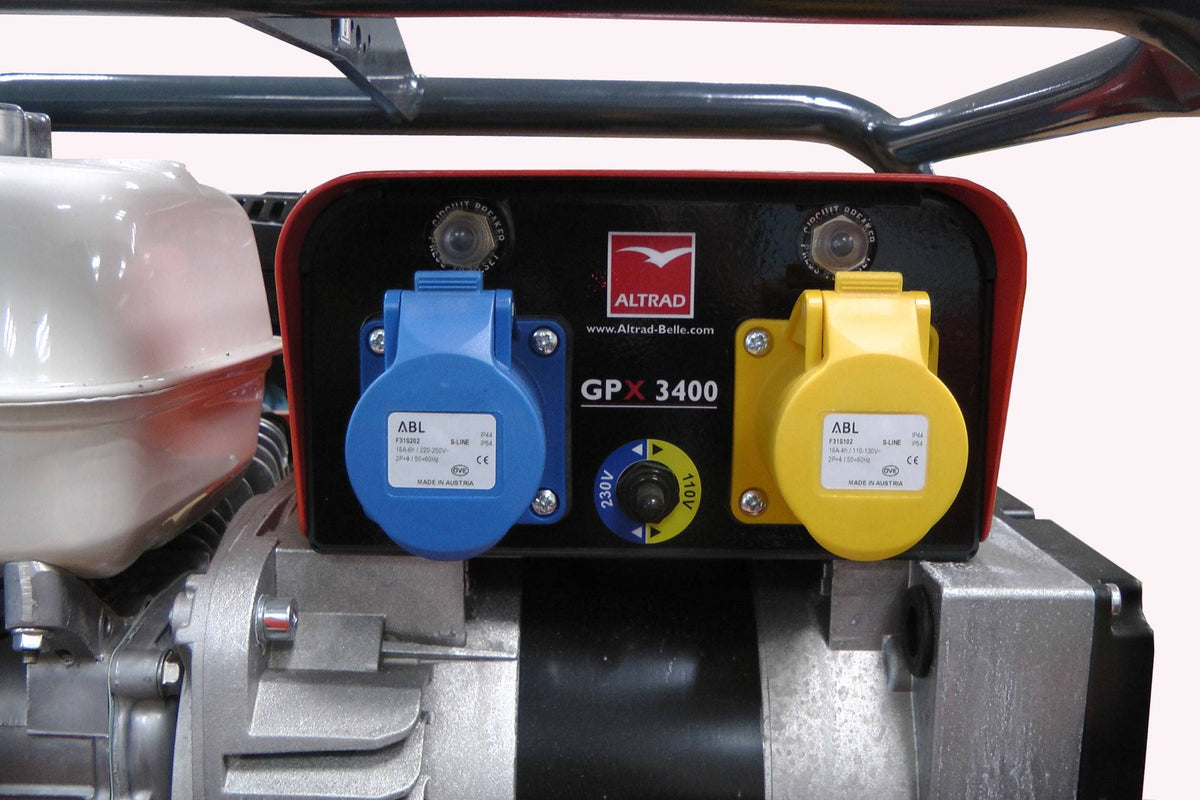

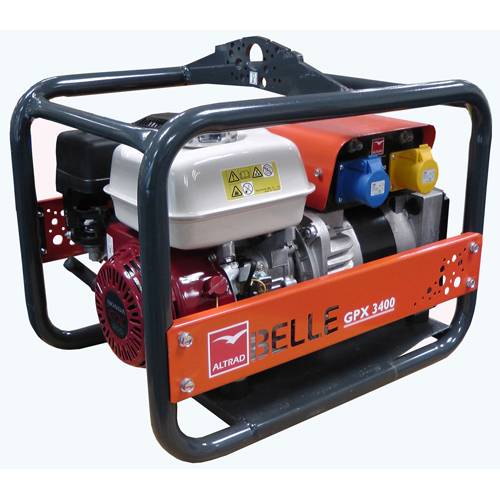

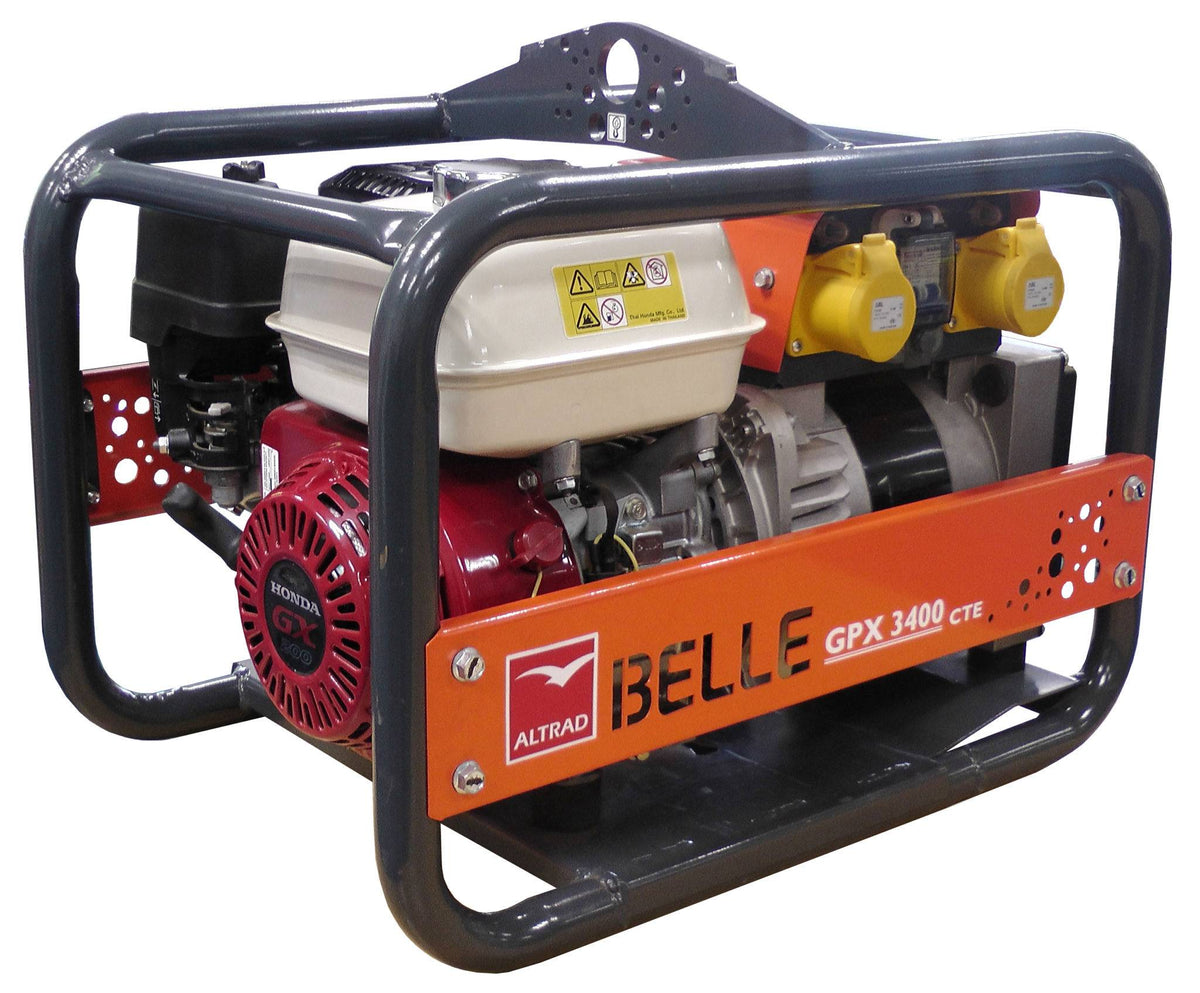

GPX 3400 CTE – 3.4kVA 110V Petrol Generator
Specifications
| Feature | Specification |
|---|---|
| Model | GPX 3400 CTE |
| Engine | Honda GX200 petrol |
| Engine Power | 4.3 hp / 3.3 kW |
| kVA Rating | 3.4 kVA at 0.8 p.f. |
| PRP Rating | 2.7 kW |
| Continuous Output | 2.5 kW |
| Voltage Output | 110 V single voltage (55 V – 0 – 55 V) |

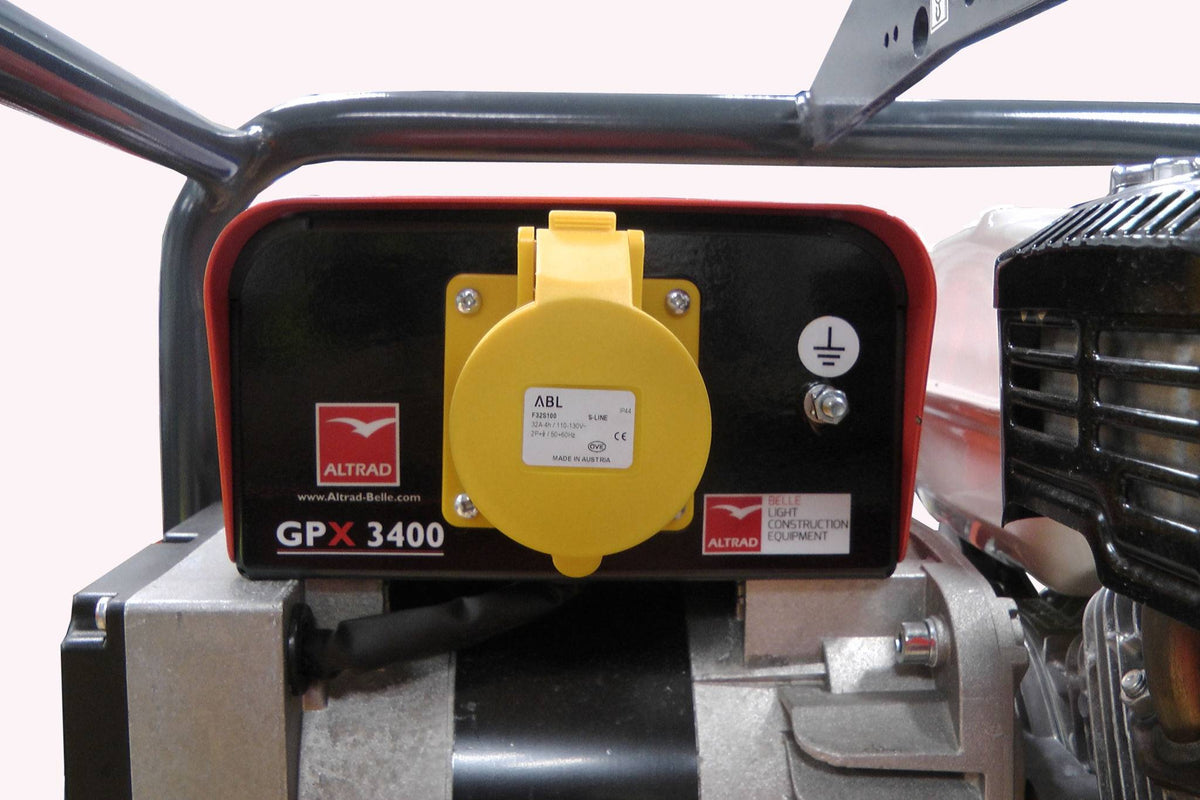

| Socket Configuration | 2 × 16 A 110 V sockets, 1 × 32 A 110 V socket |
| Application | 110 V site use, Tin 12 fusion welding |
| Protection | Overload protection, dual pole system breakers, steel enclosure |
| Frame | Stackable protective frame with belly plate |
| Anti-Vibration Mounts | Oversized 4-point AV mounts |
| Dimensions (L × W × H) | 618 × 432 × 515 mm |
| Weight | 47 kg |

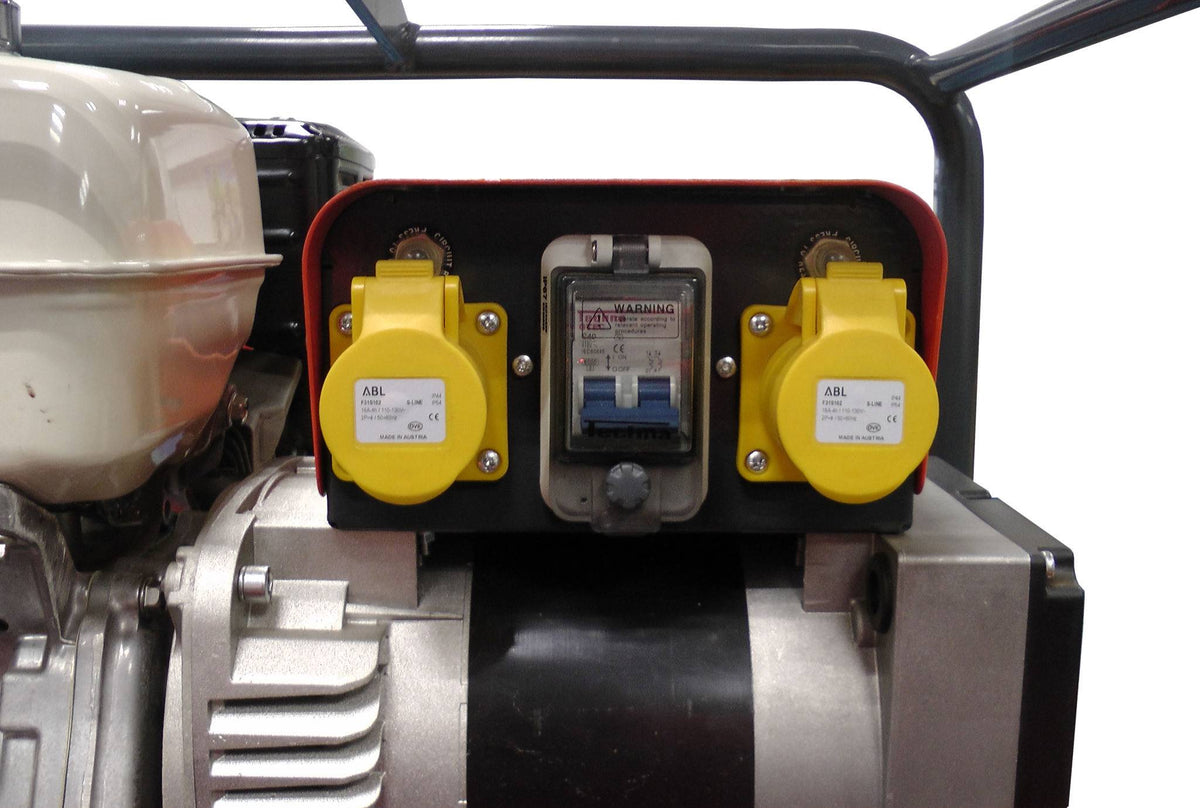

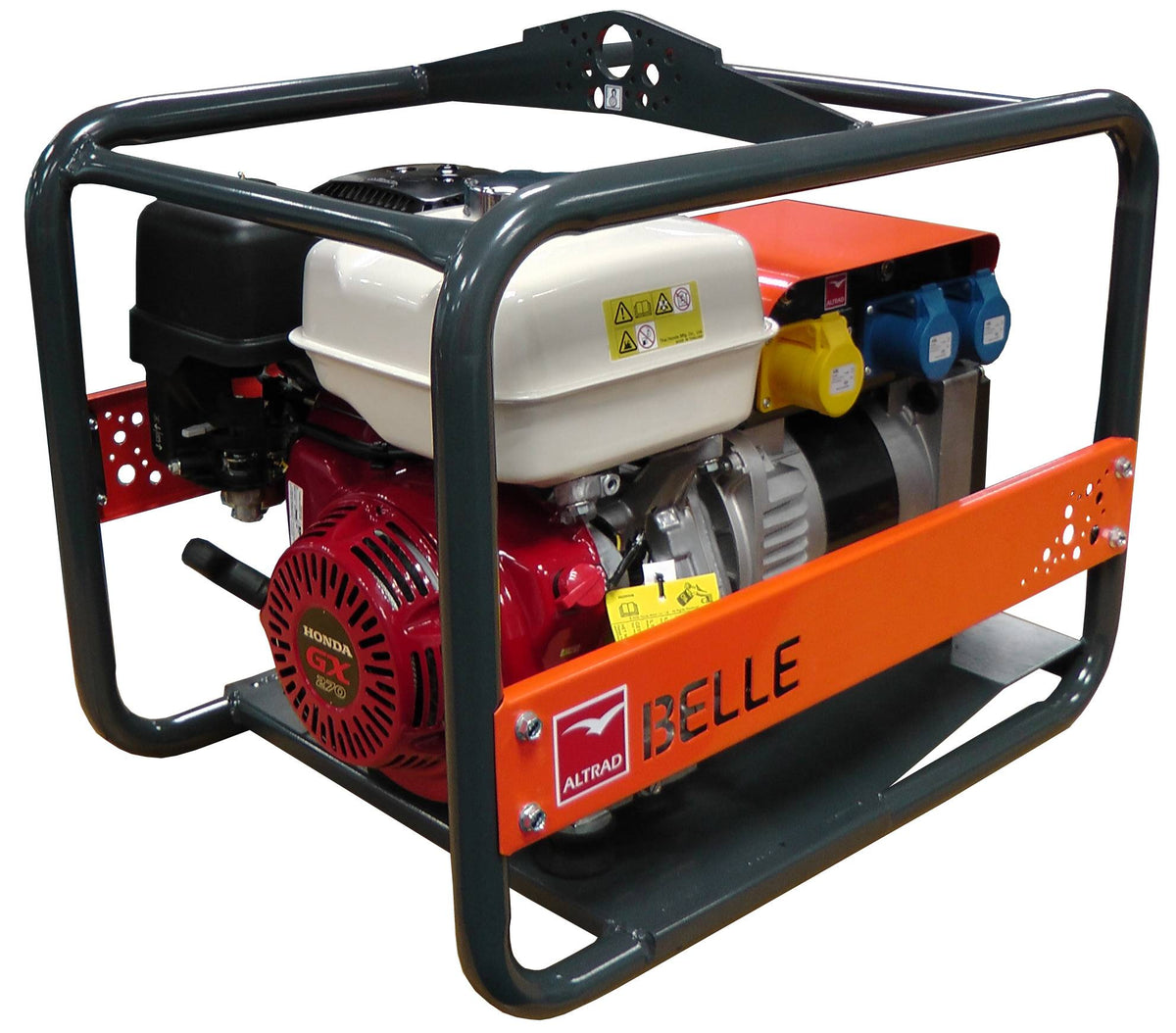

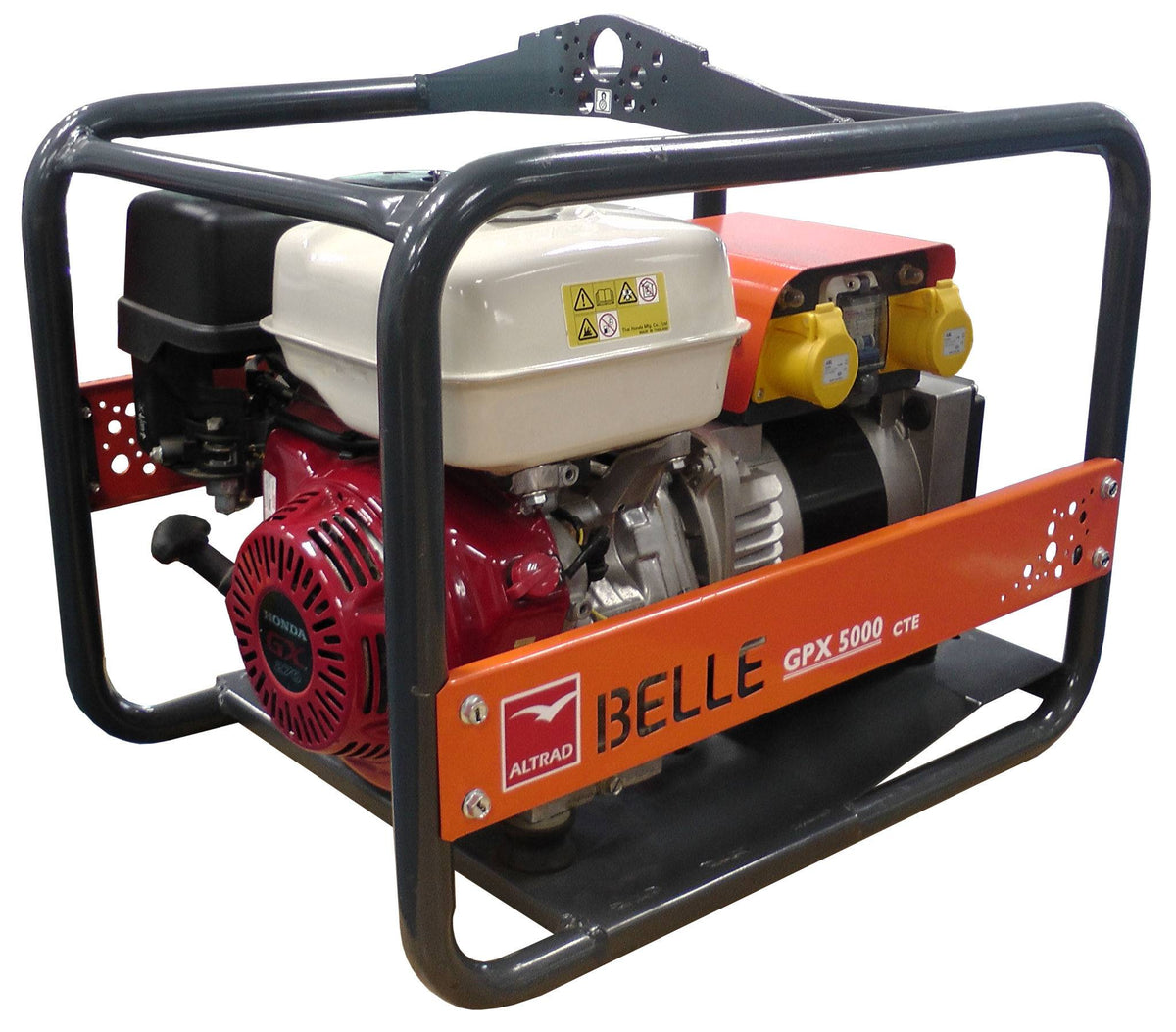

GPX 5000 CTE – 5kVA 110V Petrol Generator (Standard)
Specifications
| Feature | Specification |
|---|---|
| Model | GPX 5000 CTE |
| Engine | Honda GX270 petrol |
| Engine Power | 6.2 hp / 4.6 kW |
| kVA Rating | 5 kVA at 0.8 p.f. |
| PRP Rating | 4.0 kW |
| Continuous Output | 3.6 kW |
| Voltage Output | 110 V single voltage (55 V – 0 – 55 V) |
| Socket Configuration | 2 × 16 A 110 V sockets, 1 × 32 A 110 V socket |
| Application | 110 V site use, Tin 12 fusion welding |
| Protection | Overload protection, dual pole system breakers, steel enclosure |
| Frame | Stackable protective frame with belly plate |
| Anti-Vibration Mounts | Oversized 4-point AV mounts |
| Dimensions (L × W × H) | 728 × 512 × 595 mm |
| Weight | 64 kg |

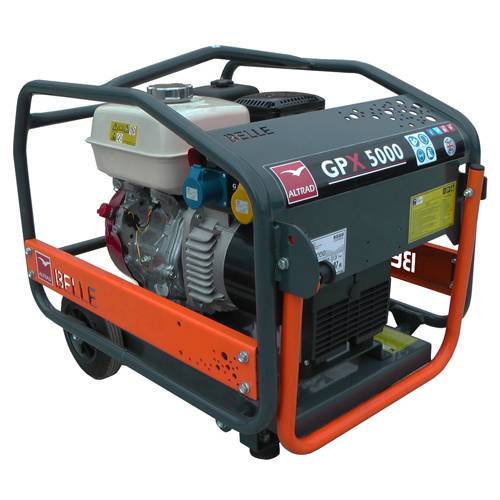

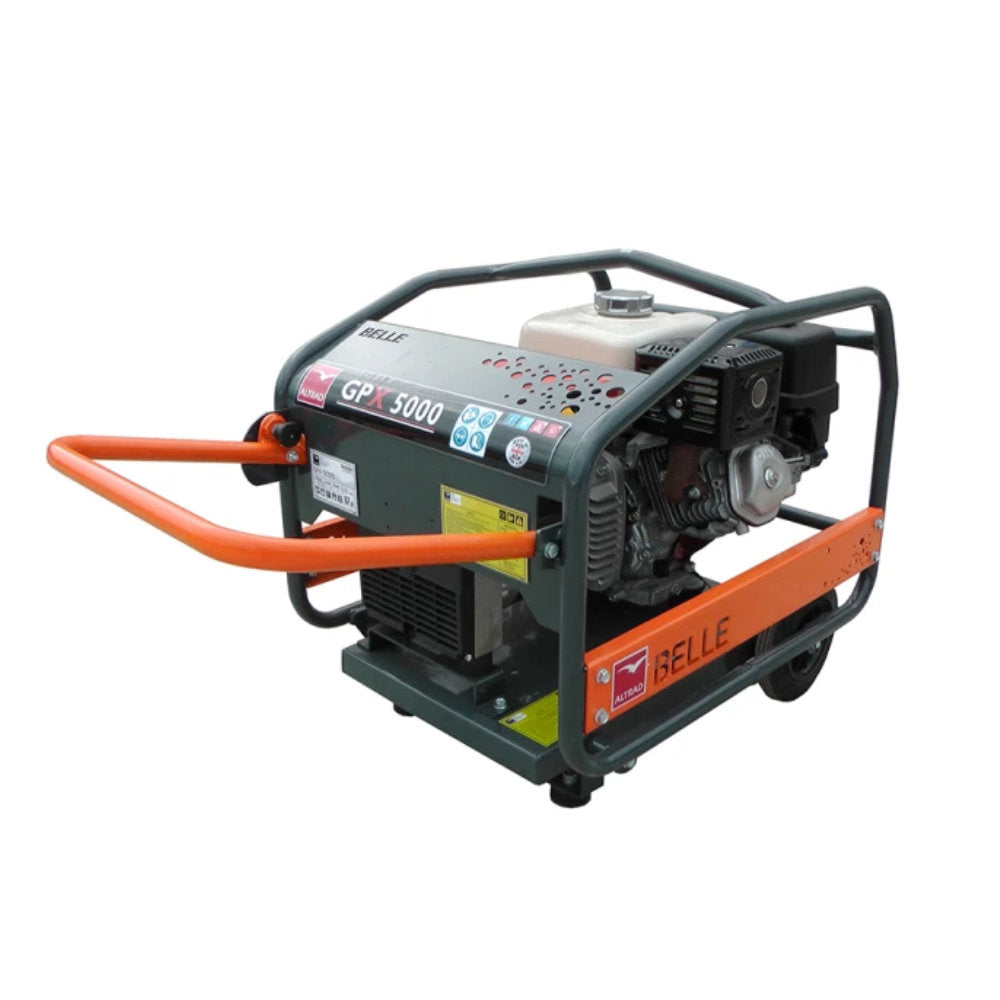

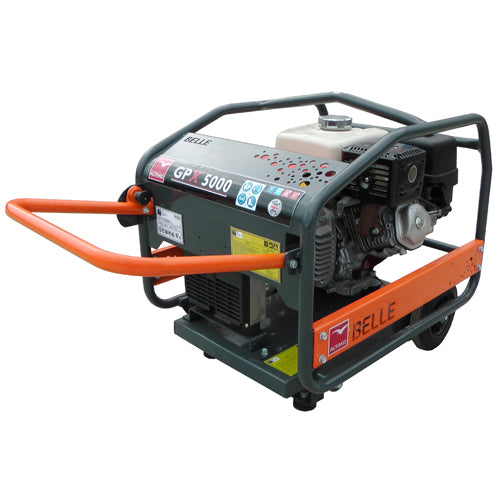

GPX 5000W CTE – 5kVA 110V Petrol Generator (Wheeled)
Specifications
| Feature | Specification |
|---|---|
| Model | GPX 5000W CTE |
| Engine | Honda GX270 petrol |
| Engine Power | 6.2 hp / 4.6 kW |
| kVA Rating | 5 kVA at 0.8 p.f. |
| PRP Rating | 4.0 kW |
| Continuous Output | 3.6 kW |
| Voltage Output | 110 V single voltage (55 V – 0 – 55 V) |
| Socket Configuration | 2 × 16 A 110 V sockets, 1 × 32 A 110 V socket |
| Application | 110 V site use, Tin 12 fusion welding |
| Protection | Overload protection, dual pole system breakers, steel enclosure |
| Frame | Wheeled frame, non-stackable, no belly plate |
| Mobility | Integrated wheel kit for easier transport |
| Anti-Vibration Mounts | Oversized 4-point AV mounts |
| Dimensions (L × W × H) | 778 × 552 × 661 mm |
| Weight | 79 kg |
