Description

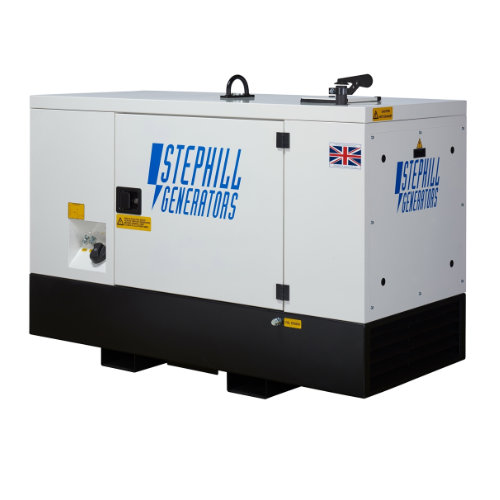

The STEPHILL SSDK20M is a highly versatile and reliable generator designed for a range of applications, including construction, outdoor events, utility, standby, and hire fleets. With a maximum output of 19.0kVA / 15.2kW and a run time of 26 hours, this generator offers exceptional performance and reliability, even in the most demanding environments.

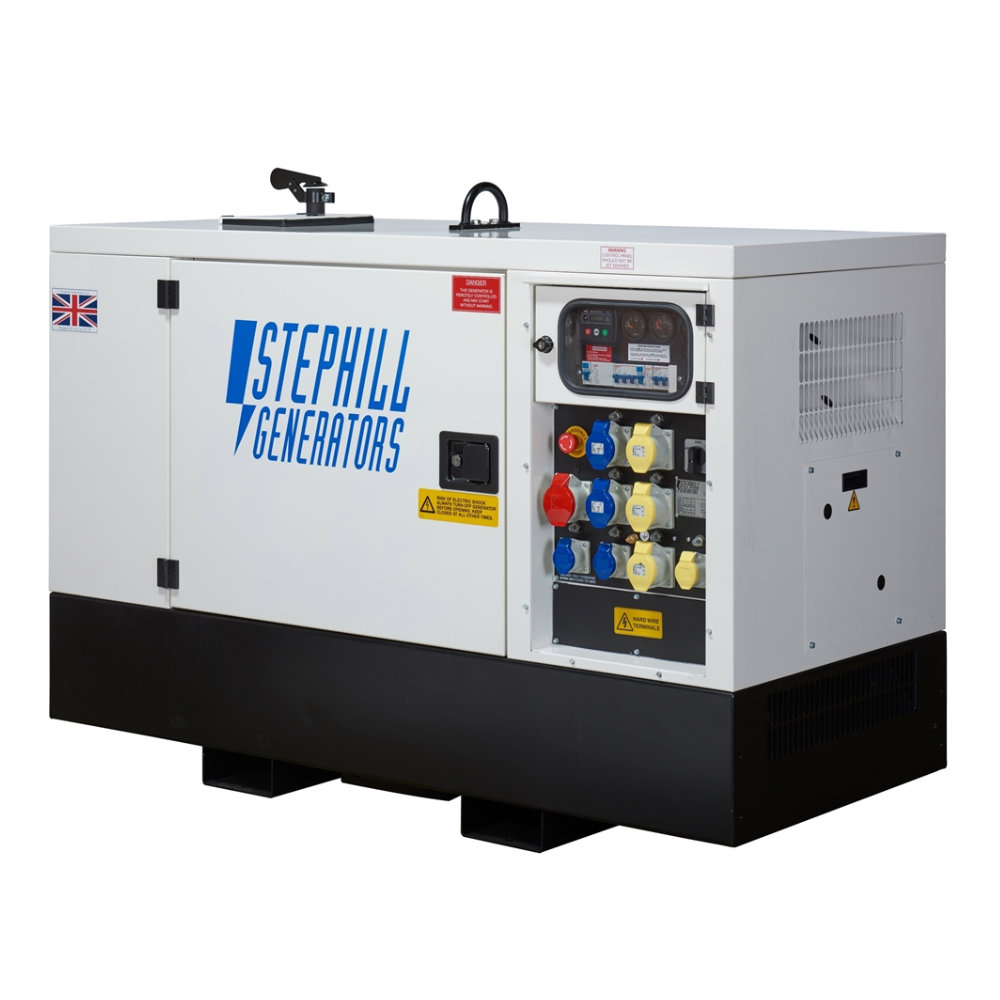

The STEPHILL SSDK20M comes complete with a range of features and benefits that make it the perfect choice for any job site or event. These include a close-fitting acoustic canopy, a fully bunded long-range fuel tank with connections for remote fuel supply, a comprehensive control panel with a Deep Sea Electronics control system, and multiple socket outlets. The generator also features MCB and RCD protection on 400V & 230V, fuel, oil, and temperature gauges, and a fuel pump prime button for easy bleed upon service.
Other key features of the STEPHILL SSDK20M include a Kubota V2203 engine with EU Stage V compliance, low oil pressure and high engine temperature shutdowns, a low fuel level warning, and a Zintec weatherproof enclosure with a lifting eye and heavy-duty base with fork lift pockets. The generator also comes with a 3-way valve for an external tank, an oil drain facility, and a battery isolator and emergency stop button for added safety. The module displays warnings, shutdowns, and engine status information on a back-lit LCD screen, making it easy to monitor and control.
Key features:
- Maximum output of 19.0kVA / 15.2kW
- Close-fitting acoustic canopy for super-silent operation
- Comprehensive control panel with Deep Sea Electronics control system
- MCB and RCD protection on 400V & 230V

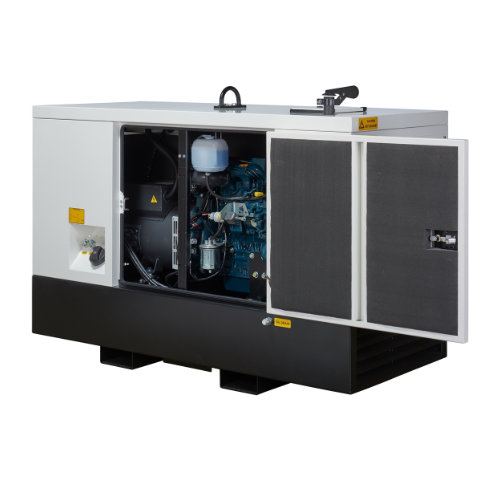

- Kubota V2203 engine with EU Stage V compliance
- Low oil pressure and high engine temperature shutdowns
- Low fuel level warning
- Zintec weatherproof enclosure with lifting eye and heavy-duty base
- Bunded fuel tank for added safety
- Back-lit LCD screen for easy monitoring and control.
- Lifting eye for easy transportation and installation
- Heavy duty base with fork lift pockets for added stability during operation
- 3-way valve (1/4″ BSP) for easy connection to an external fuel tank
- Oil drain facility for easy maintenance and upkeep
- Battery isolator and emergency stop button for added safety during operation
- Bunded fuel tank to prevent spillage and ensure safe fuel storage
- LCD screen for displaying warnings, shutdowns, and engine status information
- Monitoring and protection of AC volts and frequency (Hz) to ensure consistent and safe power output
- 2-wire remote start function for convenient operation from a distance
- Prime Power (PRP) and Standby Power options for versatile and reliable power supply in various applications.
