Description
The Nemo GRABO is the worlds first portable vacuum lifter and is a must-have for professionals in the construction industry. Many builders and construction professionals are rapidly adopting the Nemo GRABO tool, for one simple reason. Not only does it provide enhanced efficiency, but also safety and saves on labour costs.
The GRABO Classic is an ideal lifting tool for countertops, doors, panels, as well as materials such as glass, ceramic tiles, metals and other materials. The tool works at a maximum vacuum capacity of 11.6 psi, with an optimum lifting capability of loads as heavy as 375 lbs.
Built for Professionals
The GRABO Classic Suction Cup is designed for professional use and includes a range of useful features. It is ergonomically designed to provide maximum work efficiency while being lightweight, making it excellent to carry around in a tool kit. Not only does portability make the tool unique, but the simplicity of it’s operation, performance and build quality make it a premium tool to carry.
The GRABO Classic is a game-changer for professionals in the building and construction industries. It is equipped with a strong vacuum pump that works in tandem with a robust foam seal, allowing it to lift any flat slab of solid material. Simply turn on the unit and place it straight onto the surface and lift.
Lifting Capacity Table:
Perpendicular Hold | Parallel Hold | |
| Glass: | 375 lbs / 170 kg | 265 lbs / 120 kg |
| Ceramic Tile: | 375 lbs / 170 kg | 265 lbs / 120 kg |
| Metal: | 242 lbs / 110 kg | 242 lbs / 110 kg |
| Plastic: | 220 lbs / 100 kg | 220 lbs / 100 kg |
| Wood: | 220 lbs / 100 kg | 143 lbs / 65 kg |
| Rough Slate: | 176 lbs / 80 kg | 176 lbs / 80 kg |
| Rough Concrete: | 176 lbs / 80 kg | 176 lbs / 80 kg |
| Dry Wall: | 165 lbs / 75 kg | 143 lbs / 65 kg |
Using the GRABO Classic:
The vacuum pump should stay activated while transferring materials to provide maximum safety, as even if there is an air leak due to foreign material or dirt around the seal, the continuous vacuum pump action will maintain constant pressure.
A rubber protected pressure gauge allows the user to monitor the vacuum pressure level in accordance with the lifting capacity for any given materials. Once lifting has finished and the object has been placed, simply press the red vacuum release button to release the vacuum and move onto the next object.
The Nemo GRABO tool is also equipped with four lifting lugs which are placed on both sides of the grab handle. These lugs become handy in case the tool is to be used with additional grips or straps for extra support. These accessories can be purchased separately.
Nemo GRABO Classic Features:
- Effective on both non-porous, semi-porous or rough surfaces
- Lifting is automated and deactivated with the press of a button
- Continuous suction is provided to ensure a constant vacuum
- Rubber protected pressure gauge to monitor vacuum pressure level
- Ergonomic, comfortable design
- Hold loads as heavy as 375 lbs

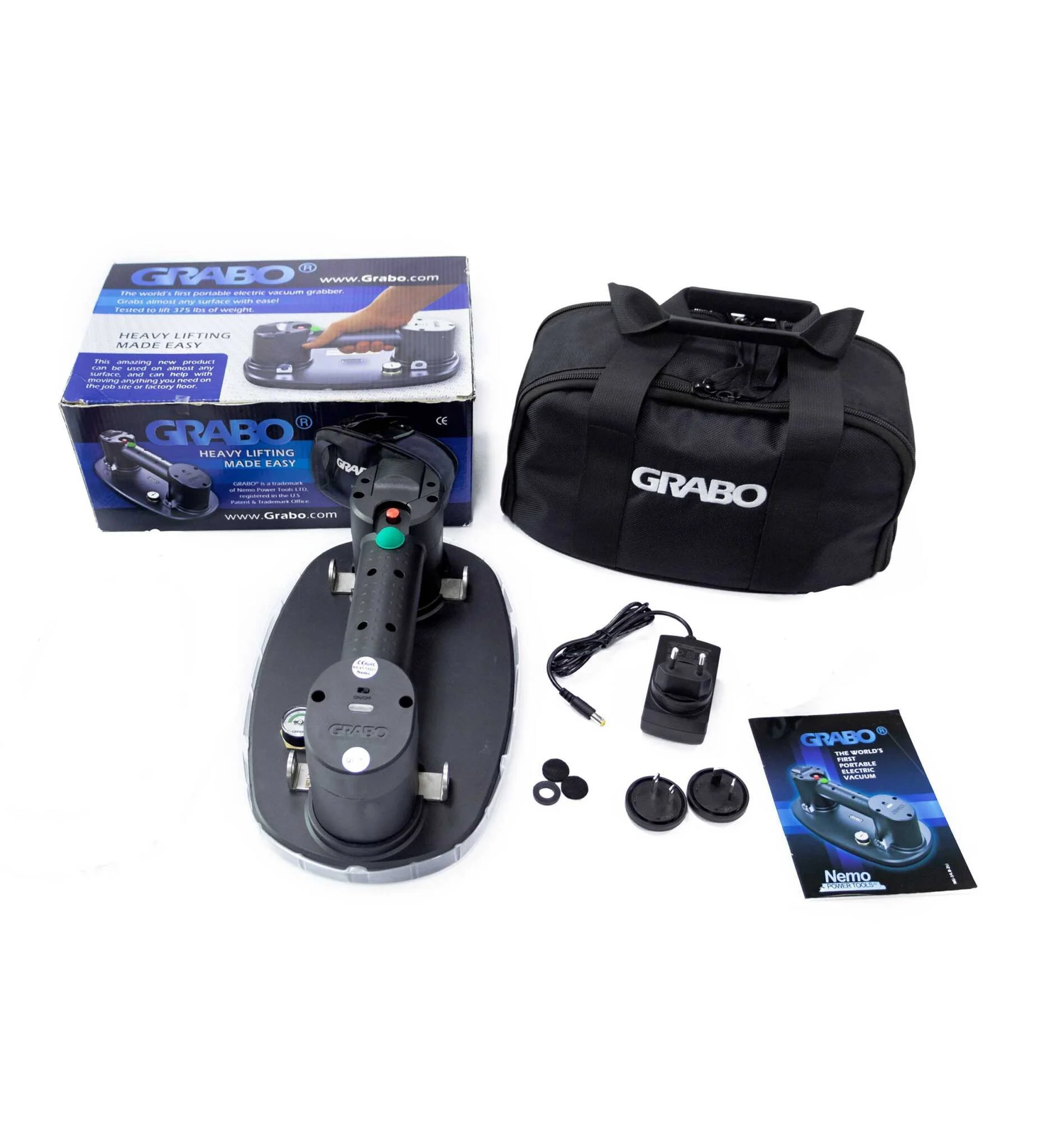

Nemo GRABO Classic Kit:
The GRABO Classic comes as a complete unit, with pre-installed battery and vacuum seal. Additionally, other accessories come with the kit including a multi-socket charger and heavy-duty carry bag.
Package Contents:
- 1 GRABO Classic Tool (2021 Model with Digital Display)
- 1 Mechanical built-in pressure gauge with protective rubber coating
- 1 Multi-Socket Charger
- 1 Seal (Pre-installed on the tool)
- 1 Battery (Pre-installed on the tool

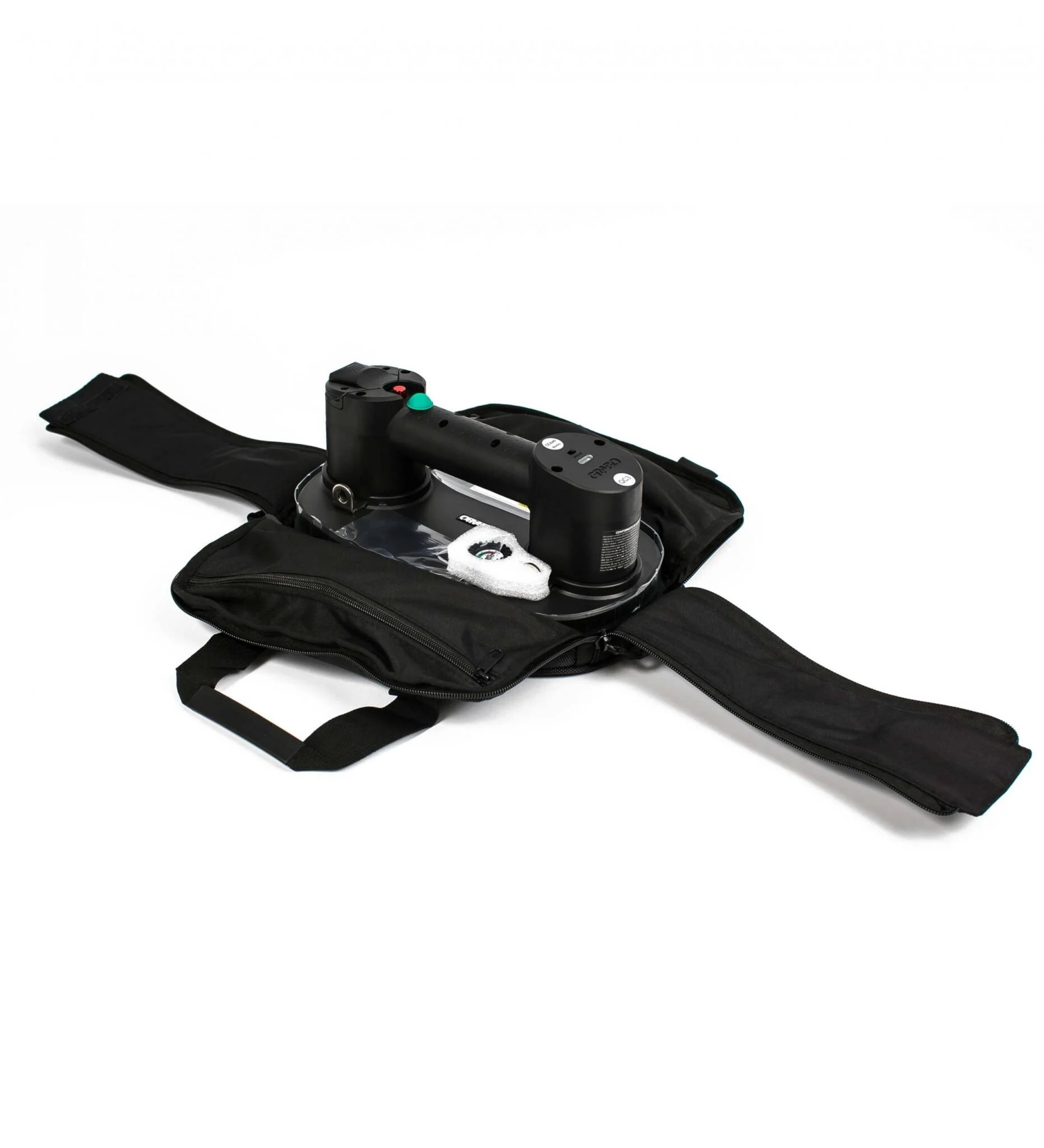

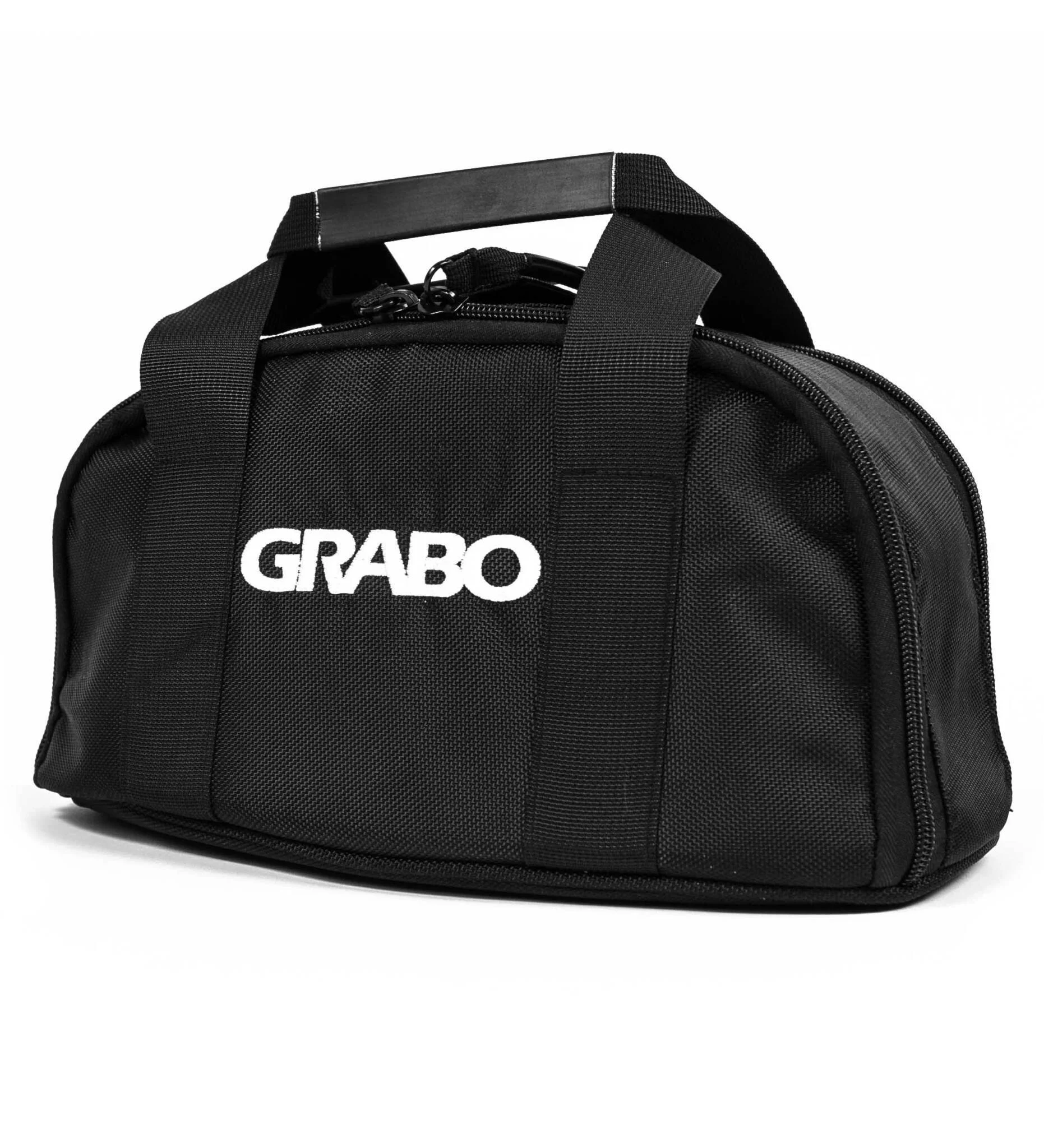

- 1 Tough Oxford fabric carry bag
- Operator manual in English
GRABO Classic Specifications:
| Model: | Nemo GRABO Classic |
| Battery: | 14.8 VDC | 2600mAh Li-Ion |
| Rated Power (Watts): | 16 |
| Charger Input Voltage: | 100 – 240 VAC | 50/60Hz |
| Battery Charging Time: | ~2 Hours* |
| Non-Stop Running Time (Full Charge): | ~1.5 Hours* |
| Running Cycles (On Full Charge): | 900 On-Off Cycles of 10 Seconds* |
| Stand-By-Mode (Charge Hold): | 30 Days* |
| Expected Pump Service Life: | 100,000 On-Off Cycles / 800+ Hours Continuous |
| Rated Air Flow: | 0.7 cfm (20 L/min) |
| Maximum Vacuum Rate: | 11.6 Psi (0.8 Bar, 80kPa) |
| Maximum Lifting Capacity: | 375 Lbs (170Kg) |
| Dimensions (LxWxH): | 12.1″ x 7.37″ x 4.91″ (297mm x 181mm x 121mm) |
| Net Weight (With Battery): | 3.3lbs (1.6 Kg) |
| Working Temperature: | 32°F – 140°F (0°C – 60°C) |
| Applicable Surface Type: | Peak/Valley heights less than 0.1″ (3mm) and Arc less than 5° |
* While the specified values are expected, they are approximations and as such, different circumstances can cause results to vary
Questions?
If you have any questions regarding the GRABO Classic, please do not hesitate to contact our staff who are available to answer your questions.
