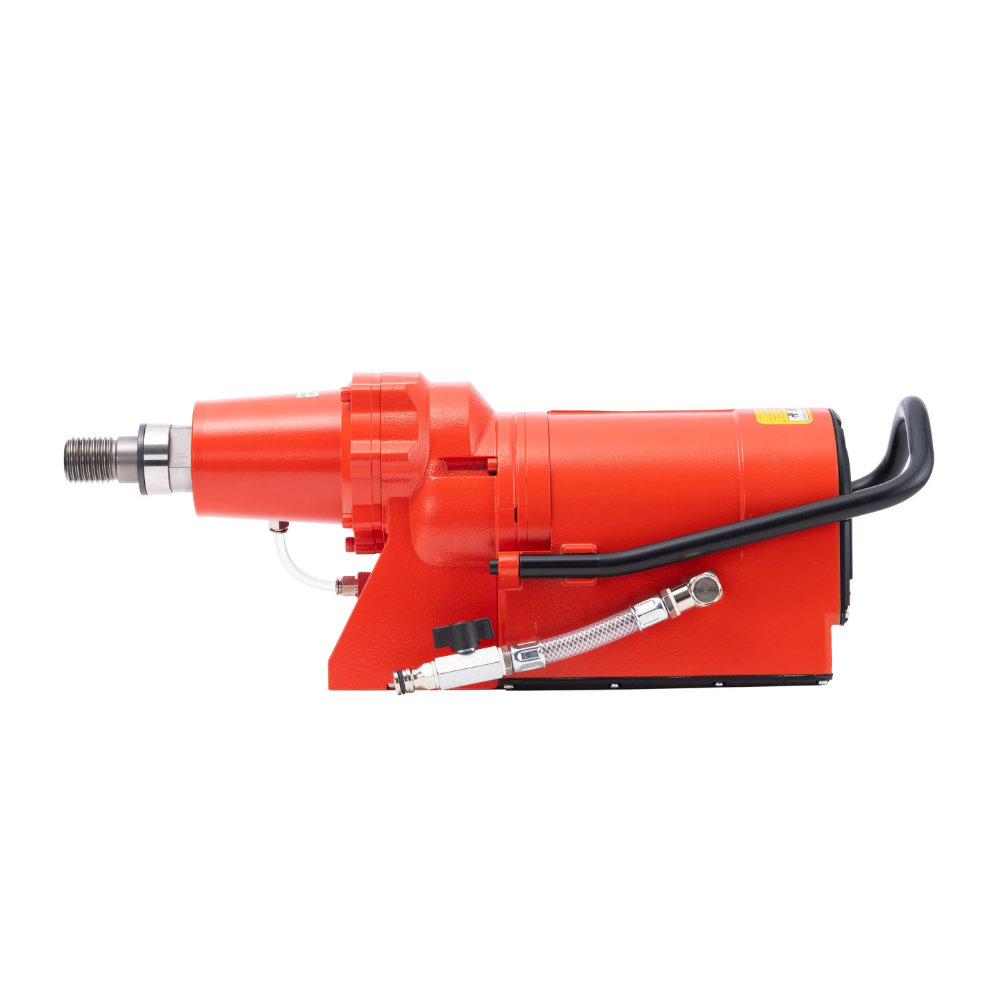

WEKA SR65 Jumbo Core Drill 400V
When you need to drill larger diameters or require a core drill with that extra power, look no further than the WEKA SR65 Jumbo Core Drill. Water-cooled SR-motor provides 7500w of power at 6 different speeds and allows for large diameter coring up to 500mm. Industry-leading motor protection safely shuts the machine down if it detects high levels of heat, preventing overloading. The SR65 is extremely robust and thermally stable, contained within a tightly-sealed aluminium case. Safety and mobility for operator due to laterally running carry handle protecting the aluminium case.
WEKA SR65 Jumbo Core Drill 400V Features
- Up to 500mm cutting diameter, 6-speed and 7500w power.
- Controlled motor current prevent overloading.
- Thermal protective switches prevent overheating.
- Robust, thermally stable aluminium casing.
- Oil bath lubrication – Little maintenance needed, long lifespan and high efficiency.
Packed With Technology

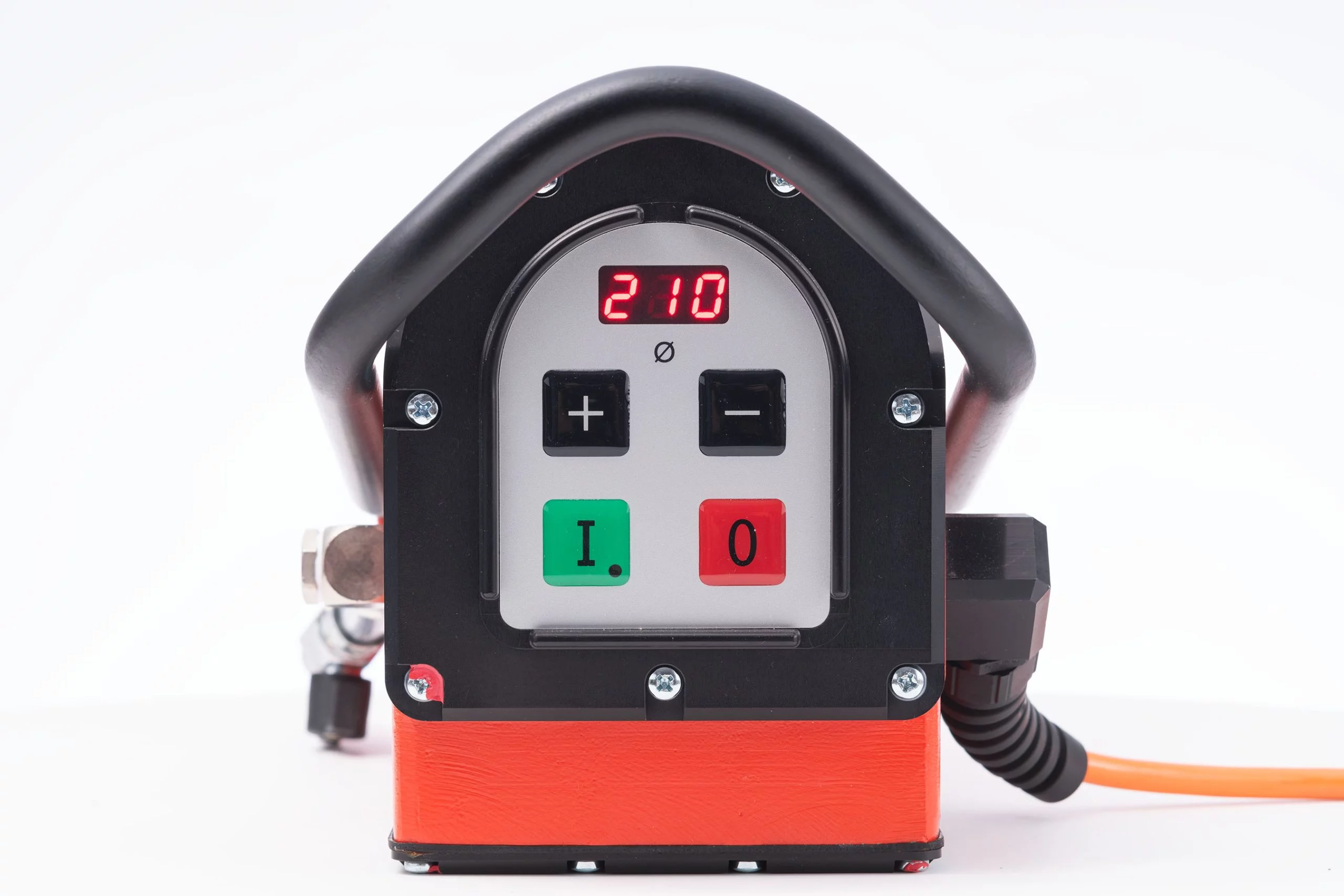

WEKA’s SR65 Jumbo is also very technologically advanced. It features a protected keypad and display, from which you can set the diameter of the core using +/- buttons so the drill motor uses the optimum speed automatically. You can also press both +/- buttons at the same time to enable the soft turn feature, by which the drill will automatically assemble the drill bit and reduce speed and torque for safety reasons. Displays make operator aware of any errors, such as the machine getting too hot or the voltage being too high. Repair workers and technicians can also analyse further information like operation hours, software versions and full reports of error message history. The drill motor also features an integrated operating hours counter
Water Protection
When buying a drill motor for wet coring, especially when there’s a lot of drilling to do, you want to be reassured that it’s as protected as possible. The SR65 Jumbo does just that, secured by IP55-approved water protection means any projection of water, from whatever direction, can not cause any harm to the machine. This also means you can drill vertically (overhead) without taking any further precautions, so the machine is already fully protected for you.
Need Wet Cores?
We supply an extensive range of wet diamond cores. You can find our Pro Wet Cores here (suitable for moderate drilling in most materials) and our Platinum Wet Cores here (suitable for more heavy-duty drilling in a wider range of materials). We can also have custom sizes built for you, so if you can’t find what you’re looking for then please get in touch. A selection of extension bars are also available here.
WEKA SR65 Specifications
| Rated Voltage (V): | 400 |
| Rated Current (A): | 15 |
| Nominal Power (w): | 7500 |
| Output Power (w): | 5700 |
| Rated Speed (6-Steps) (1/min): | 140 – 305 |
| Total Length without Handle (mm): | 515 |
| Total Weight without Cable (kg): | 18 |
| Drilling (Ø mm): | 150 – 500 |

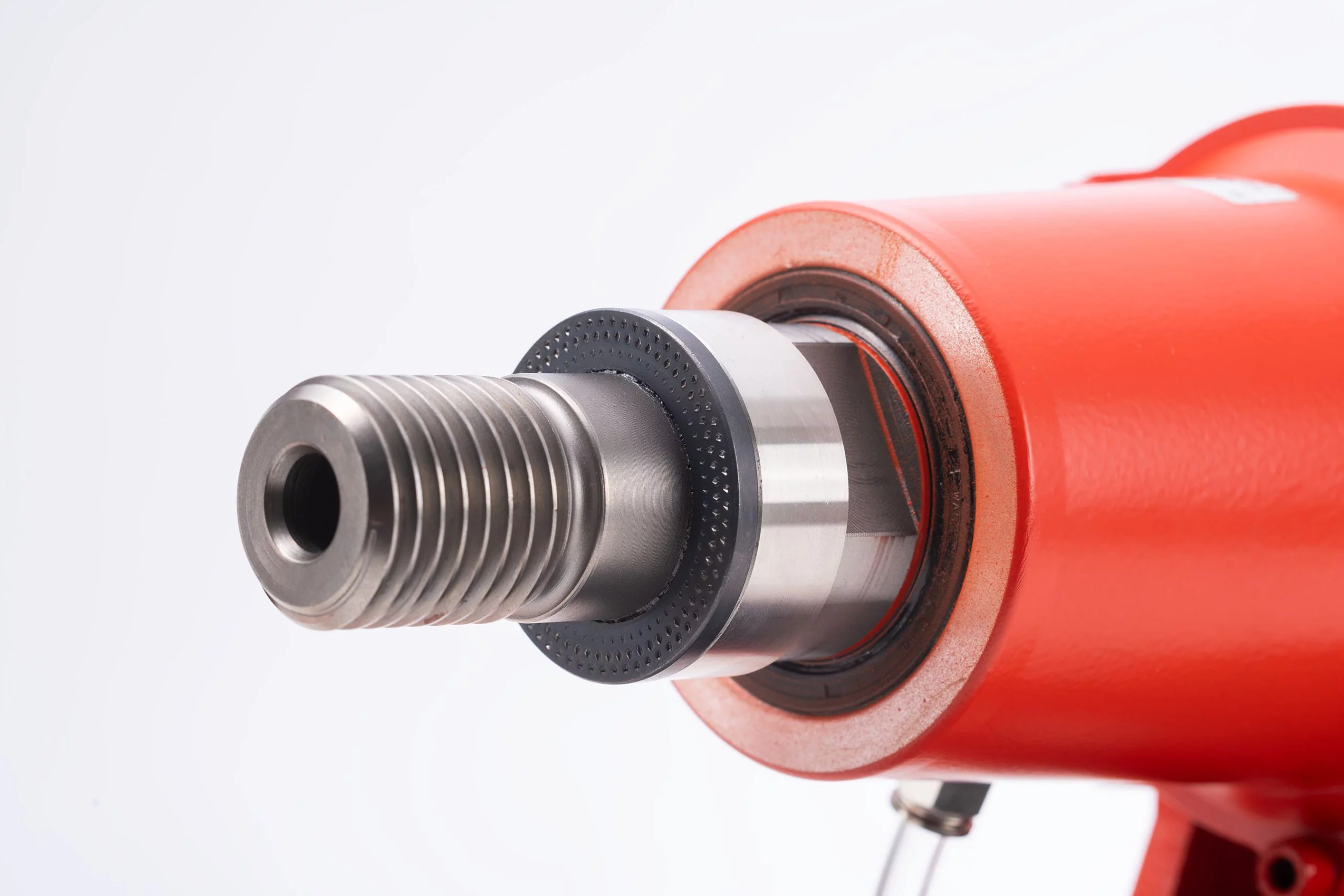

| Tool Fixture (Inch): | 1 1/4″ m33/3 |
| Foot Fastening: | 6 x M8 with Grove x 4.3 |
Questions?
Should you have any questions regarding the WEKA SR65, by all means, contact our fully trained staff for advice and assistance.
