Description

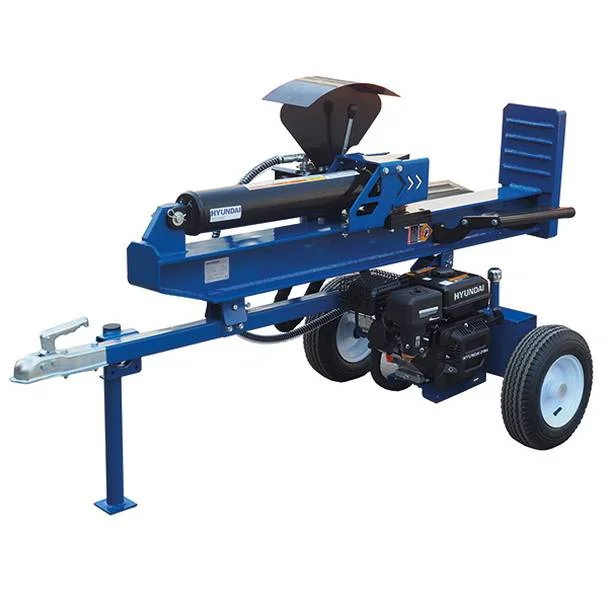

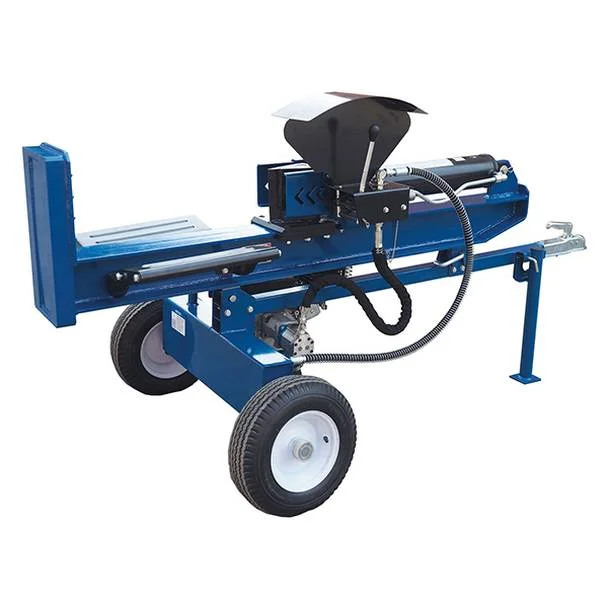

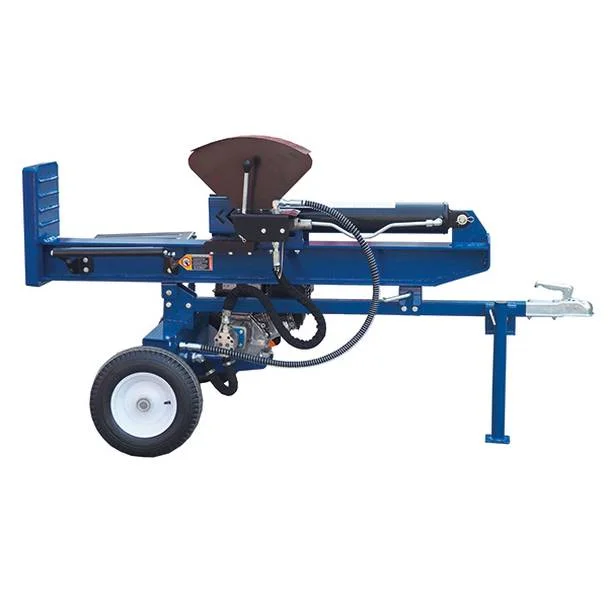

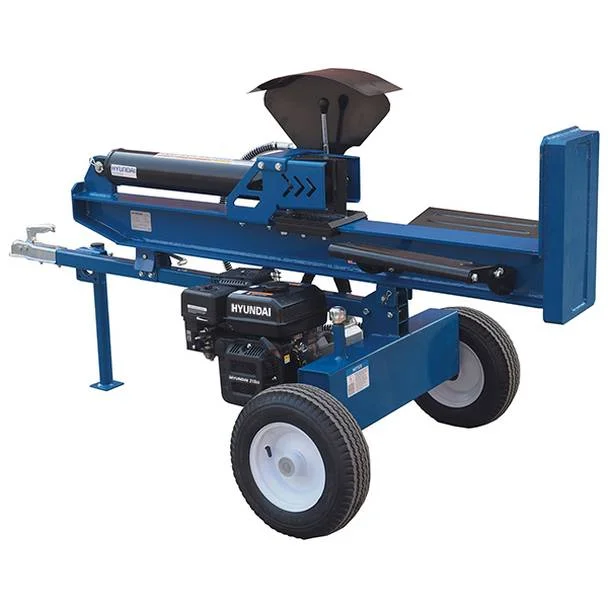

The Hyundai Petrol Horizontal and Vertical 25 Tonne Log Splitter HYLS25000T is an extremely powerful horizontal or vertical log splitter, providing 25 tonnes of splitting power.
It is ideal for consistent and accurate cutting and sizing of large volumes of logs. The HYLS25000T is powered by the reliable Hyundai 7hp IC210 4-Stroke petrol engine, driving via a wire wrapped hydraulic hose to the heavy duty 2-stage hydraulic pump, which is fed by a large hydraulic oil tank to provide maximum splitting power.
Hyundai Petrol Horizontal and Vertical 25 Tonne Log Splitter Features:
25-Tonne Splitting Force
With 25 tonnes of splitting force the HYLS25000T petrol log splitter, fitted with heavy duty log catcher trays, makes easy work of the toughest of seasoned softwood, hardwood and knotted logs.
Off-Road Tow
The HYLS25000T is easy to manoeuvre and can be easily hitched to an ATV for off-road tow thanks to its quick action 90 degrees swivel drawbar stand, 50mm ball hitch and pneumatic tyres ideal for ATV’s or garden tractors. (This machine is not designed for on-road towing).
Horizontal and Vertical Cutting
The horizontal design has the wood at working height for easy use, however, it can be used in the vertical position for heavy logs to be split at ground level. Moving the splitting function from horizontal to vertical is by means of a single quick release catch.
Improved Safety Features
Built with safety in mind, the HYLS25000T is fitted with a two-hand operation, which ensures your hands and arms are kept away from the splitting mechanism. The return stroke is controlled by the operator so only needs to be returned to the position required to fit the size of log being split.
What Comes in The Box?
- HYLS25000T Log Splitter
- User Manual
- Basic assembly is required*
Hyundai Petrol Horizontal and Vertical 25 Tonne Log Splitter HYLS25000T Specifications:
| Model: | HYLS25000T |
|---|---|
| Engine Model: | Hyundai IC210 |
| Engine Type: | Single cylinder |
| Max Log Diameter (mm): | 400 |
| Max Log Length (mm): | 520 |
| Starting Method: | Recoil |
| Splitting Force (Tonnes): | 25 |
| Hydraulic Oil Capacity (L): | 18 |
| Hydraulic Pressure (Mpa): | 27 |
| Dimensions (Lx W x H) (mm): | 2133 x 1010 x 1003 |
| Weight (kg): | 225 |
