Description

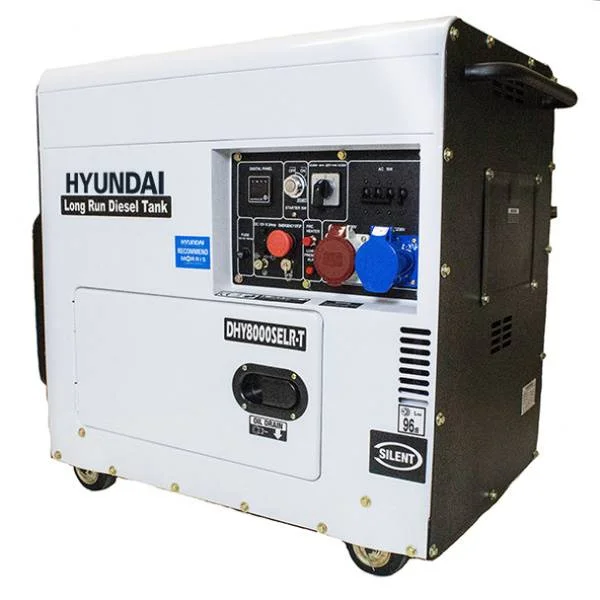

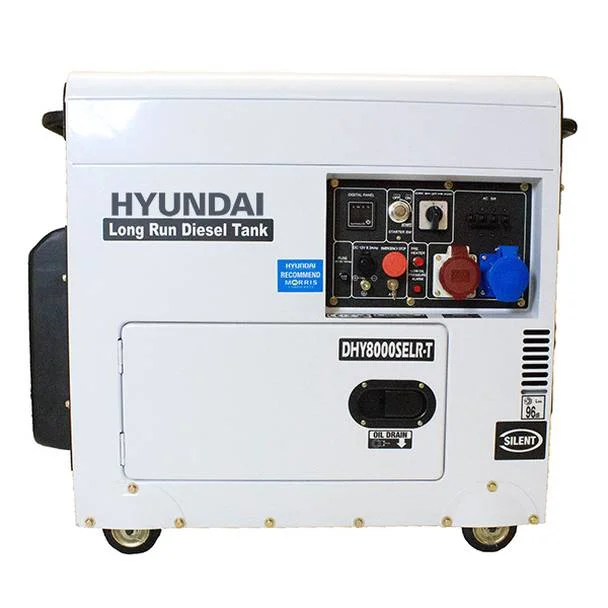

The Hyundai 6kW Multi-Phase Long Run Standby Diesel Generator is a powerful and compact long-run standby generator offering either switchable 230v single-phase or 400v three-phase voltages. The DHY8000SELR-T is ideal for workshops, garages and home use.

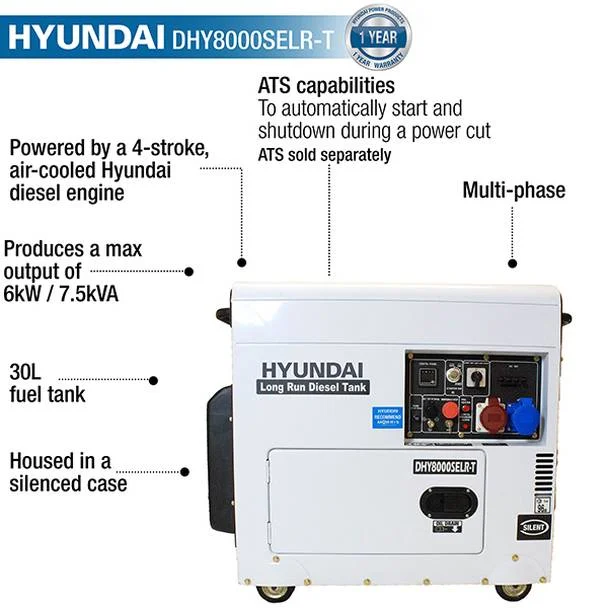

Hyundai 6kW Multi-Phase Standby Diesel Generator Features:
Large Fuel Tank

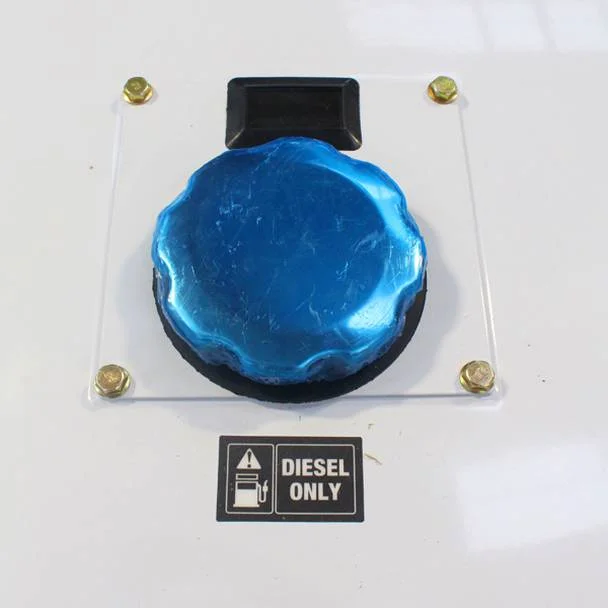

The large 30L fuel tank increases running time to a maximum of 30 hours.
The engine is powered by a 4-stroke, air-cooled 456cc single cylinder Hyundai diesel engine, and as a result has a maximum output of 6kW / 7.5kVA.
Control Panel

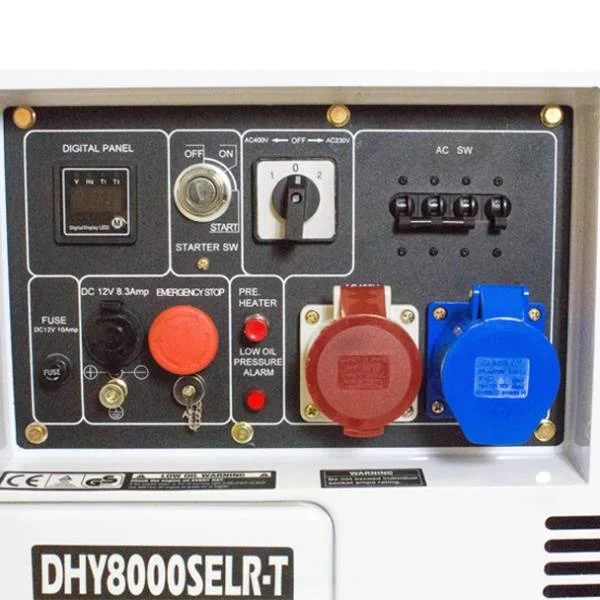

The control panel features 1 x 32A 230v single phase socket and 1 x 16A 400v three phase socket plus a 12v DC battery charging outlet.
Automatic Transfer Switch
The 6kW Hyundai diesel standby generator is compatible with an optional Automatic Transfer Switch (ATS). An ATS can sense a power cut and automatically start the generator even when you’re not around to manually start it. Once power has been restored, the ATS will again, automatically switch you back to mains power. Additionally, this generator features electric start, and can be started with a two wire start function, or a simple turn of the key if manual start/stop is required.
Silent Running
Housed in silenced casing, the DHY8000SELR-T generator is an extremely quiet machine and will keep disturbance to a minimum for you, your family or your employees when powering your building. With a sound rating of 70dB @ 7 metres.
Economical
The 6kW Multi-Phase Diesel Generator is economical to run, using roughly 1L of diesel every hour. Since the DHY8000SELR-T can run on red diesel, which is significantly cheaper than the white diesel you put into your car, running costs can be kept to a minimum.
What Comes in The Box?
- Main Unit, 3 Spanners
- Screwdriver
- 12v DC Charging Cable
- 2 Manual Start Keys
- Fuel Filter
- 1 x 16A 3-phase plug
- 1 x 32A 230v plug
Hyundai 6kW Multi-Phase Standby Diesel Generator Specifications:
| Model: | DHY8000SELR-T |
|---|---|
| Power Output (hp): | 12 |
| Engine Displacement (CC): | 452 |
| Rated/Prime kVA*: | 6.9 |
| Rated/Prime kW: | 5.5 |
| Max/Standby kVA*: | 7.5 |
| Max/Standby kW: | 6 |
| Phase: | Single / 3-Phase |
| Voltage (v): | 230 / 415 |
| Rated Speed (RPM): | 3000 |
| Frequency (Hz): | 50 |
| Power Factor (Cosφ): | 1 (Single Phase) / 0.8 (3-Phase) |
| Fuel Type: | Diesel |
| Power Output (hp): | 12 |
| Recommended Oil Type: | 15w40 / 10w40 |
| Oil Capacity (Litres): | 1.75 |
| Fuel Regulation/Governor System: | Mechanical |
| Cooling: | Forced Air-Cooled |
| Alternator Model: | D400-S01-4 |
| Voltage Regulation: | AVR |
| Battery (Ah): | 12v 36a/h |
| ATS / MTS Compatible: | Yes |
| Wheel Kit?: | Yes |
| Net Weight (kg): | 156 |
| Gross Weight (kg): | 170 |
| Dimensions L x W x H (mm): | 960 x 560 x 890 |
Questions?
If you have any questions regarding the Hyundai 6kW Multi-Phase Standby Diesel Generator, contact us and our experienced staff will be happy to answer any questions you have.
Reviews
There are no reviews yet.
