Description
The Hyundai 5.2kW Single Phase Diesel Backup Generator is one of the most popular sub 10kW standby generators available on today’s market. If you need reliable, clean power to protect your business or home from blackouts then this is the generator to choose. The compact size, clean power output and low noise make it a reliable source of backup electrical power, and is even portable enough for fieldwork.
Hyundai 5.2kW Single Phase Diesel Backup Generator Features:
Reliable Power
The DHY6000SE is powered by Hyundai’s efficient, low emission, 4 stroke D420 10hp engine and produces 5.2kW of clean power to your home or business.

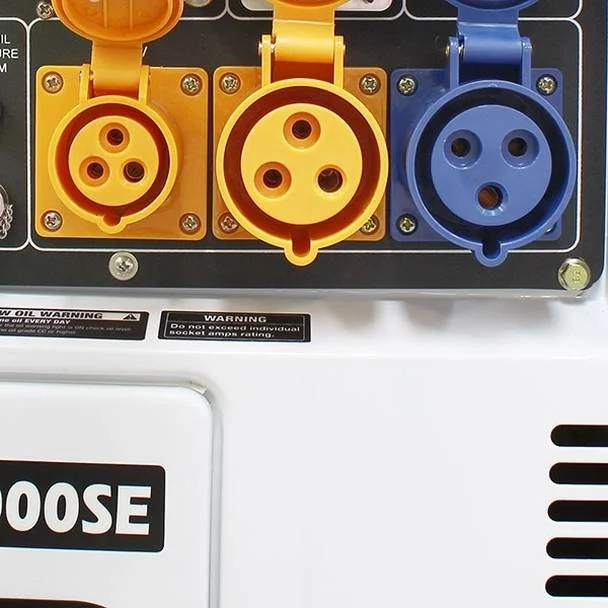

The generator has 1 x 115V 16amp, 1x 115V 32amp and 1 x 230V 32amp sockets, allowing you to power a wide range of equipment.
It also benefits from a sophisticated AVR alternator and supports a large 16-litre fuel tank can provide up to 16 hours of run time @ 50% load and the DHY6000 has the ability to run on red diesel making it even more cost-effective.
Automatic Transfer Switch
The 5.2kW Hyundai diesel backup generator is compatible with an optional Automatic Transfer Switch (ATS). An ATS can sense a power cut and automatically start the generator even when you’re not around to manually start it. Once power has been restored, the ATS will again, automatically switch you back to mains power.
Ease of Use

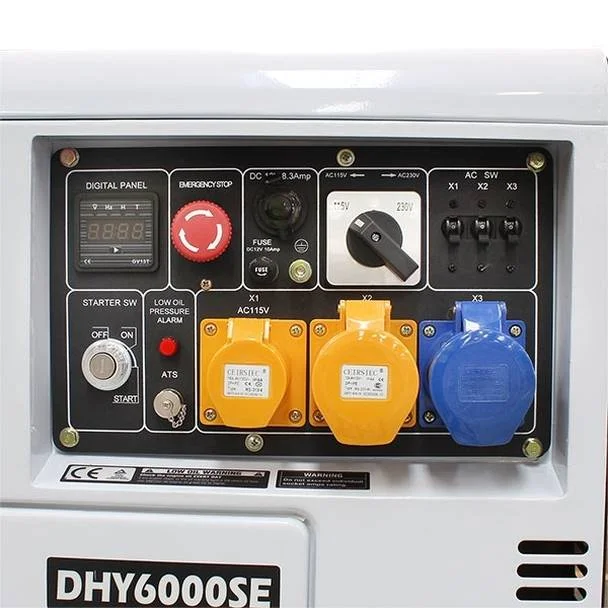

The DHY6000SE engine features an electric start and a convenient digital control panel which is able to display frequency, voltage as well as total run time. A built-in low oil alarm and automatic shutdown keeps the generator safe during operation and ensures that the engine is protected at all times.
Silent Operation
The DHY6000SE is a quiet generator that reduces overall noise levels by using an attenuated sound canopy. This makes it perfect for use in domestic or low noise areas, and has large hinged access panels which make routine maintenance much easier than usual! The wheels also enhance portability so you can easily move the unit around if needed.
What Comes in The Box?
- Hyundai DHY6000SE Generator
- User Manual
Hyundai 5.2kW Diesel Standby Backup Generator Specifications:
| Model: | DHY6000SE |
|---|---|
| Hyundai Diesel Engine Model: | D400E |
| Power Output (hp): | 10 |
| Engine Displacement (CC): | 418 |
| Rated/Prime kVA*: | 5.6 |
| Rated/Prime kW: | 4.5 |
| Max/Standby kVA*: | 6 |
| Max/Standby kW: | 5.2 |
| Phase: | Single |
| Voltage (v): | 110 / 230 |
| Connection Method(s): | Sockets – 1 x 115V/16A, 1 x 115V/32A, 1 x 230V/32A |
| Rated Speed (RPM): | 3000 |
| Frequency (Hz): | 50 |
| Max/Continuous Current (Amps): | 22.60869565 |
| Power Factor (Cosφ): | 1 |
| Fuel Type: | Diesel |
| Fuel Tank (Litres): | 16 |
| No. of Cylinders: | 1 |
| Recommended Oil Type: | 15w40 / 10w40 |
| Oil Capacity (Litres): | 1.75 |
| Fuel Regulation/Governor System: | Mechanical |
| Cooling: | Forced Air-Cooled |
| Alternator Model: | D400-SO1-4 |
| Voltage Regulation: | AVR |
| Wheel Kit?: | Yes |
| Battery (Ah): | 12v 36a/h |
| ATS / MTS Compatible: | Yes |
| Net Weight (kg): | 152 |
| Gross Weight (kg): | 164 |
| Noise Level @ 1m 75% load (dB): | 96 |
| Noise Level @ 7m 75% load (dB): | 70 |
| Dimensions L x W x H (mm): | 930 x 530 x 720 |
Questions?
If you have any questions regarding the Hyundai 5.2kW Single Phase Diesel Backup Generator, feel free to contact us and our trained staff will answer any questions you have.
