Description

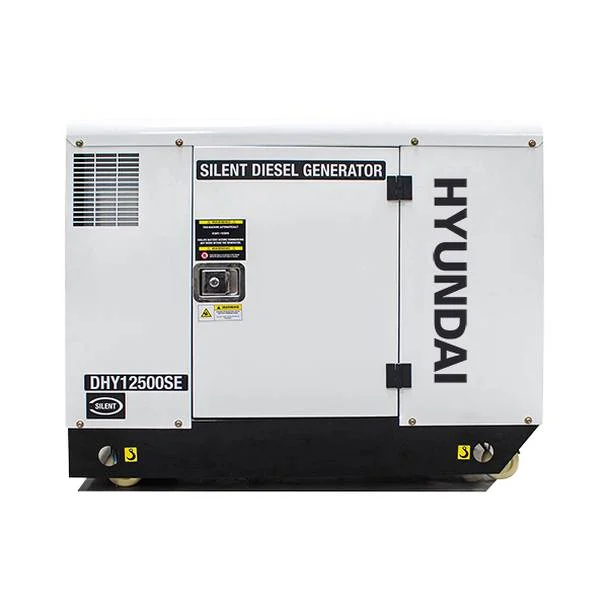

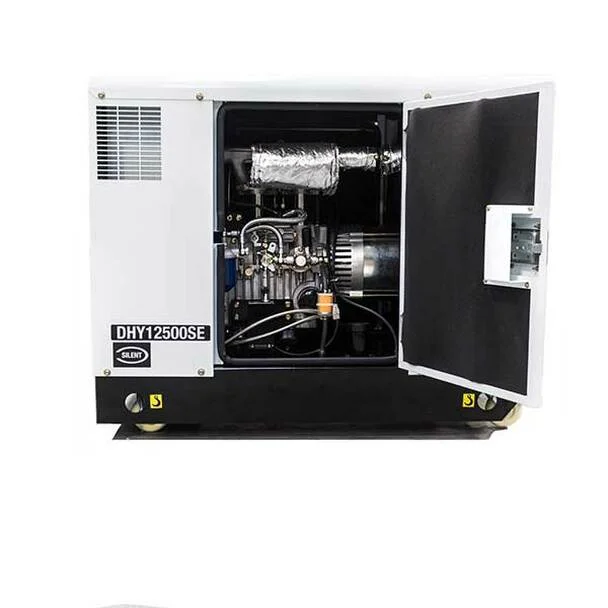

The Hyundai 10kW Mains Standby Diesel Generator is a great choice for home or business use, as it operates quietly within an enclosure that reduces outside noise levels. Powered by a twin-cylinder air-cooled engine, this generator is also very efficient and reliable.
Hyundai 10kW Mains Standby Diesel Generator Features:

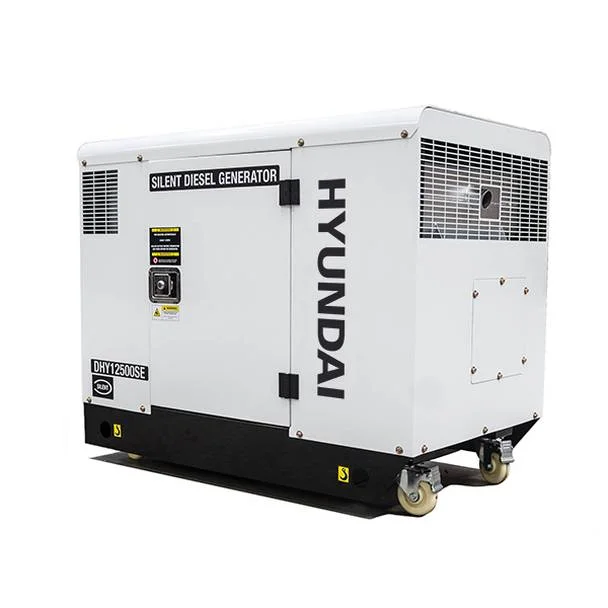

Easy to Transport
The generator is mounted on 4 wheels (2 steering wheels with brakes, and 2 fixed wheels) to ensure it is easily movable on flat surfaces.

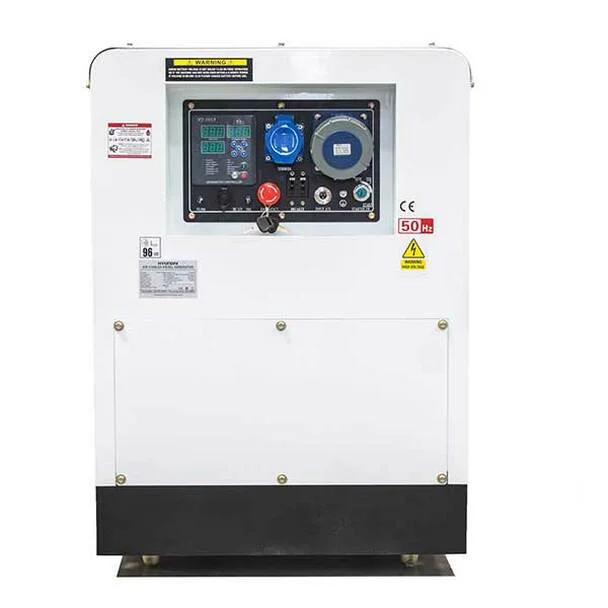

Control Panel
The control panel features a digital display, providing information on volts, running hours and frequency. Additionally, the control panel includes 32A and 63amp sockets at 230v mains voltage, an emergency stop button, overload breakers, ATS/2-wire socket and a 12v DC output.
Steady & Safe Power
The ARV alternator provides a smooth 230v mains power output and the high torque diesel engine ensures maximum economy and low emissions with minimum fluctuation in rpm when heavy loads are applied.
Extended Run Time
The large 60 litre mounted fuel tank can provide up to 18 hours run time under ¼ load. With key start, two wire start and ATS options, it is the perfect generator for a large home or small business standby in the event of a power outage.
Hyundai 10kW Mains Diesel Generator Specifications:
| Engine Type: | Twin cylinder forced air-cooled |
|---|---|
| Fuel Type: | Diesel |
| Max kVA: | 12.5 |
| Max kW: | 10 |
| Phase: | single phase 230v |
| Engine Air Intake (Cubic meters/min): | 1.2 |
| Air Cooling Flow Rate (Cubic meters/min): | 10.5 |
| ATS Port?: | Yes |
| Connection Method (VAC/a): | 1 x 32A |
| Fuel Tank (L): | 60 |
| Speed (RPM): | 3000 |
| Starting System Method(s): | 12v key start |
| Voltage(s) – VAC: | 230v |
| Noise Level db (A) @ 7m: | 65 to 70db |
| Machine Dimensions L x W x H (mm): | 1175 x 695 x 1050 |
| Net Weight (kg): | 295 |
| Wheel Kit? | 4 Wheels with brake |
Questions?
If you have any questions regarding the Hyundai 10kW Standby Diesel Generator, feel free to contact us and our trained staff will answer any questions you have.
