Eibenstock EBW 1300 Mobile Drill Rig Trolley

Description

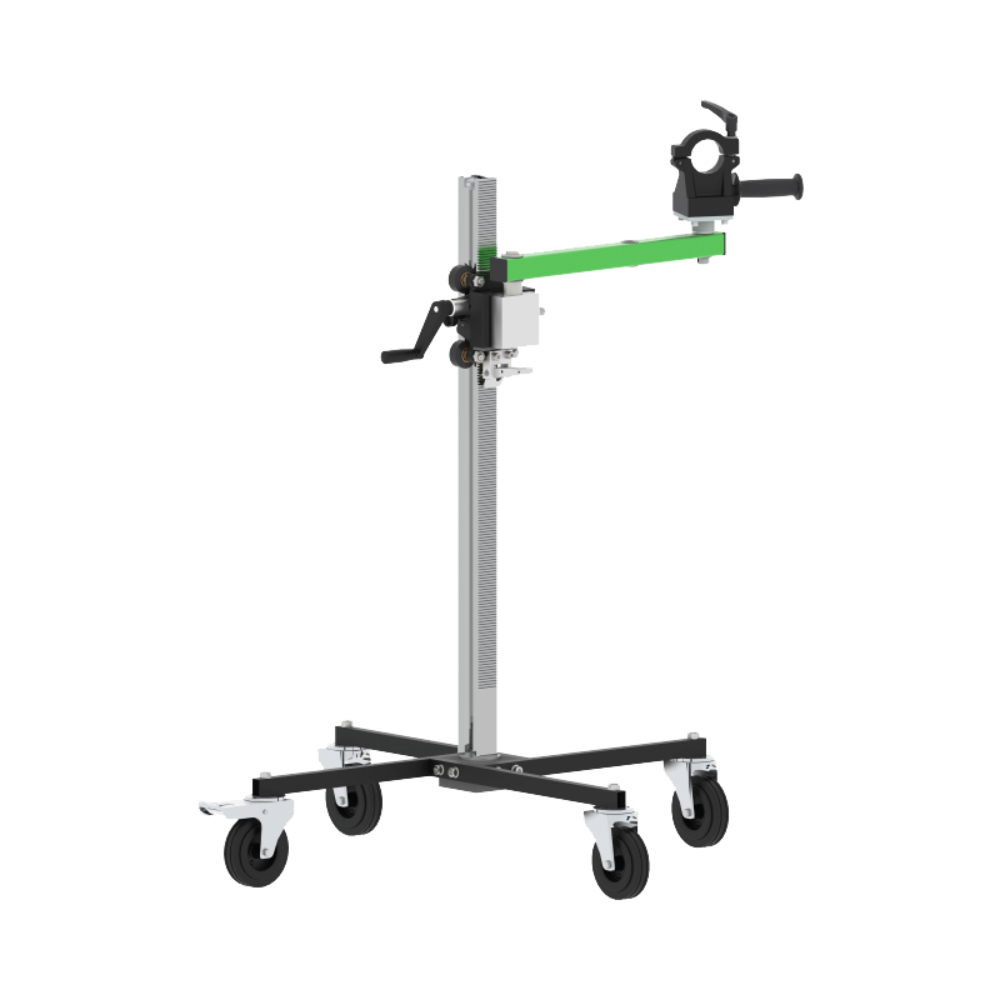

The Eibenstock EBW 1300 Mobile Drill Rig Trolley provides a safe, stable and mobile platform for professional diamond core drilling. Designed to reduce operator fatigue and speed up repetitive drilling work, it allows compatible handheld diamond drills to be securely clamped without permanently mounting a conventional drill rig to the working surface.

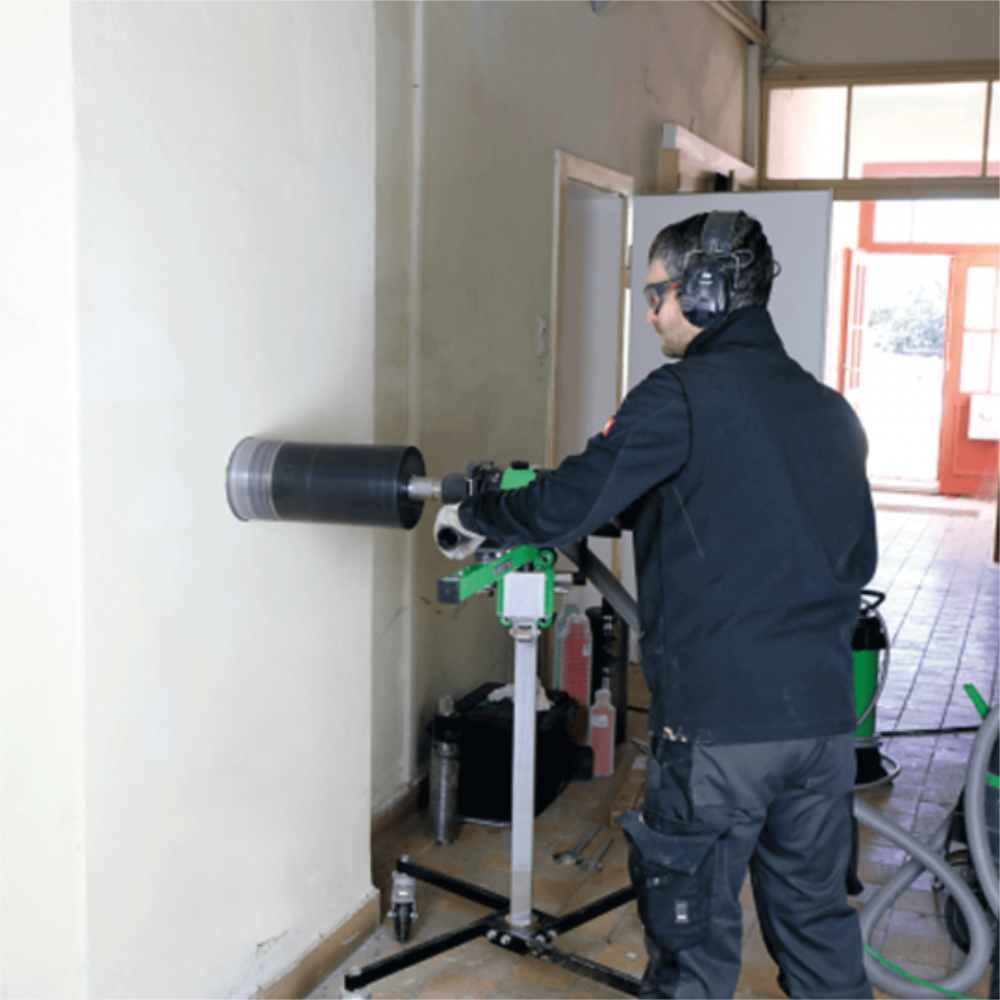

With an adjustable working height of 250–1300mm, the EBW 1300 is particularly useful for drilling a series of holes at a consistent height. An optional extension bar increases the working height to up to 2300mm, while the drill clamp can also be inverted for drilling at particularly low positions.

Key Features

• Professional mobile diamond drilling trolley
• Provides a stable platform for handheld diamond core drills
• Designed for fatigue-free drilling
• 60mm heavy-duty collar clamp
• Compatible with Eibenstock ETN, ESD and PLD handheld diamond core drills with 60mm collars
• Suitable for other manufacturers’ drills with a compatible 60mm clamping neck
• Adjustable working height from 250–1300mm

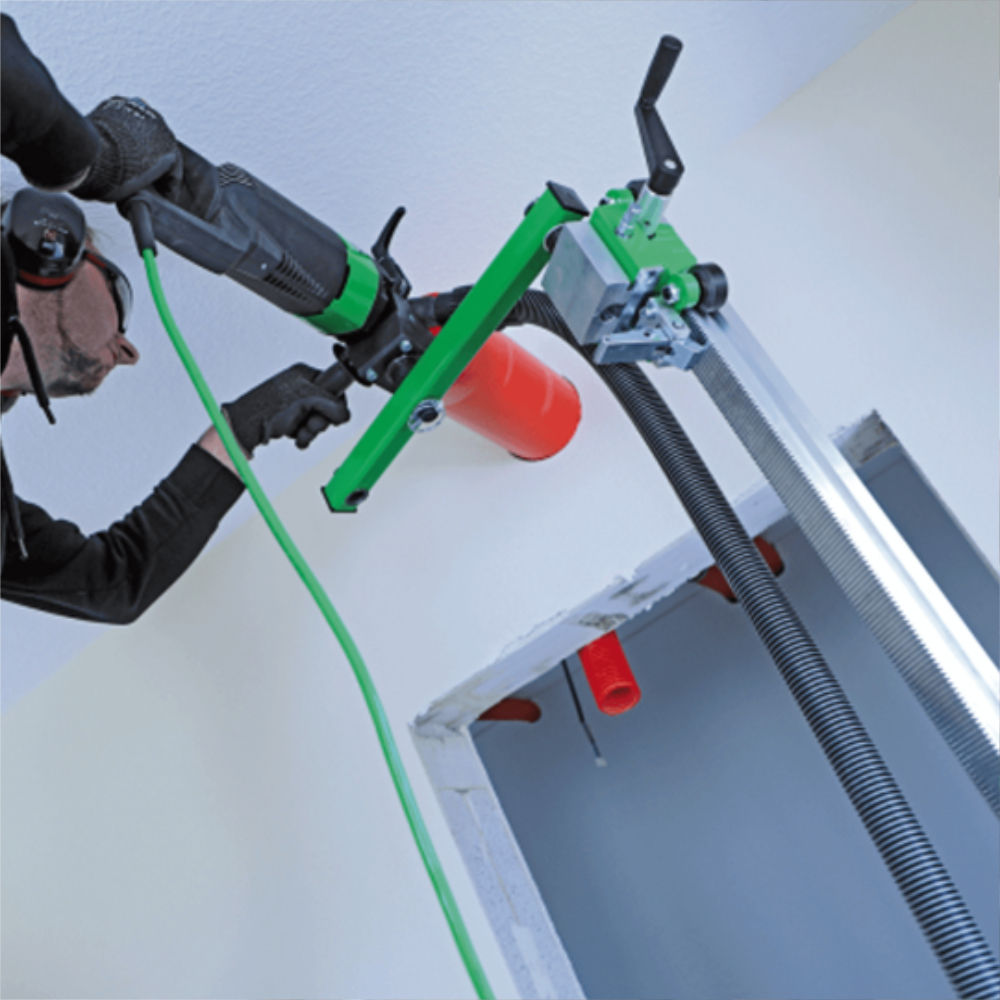

• Optional extension bar increases working height to 2300mm

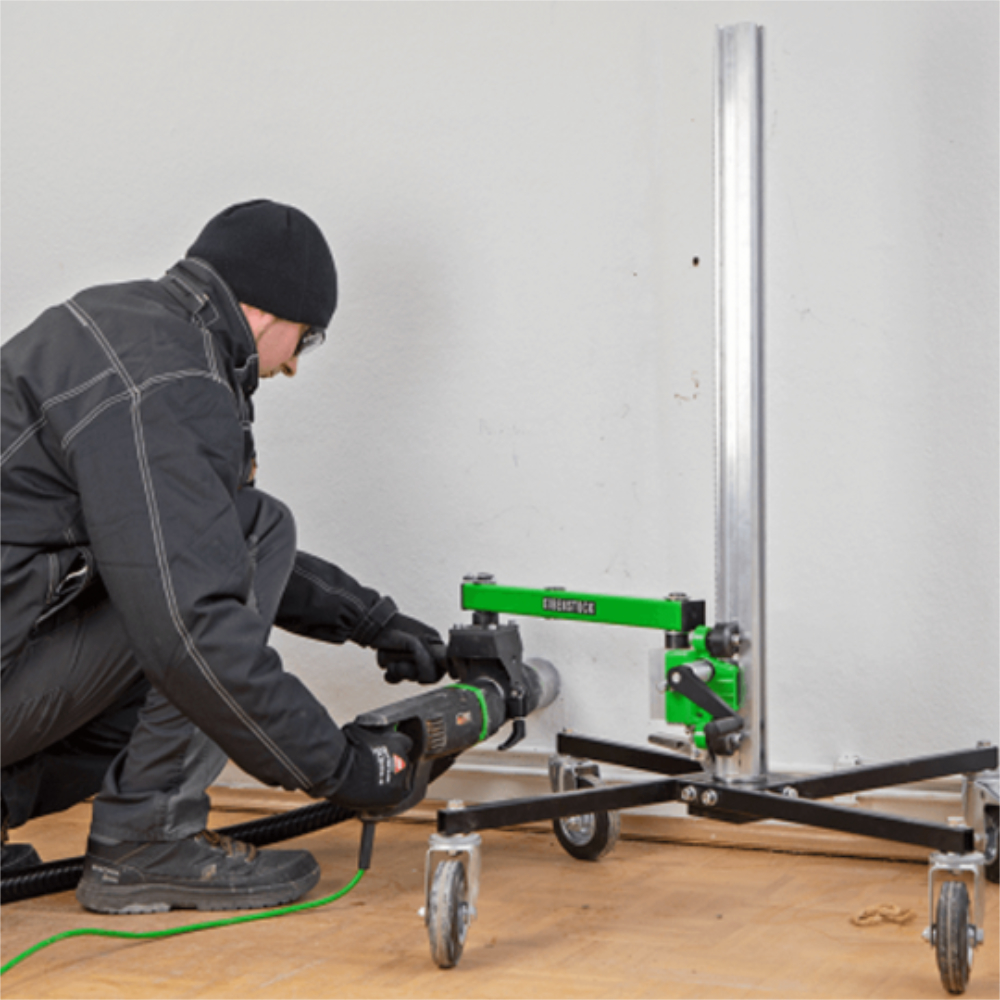

• Clamp can be inverted for low-level drilling
• Ideal for repetitive drilling at a consistent height
• Crank-fed height adjustment
• Mechanical lockout for controlled lowering
• Slim-line trolley wheels for mobility
• Compact design for easier transportation
• Quick setup and dismantling
• No drilling or assembly damage to the wall from mounting a conventional drill rig
• Provides additional stability if a core bit binds during operation
